4 Rockwell Automation Publication 750-IN105D-EN-P - June 2018
PowerFlex 750-Series Service Cart and DC Precharge Module Lift
Required Tools

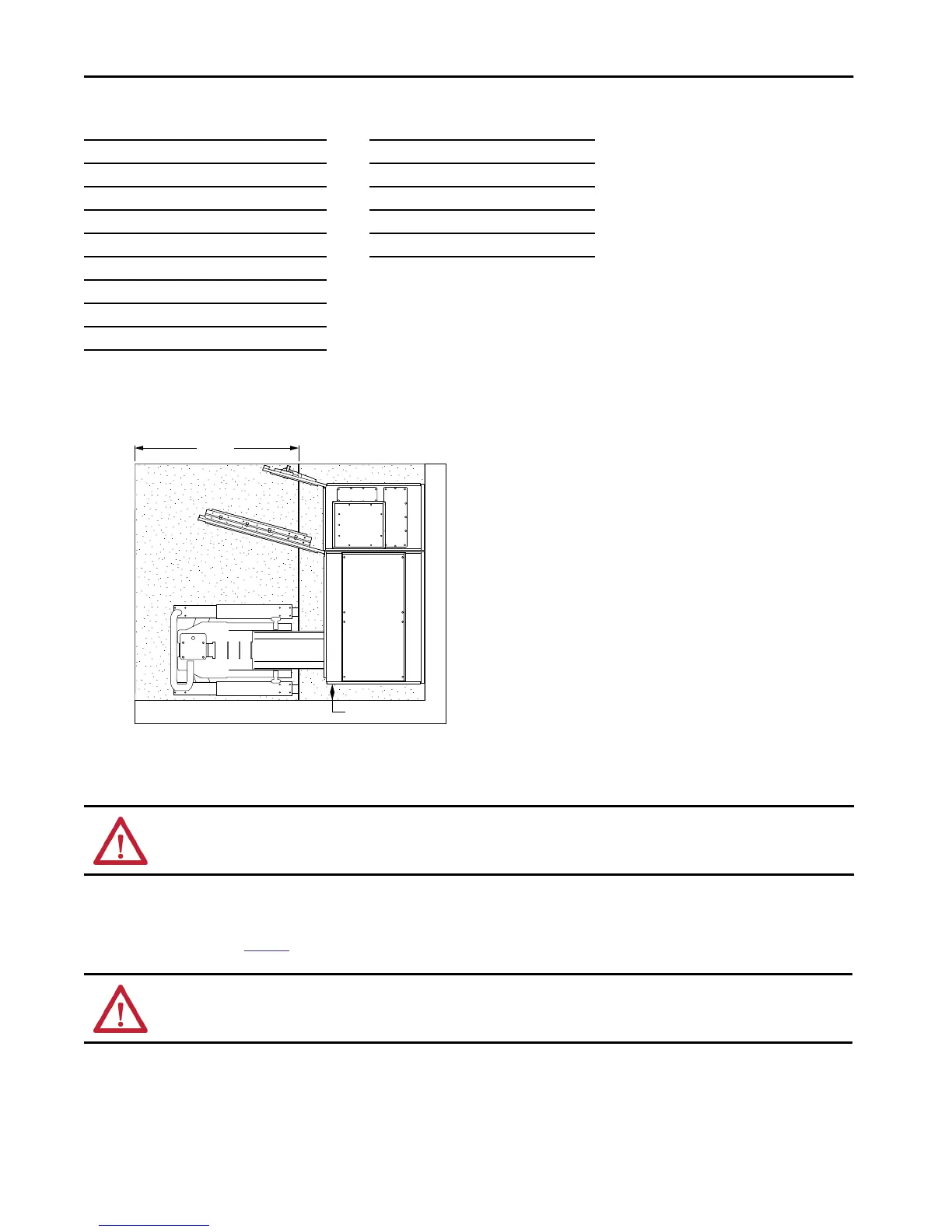

Aisle Clearance
The minimum aisle clearance that is required to maneuver and position the service cart is 914 mm (36 in.).
Setup the Service Cart
Remove all packaging from the service cart.
Required Tools for the Service Cart and DCPC Lift Recommended Tools
Electric drill with a torque rating of 11.3 N•m (100 lb•in), min Masking tape
15 mm ratcheting wrench Bubble level
19 mm wrench Pencil and paper
T30 bit Pliers
T25 bit
T45 bit
15 mm socket
25 mm socket
ATTENTION: Avoid personal injury, do not remove or disable the touch guards. Pinch points exist between the movable parts of the service cart. Review all
product labels and familiarize yourself with the potential pinch point hazards before you operate the service cart.
TIP If you plan to use the frames 8…10 conversion kit, see the PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit Installation Instructions,
publication
750-IN017 for information to configure and install the optional frames 8…10 conversion kit.
ATTENTION: The PowerFlex 750-Series service cart (20-750-MCART1) weighs approximately 60 kg (133 lb) and requires two persons to lift.
914 mm
(36 in.)
152 mm
(6 in.)
Top View
To Next Page
