Allen-Bradley PowerFlex 750 Series Installation Instructions

Rockwell Automation Publication 750-IN105D-EN-P - June 2018 21
PowerFlex 750-Series Service Cart and DC Precharge Module Lift

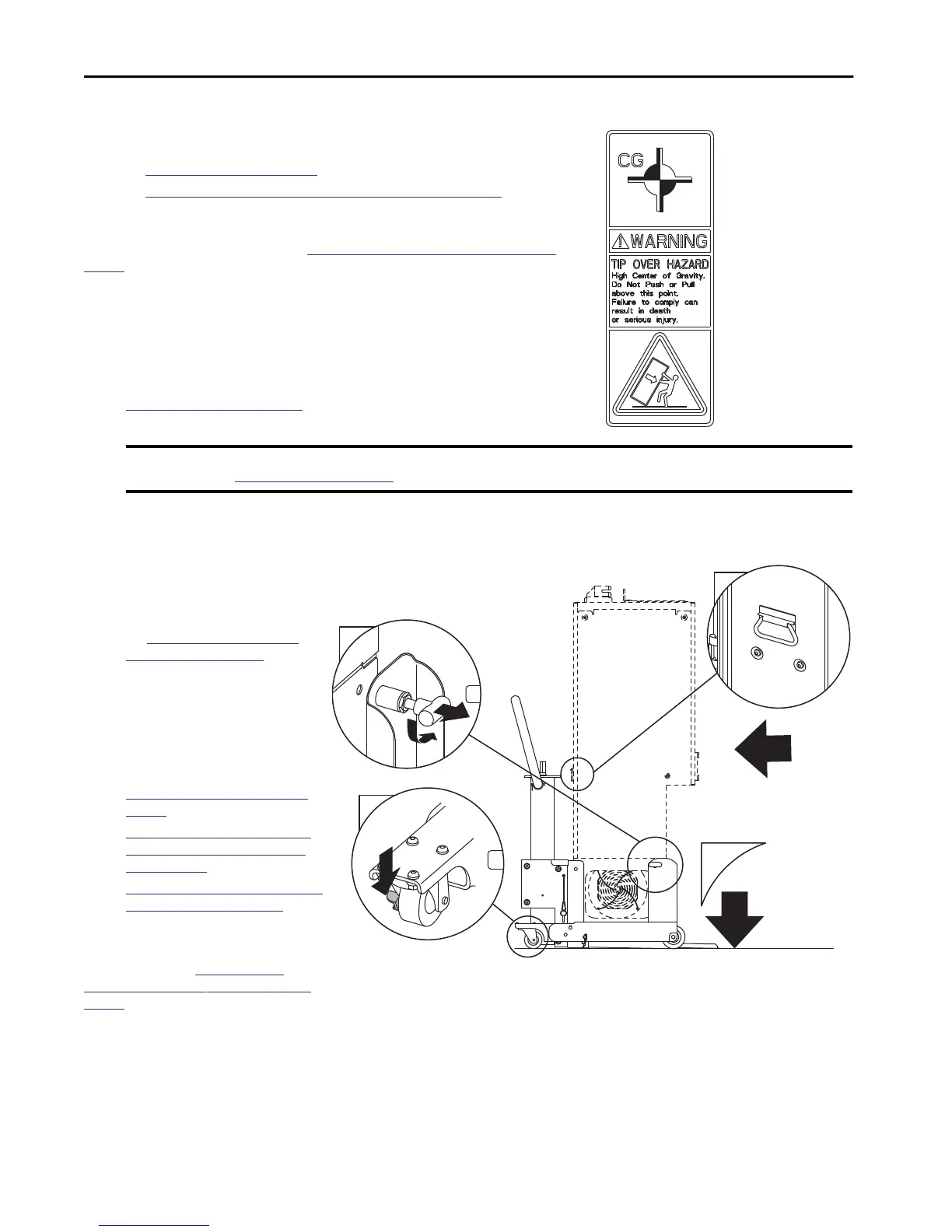

Load a Power Module Into the Service Cart
Review these sections before you start this procedure:
•
Setup the Service Cart on page 4
•
Move the Power Module and the DC Precharge Module on page 16
In situations where the service cart is prepared, follow these steps to load a power module into
the service cart. If the stabilization wings are attached, leave them attached until the power
module is secured into the service cart, see
Unload, Load, and Store the Power Module on
page 19 for more information.
1. Put the service cart caster brakes in the ON position.
2. Use the jackscrew and lower the service cart to floor level.
3. To install the power module into the cabinet, set the bridge span to the appropriate
length.
For information on how to adjust the bridge span see
Adjust the Service Cart on page 7.
4. Use the handle on the power module and slowly pull the power module into the cart.
5. Lock the power module in place with the two anchor pins.
The power module is now loaded.
6. If stabilizer wings were attached,
remove the stabilization wings.
See
Unload, Load, and Store the
Power Module on page 19 for more
information.
For configurations that include a DC
precharge module, complete these sections
before you transport or dock the service
cart to the cabinet:
•
Install the DCPC Module Lift on
page 14
•
Unload or Load the DC Precharge
Module from the DCPC Module
Lift on page 18
•
Move the Power Module and the DC
Precharge Module on page 16
For all configurations, follow the
recommendations to
Move the Power
Module and the DC Precharge Module on
page 16 to transport the power module to the installation location.
IMPORTANT The bridge span cannot be adjusted after the power module is loaded and secured in the service cart. Check the notes that were taken during
Remove the Power Module on page 8 for the length of the bridge span.
This label, affixed to the
module chassis, identifies
the center of gravity.
2x
2x
2
4
5
1
