PowerFlex 750-Series Service Cart and DC Precharge Module Lift
b. Refer to these images for configurations that contain a DC precharge module.
.
5. Conduct a Safety Check before Closing the Cabinet on page 28 before closing the cabinet doors.
Conduct a Safety Check before Closing the Cabinet
Before closing the cabinet, complete these safety items:
• Verify that all wire harness connections are mated and secure.
• Remove all tools.
• Remove all debris (lost screws, bolts, paper, or other debris).
• Safety guards are properly installed and properly torqued.
• All hardware is torqued to the appropriate specifications.
• The company or local area pre-powerup checklist and standards are completed.
IMPORTANT The screws on the safety shields must be tightened to their torque requirement to securely close the cabinet door.

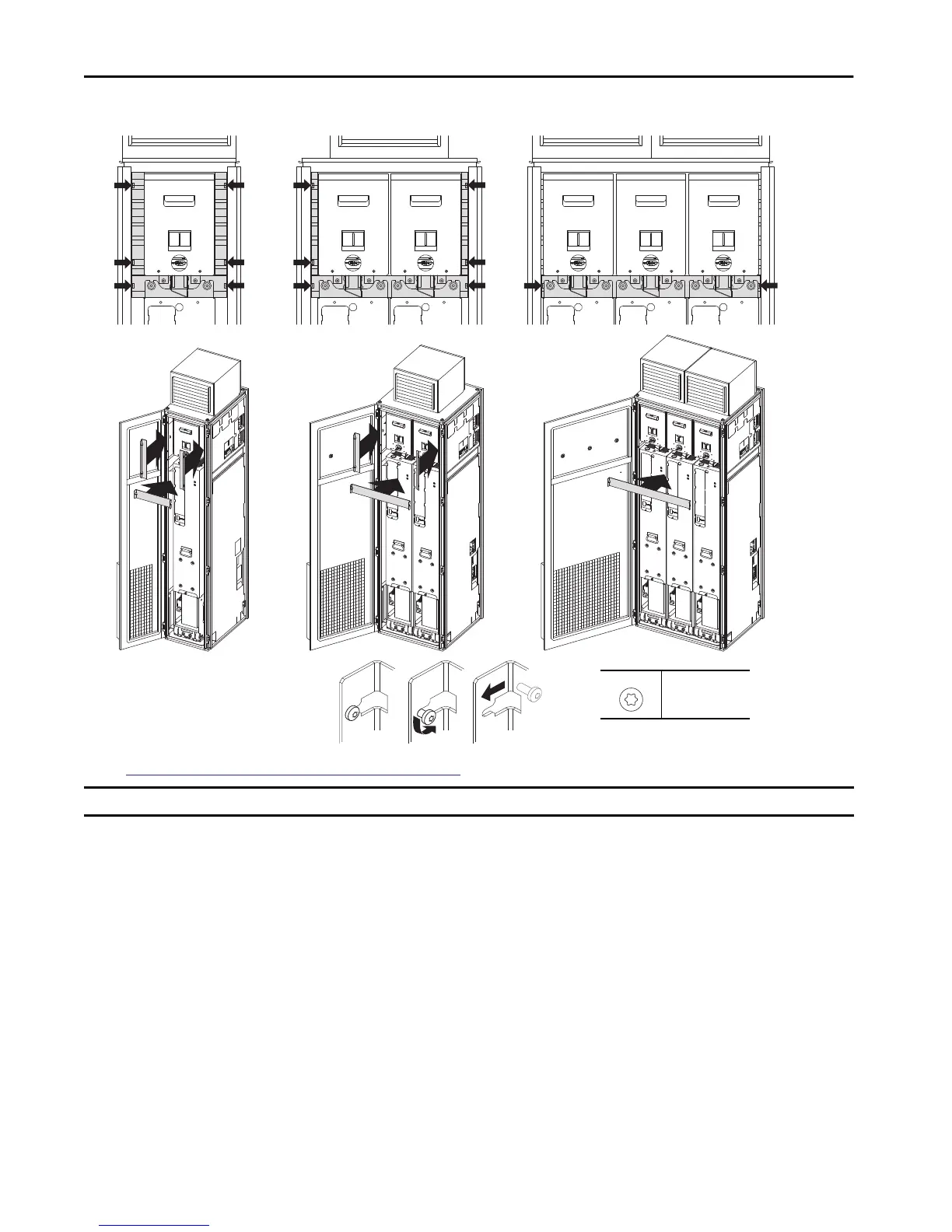

400 mm (15.7 in.)
Configuration
600 mm (23.6 in.)
Configuration
800 mm (31.5 in.)
Configuration
Example of safety guard flanges:
M5.5
T25
4.8 N•m (23 lb•in)
