PowerFlex 755 On-Machine Packaged Drive 7

Rockwell Automation Publication 750-PC004B-EN-P - April 2019

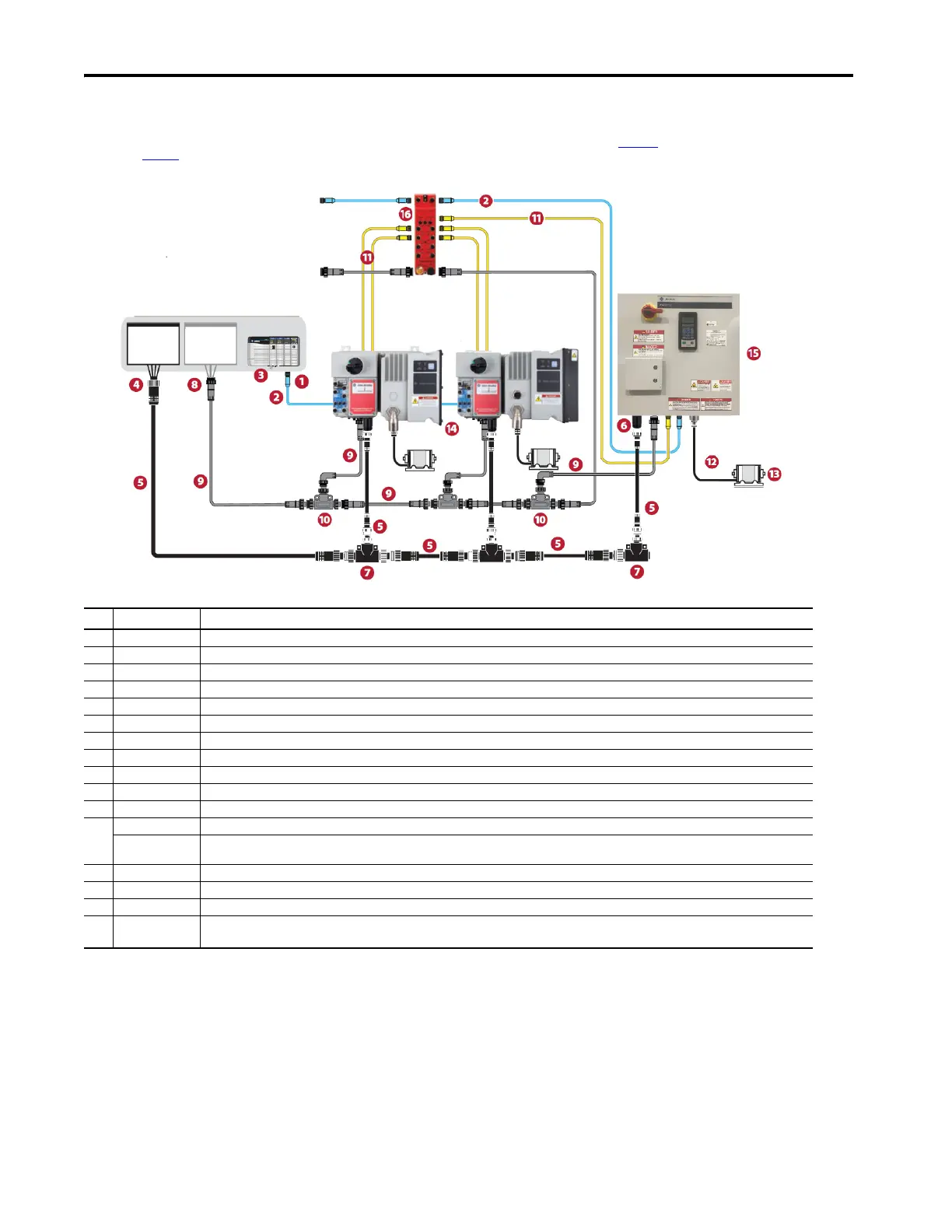

System Configuration Example

This section shows an example configuration of the On-Machine Packaged Drive installed with an existing ArmorStart controller that is a hardware-based safety solution. The diagram shows the recommended cables and connectors

for one example configuration. For more information on other available configurations, see PowerFlex 755 On-Machine Packaged Drive User Manual, publication 750-UM006

, or PowerFlex 755 On-Machine Packaged Drive Technical

Data, publication 750-TD003

On-Machine Packaged Drive with ArmorStart Power and Control Terminals

No.

Example Cat. No.

(1)

(1) The (*) used in the example catalog numbers, represents variations.

Description

1 1585A-* CAT5e Bulkhead Connector and Receptacle

2 1585D-* CAT5e Patchcord, IP67, M12 D-Code

3 1585J-* CAT5e, Patch Cable, IP20, RJ45 to RJ45

4 280-M35F-* Three-Phase Power Receptacles - Female receptacles are a panel mount connector with flying leads

5 280-PWR35* Three-Phase Power Trunk-Patchcord cable with integral female or male connector on each end

6 280-M35M* Three-Phase Power Receptacles - Male receptacles are a panel mount connector with flying leads

7 280-T35 Three-Phase Power Tee connects to one M35 drop line to trunk connectors

8 888N-* Control Power Receptacles - Female/male receptacles are a panel mount connector with flying leads

9 889N-F4* Control/Auxiliary Power Media Patchcords – Patchcord cable with integral female or male connector on each end

10 898N-43PB-N4KT Control/Auxiliary Power Tees - The tee is used with cordset or patchcord to connect several Modified ArmorStart to the same control power source

11 889D-* Patch cable between Safety I/O module input and ArmorStart connector labeled ‘SM’ and ‘P/M’, this cable provides status and control feedback to the safety system
