Allen-Bradley PV900 User Manual

Publication 2711-UM014B-EN-P
Installing the PV900/1000 Terminals 10-3
PV1000 Terminals

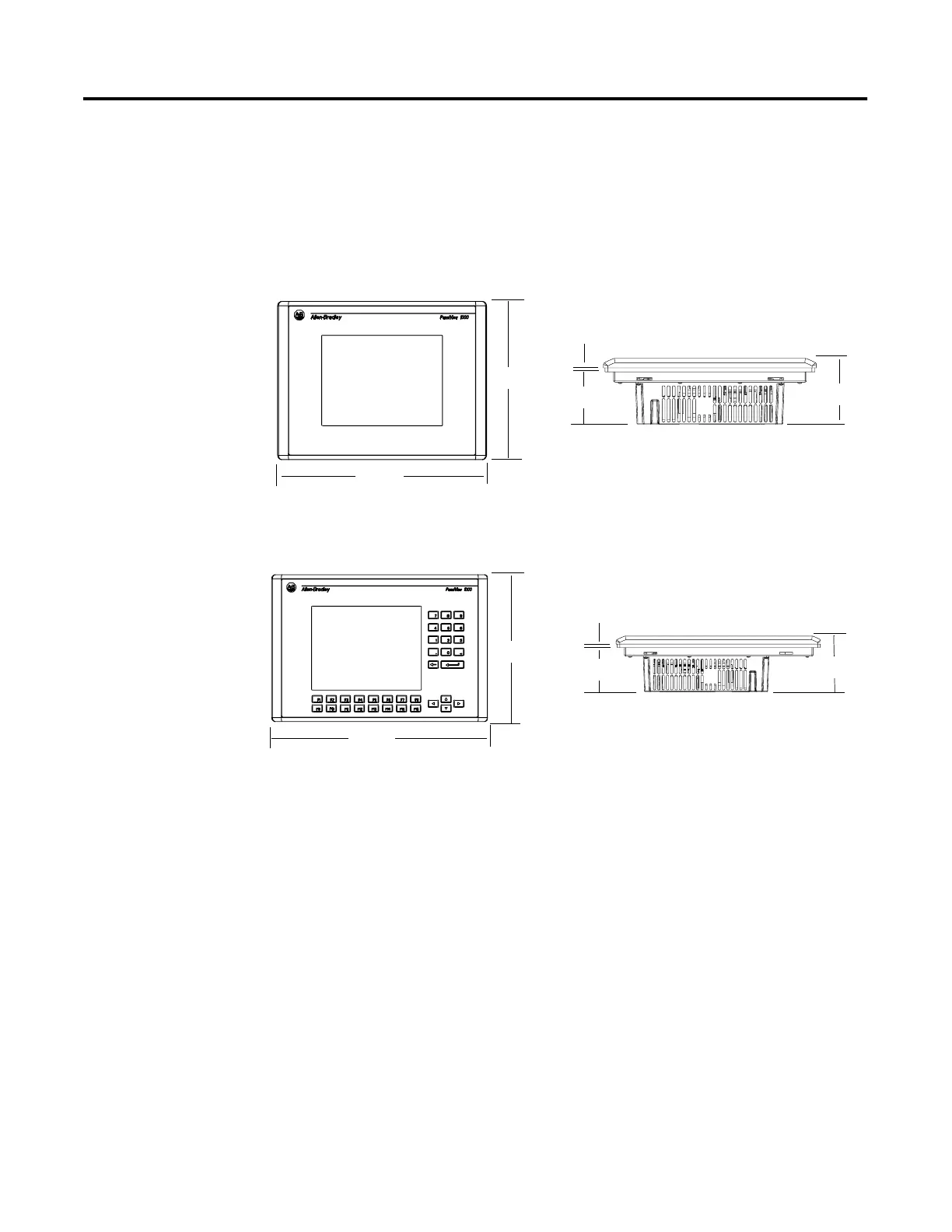

The illustrations below show the mounting dimensions for the PV1000
grayscale and color terminals.
PV1000 Touch Terminal Mounting Dimensions
PV1000 Keypad Terminal Mounting Dimensions
370 mm
(14.58 in)
282 mm
(11.11 in)
6.9 mm
(0.27 in)
90 mm
(3.54 in)
112 mm
(4.40 in)
Top View
423 mm
(16.64 in)
282 mm
(11.11 in)
112 mm
(4.40 in)
6.9 mm
(0.27 in)
90 mm
(3.54 in)
Top View
