Installing the PV300 Terminal 7-3
Mounting Dimensions

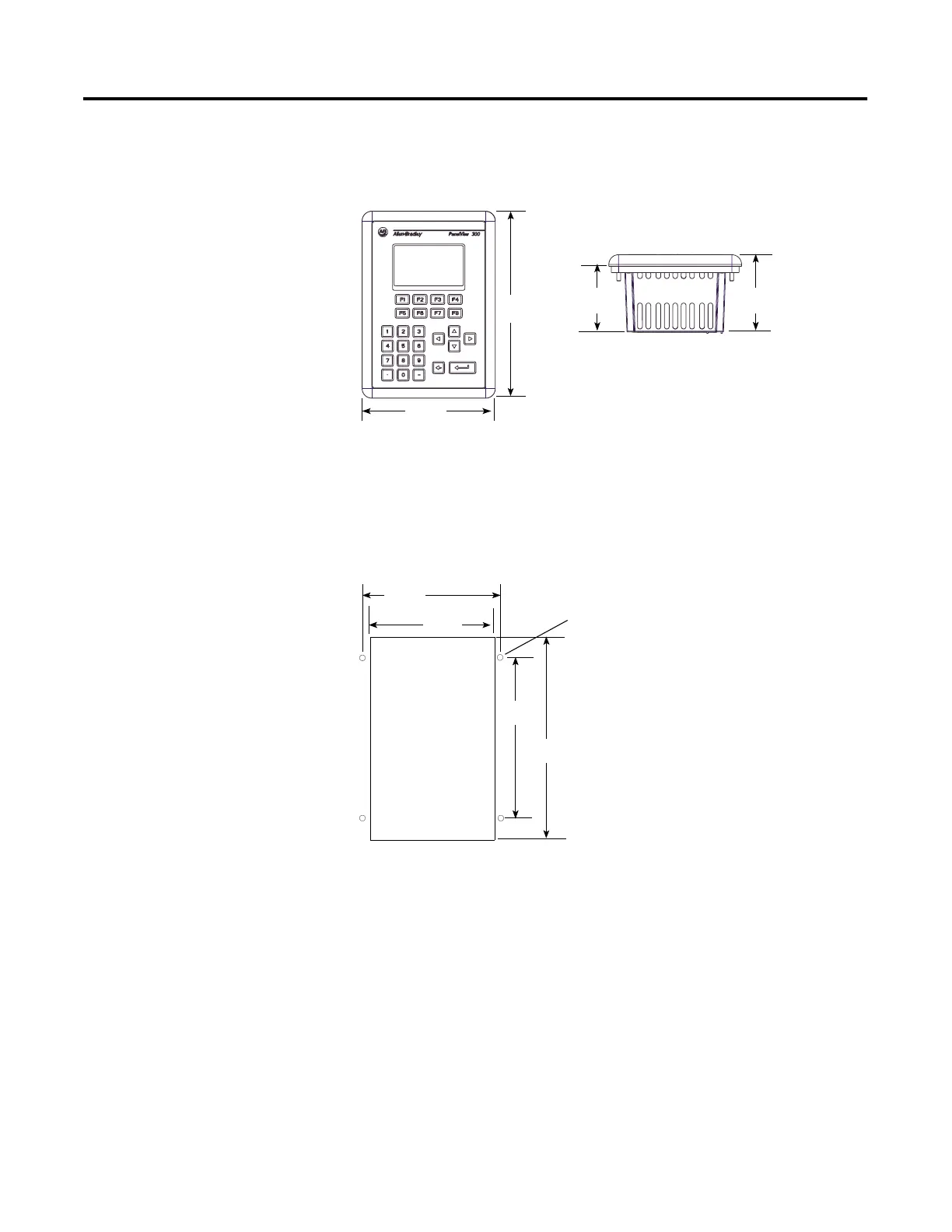

The illustration below shows mounting dimensions for the PV300
keypad terminals.
Cutout Dimensions
Use the full size template shipped with the PV300 terminal to mark
the cutout dimensions. Below is a reduce size cutout.
140 mm
(5.53 in)
197 mm
(7.76 in)
69mm
(2.73 in)
82 mm
(3.21 in)
Top View
R 4.5 am via
(0.178 in)
178 am
6.99 in)
140 am
5.53 in)
120 am
4.71 in)
109 mm
4.29 in)
Recommended Panel
Cutout Dimensions
