Allen + Roth TPPER2401A - Page 8

8
ASSEMBLY INSTRUCTIONS
B1B2
K
K

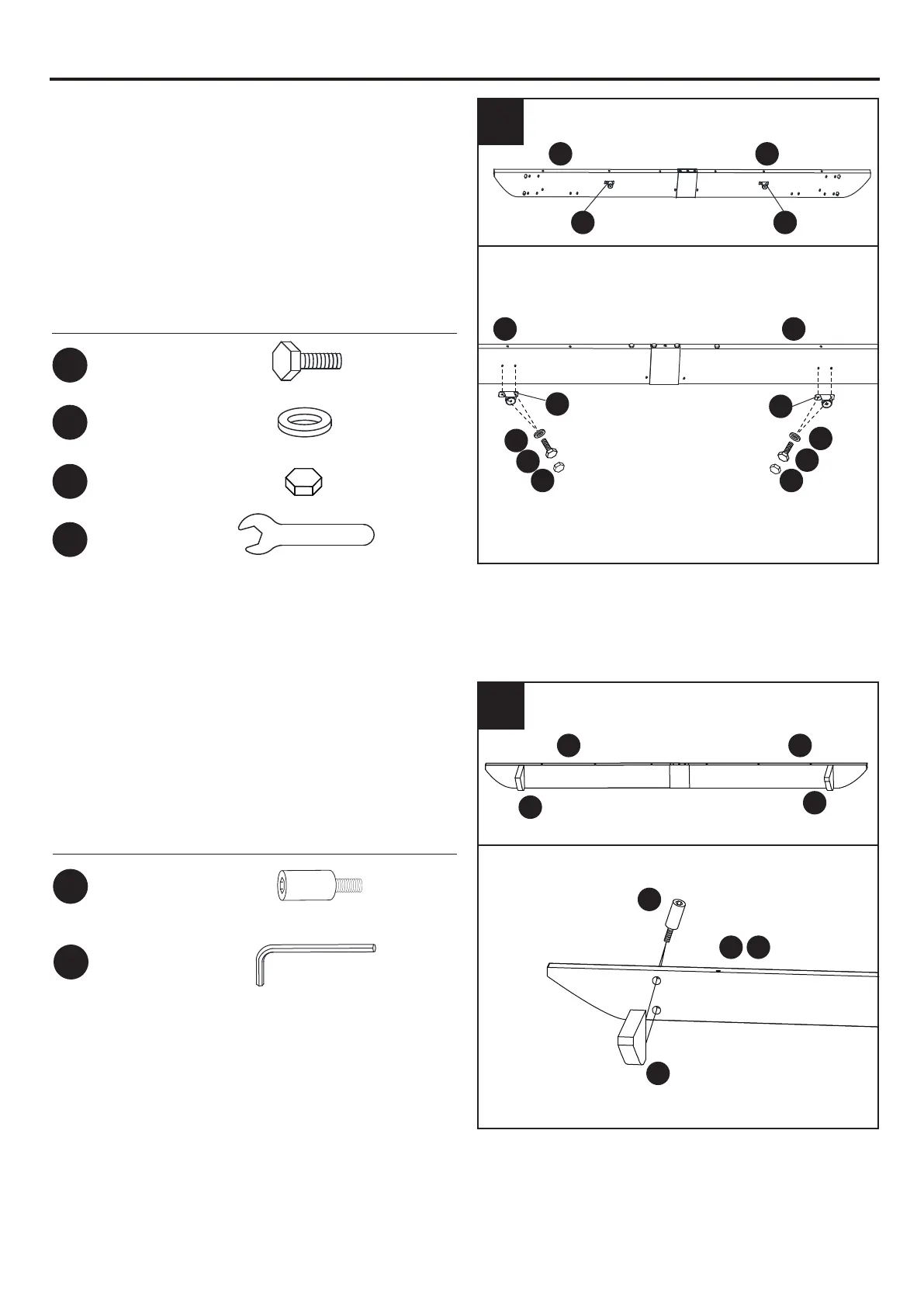

4. Fix the Adsorption piece (K) onto the
Crossbeams (B1/B2) by using the Bolt (AA) and
Washer (FF).Tighten together with the wrench
(NN). Place
Cap (II) on the bolt (AA).
Hardware Used
M6 × 15 mm Bolt
X4
X4
X4
Cap
Washer
AA
FF
II
X1
Wrench
NN
4
B2 B1
B1
B1 B2
BB
C3
C3
C3
B2
5. Connect the Decoration Cap (C3) to the
Crossbeam (B1/B2) with Bolt (BB). Tighten
together with the
Allen Wrench (MM).
Hardware Used
M6 × 15 mm Bolt
X4
BB
X1
Allen Wrench
MM
5
K
FF
AA
II
FF
AA
II
K
