allen AR16 - Electric Schematic - AR16 W; 13 HP Honda Engine(Recoil Start)

SECTION 4
PARTS
055838 Page 101
ITEM PART # DESCRIPTION QTY
6 45049-25 Pushbutton, E-stop, 1N.O. Contact 1
7 42109-01R “Emergency Stop” Legend Plate 1

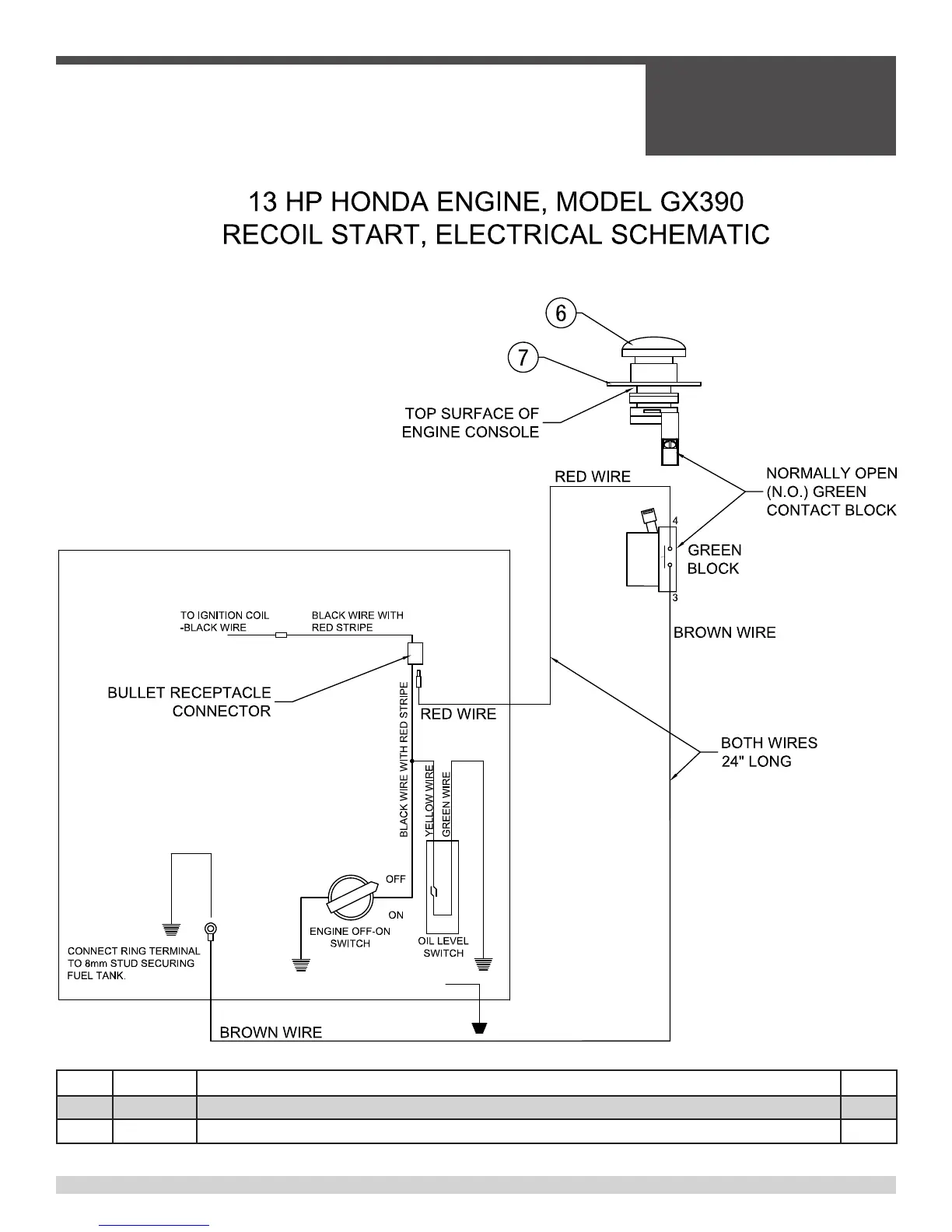

4.12 - Electric Schematic for AR16 with
13HP Honda Engine (Recoil Start),
Illustration and Parts List
