Alliance Laundry Systems Washer-Extractor - Page 40

Installation
F232135
38
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

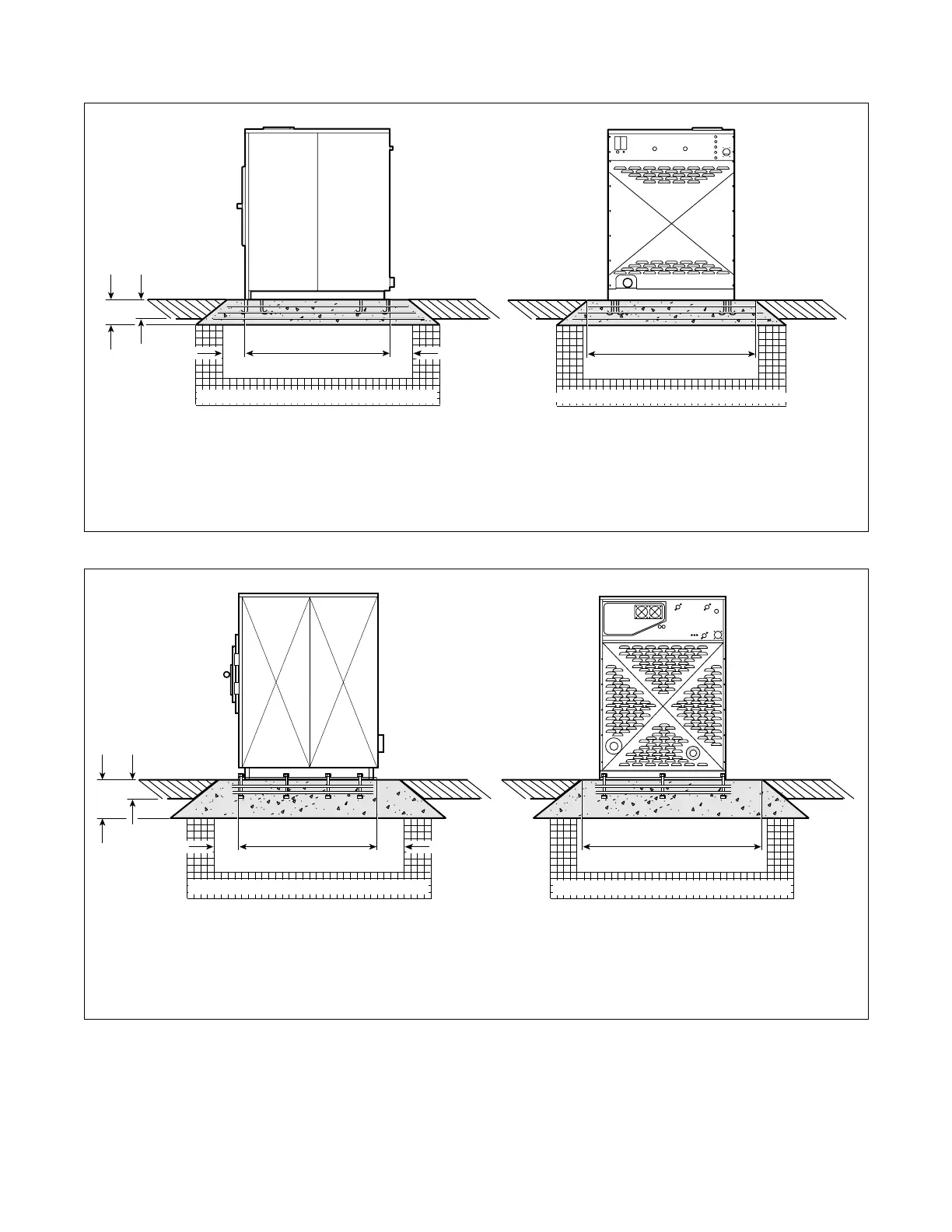

Figure 26
Figure 27
B153I
1 9 in. (229 mm) 3 47-1/2 in. (1207 mm)
2 6 in. (152 mm) 4 4 ft. 6 in. (1372 mm)
B153I
80 POUND CAPACITY MODELS
1
2
2
34
LENGTH FOR ONE MACHINE
COMPACTED FILL DIRT 18 in. (457 mm) DEPTH
COMPACTED FILL DIRT 18 in. (457 mm) DEPTH
2
B154I
1 12 in. (305 mm) 3 48 in. (1219 mm)
2 6 in. (152 mm) 4 6 ft. (1829 mm)
B154I
125 POUND CAPACITY MODELS
COMPACTED FILL DIRT 24 in. (609 mm) DEPTH
1
2
3
4
LENGTH FOR ONE MACHINE
1
1
COMPACTED FILL DIRT 24 in. (609 mm) DEPTH
