Alliance Laundry Systems Washer-Extractor - Supply Dispensing (OPL Machines Only)

Installation
53
F232135
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Terminals SUPPLY 1 through SUPPLY 5 provide
120VAC or 240VAC fused at 500mA. Refer to decal at
external supply terminal strip to determine whether
washer-extractor provides 120VAC or 240VAC. These
terminals may be used to provide signals to chemical
injection supply system but must not be used to
provide power to actual pump.
IMPORTANT: Increasing fuse rating may cause
damage to washer-extractor’s circuitry.
IMPORTANT: Any injection system pump that
requires 110VAC must be powered by a separate
external power source.
Consult chemical injection supply system instructions
for operational details.

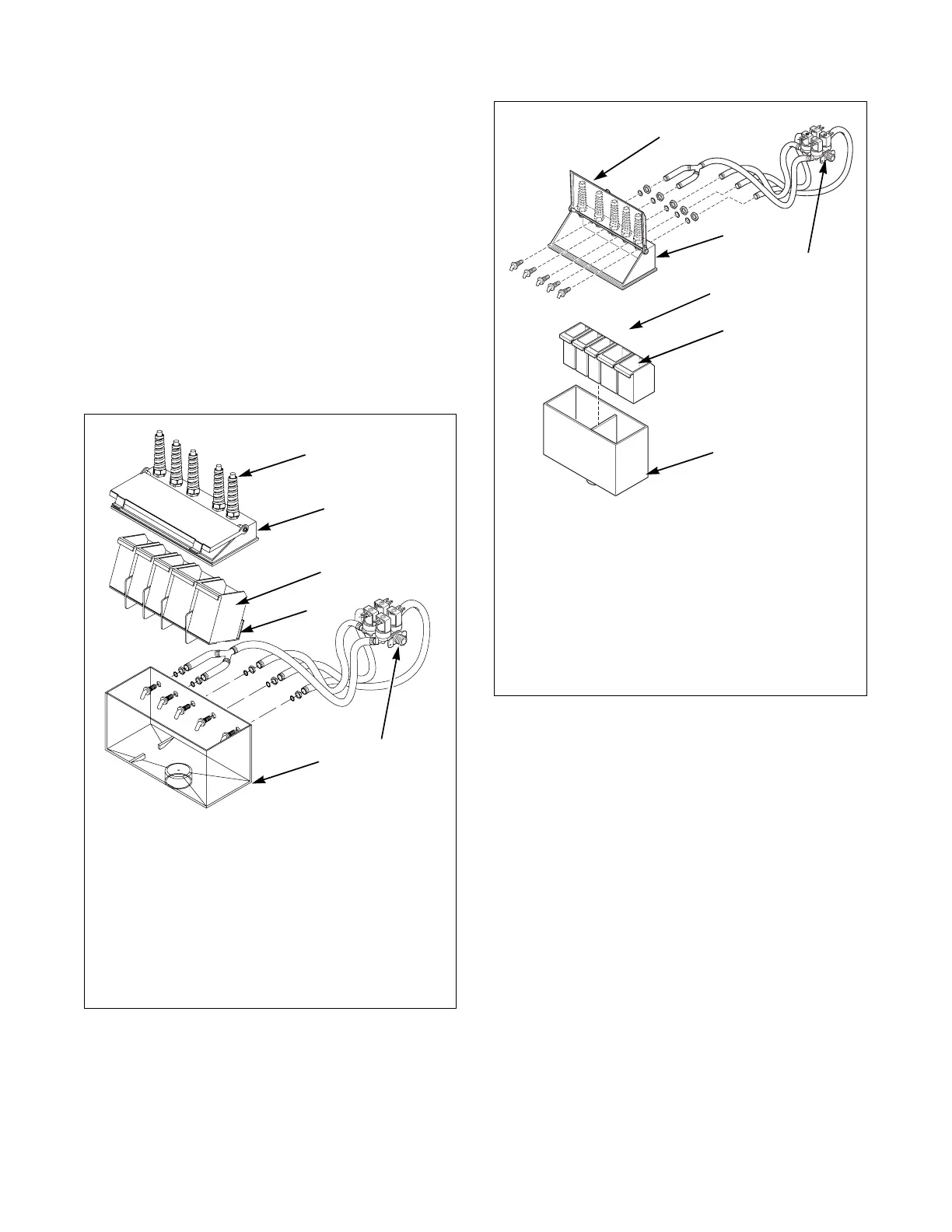

Figure 33
Figure 34
P048I
1 Strain Relief for Liquid Chemical Supply
Lines
2 Supply Dispenser Lid
3 Dry Supply Cups
4 Dry Supply Insert
5 Four Way Water Valve
6 Supply Dispenser
P048I
3
1
2
4
5
6
DESIGNS 1-4
CHM2001N
1 Strain Relief for Liquid Chemical Supply
Lines
2 Supply Dispenser Lid
3 Dry Supply Insert
4 Dry Supply Cups
5 Four Way Water Valve
6 Supply Dispenser
PHM2001N
3
1
2
4
5
6
DESIGN 6
