Allied Telesis x510 Series Product Information

x510 Series | Stackable Gigabit Switches
alliedtelesis.com
© 2013 Allied Telesis, Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners.
617-000474 RevH
North America Headquarters | 19800 North Creek Parkway | Suite 100 | Bothell | WA 98011 | USA | T: +1 800 424 4284 | F: +1 425 481 3895
Asia-Pacic Headquarters | 11 Tai Seng Link | Singapore | 534182 | T: +65 6383 3832 | F: +65 6383 3830
EMEA & CSA Operations | Incheonweg 7 | 1437 EK Rozenburg | The Netherlands | T: +31 20 7950020 | F: +31 20 7950021

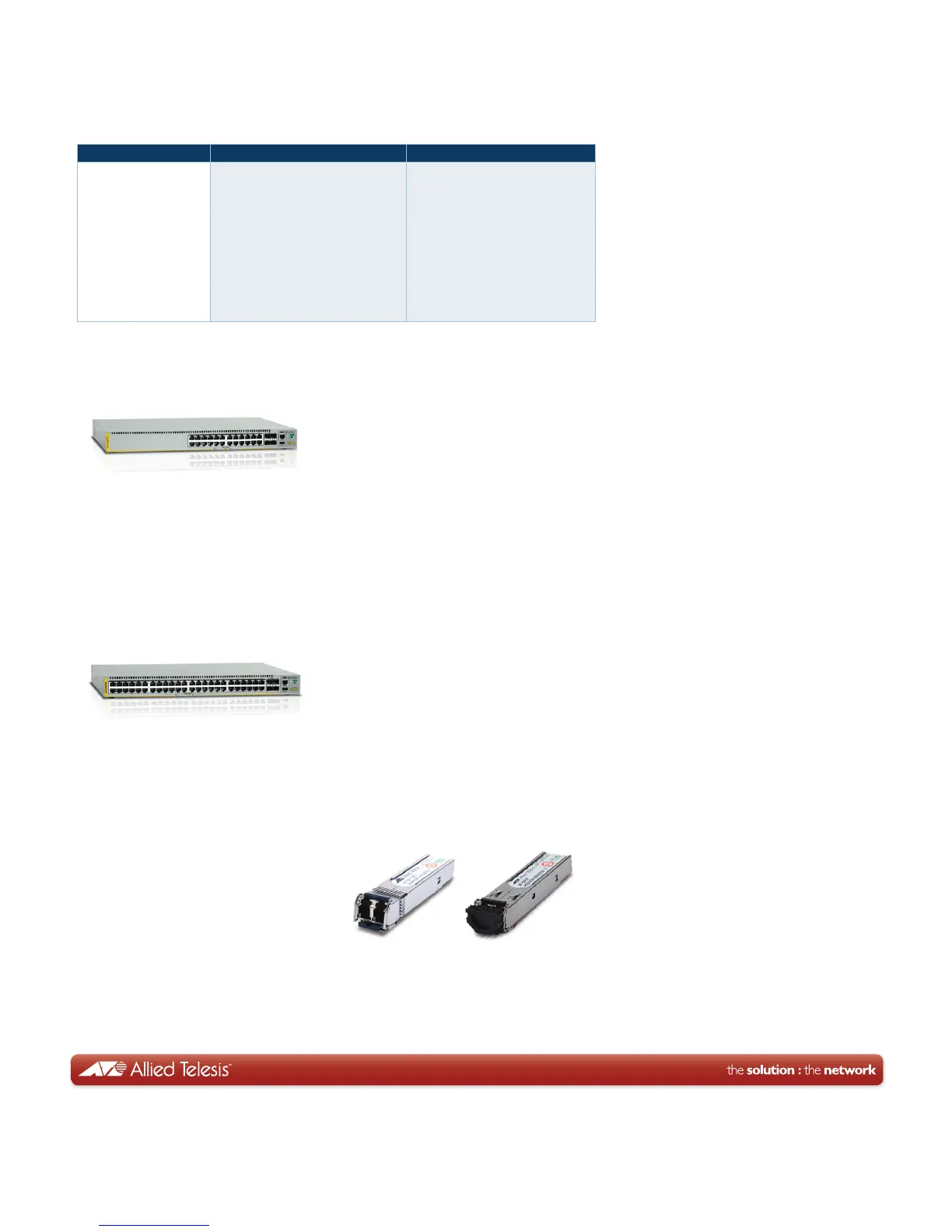

Feature Licenses
NAME DESCRIPTION INCLUDES
AT-FL-x510-01
x510 premium license
» RIP
» OSPF
» PIMv4-SM, DM and SSM
» EPSR master
» VLAN double tagging (Q-in-Q)
» RIPng
» OSPFv3
» MLDv1 and v2
» PIMv6-SM
Ordering Information
Where xx = 10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Switches
AT-x510-28GTX-xx
24-port 10/100/1000T stackable switch with
4 SFP+ ports and 2 fixed power supplies
AT-x510-28GPX-xx
24-port 10/100/1000T PoE+ stackable switch with
4 SFP+ ports and 2 fixed power supplies
AT-x510-28GSX-xx
24-port 100/1000X SFP stackable switch with
4 SFP+ ports and 2 fixed power supplies
AT-x510-52GTX-xx
48-port 10/100/1000T stackable switch with
4 SFP+ ports and 2 fixed power supplies
AT-x510-52GPX-xx
48-port 10/100/1000T PoE+ stackable switch with
4 SFP+ ports and 2 fixed power supplies
1000Mbps SFP Modules
AT-SPTX
1000T 100 m copper
AT-SPSX
1000SX GbE multi-mode 850 nm fiber up to 550 m
AT-SPEX
1000X GbE multi-mode 1310 nm fiber up to 2 km
AT-SPLX10
1000LX GbE single-mode 1310 nm fiber up to 10 km
AT-SPLX10/I
1000LX GbE single-mode 1310 nm fiber up to 10 km
industrial temperature
AT-SPBD10 -13
1000LX GbE Bi-Di (1310 nm Tx, 1490 nm Rx) fiber
up to 10 km
AT-SPBD10-14
1000LX GbE Bi-Di (1490 nm Tx, 1310 nm Rx) fiber
up to 10 km
AT-SPLX40
1000LX GbE single-mode 1310 nm fiber up to 40 km
AT-SPZ X80
1000ZX GbE single-mode 1550 nm fiber up to 80 km
100Mbps SFP Modules
AT-SPFX/2
100FX multi-mode 1310 nm fiber up to 2 km
AT-SPFX /15
100FX single-mode 1310 nm fiber up to 15 km
AT-SPFXBD-LC-13
100BX Bi-Di (1310 nm Tx, 1550 nm Rx) fiber up to
10 km
AT-SPFXBD-LC-15
100BX Bi-Di (1550 nm Tx, 1310nm Rx) fiber up to
10 km
100Mbps SFP modules are only compatible with the SFP ports
on the AT-x510-28GSX switch.
10GbE SFP+ Modules
AT-SP10 S R
10GSR 850 nm short-haul, 300 m with MMF
AT-SP10LR
10GLR 1310 nm medium-haul, 10 km with SMF
AT-SP10T W1
1 meter SFP+ direct attach cable
AT-SP10T W3
3 meter SFP+ direct attach cable
AT-SP10TW7
7 meter SFP+ direct attach cable
Stacking Modules
AT-Stack XS/1.0
1 meter stacking cable
(includes 2 stacking modules)
AT-StackOP/0.3
Optical stacking module
850 nm short-haul, 300 m with MMF
(two modules required per switch)
AT-StackOP/9.0
Optical stacking module
1310 nm medium-haul, 9 km with SMF
(two modules required per switch)
*GSX model will be available in the near future
*

Allied Telesis x510 Series Specifications

General

Series	x510 Series
Category	Switch
Operating Temperature	0°C to 50°C (32°F to 122°F)
MAC Address Table Size	16K entries
VLANs	4094
Jumbo Frames	9KB
Power Supply	Internal power supply, 100-240V AC, 50/60Hz
Stacking	Up to 8 units
Layer	Layer 2
Power over Ethernet (PoE)	Available on some models
Management	Web-based, CLI, SNMP
Security Features	Access Control Lists (ACLs), 802.1X authentication, port security
Weight	Varies by model
Ports	Varies by model (e.g., 24, 48)
Dimensions (W x D x H)	440 x 260 x 44 mm (x510-52GP), 440 x 260 x 44 mm (x510-28GP)
