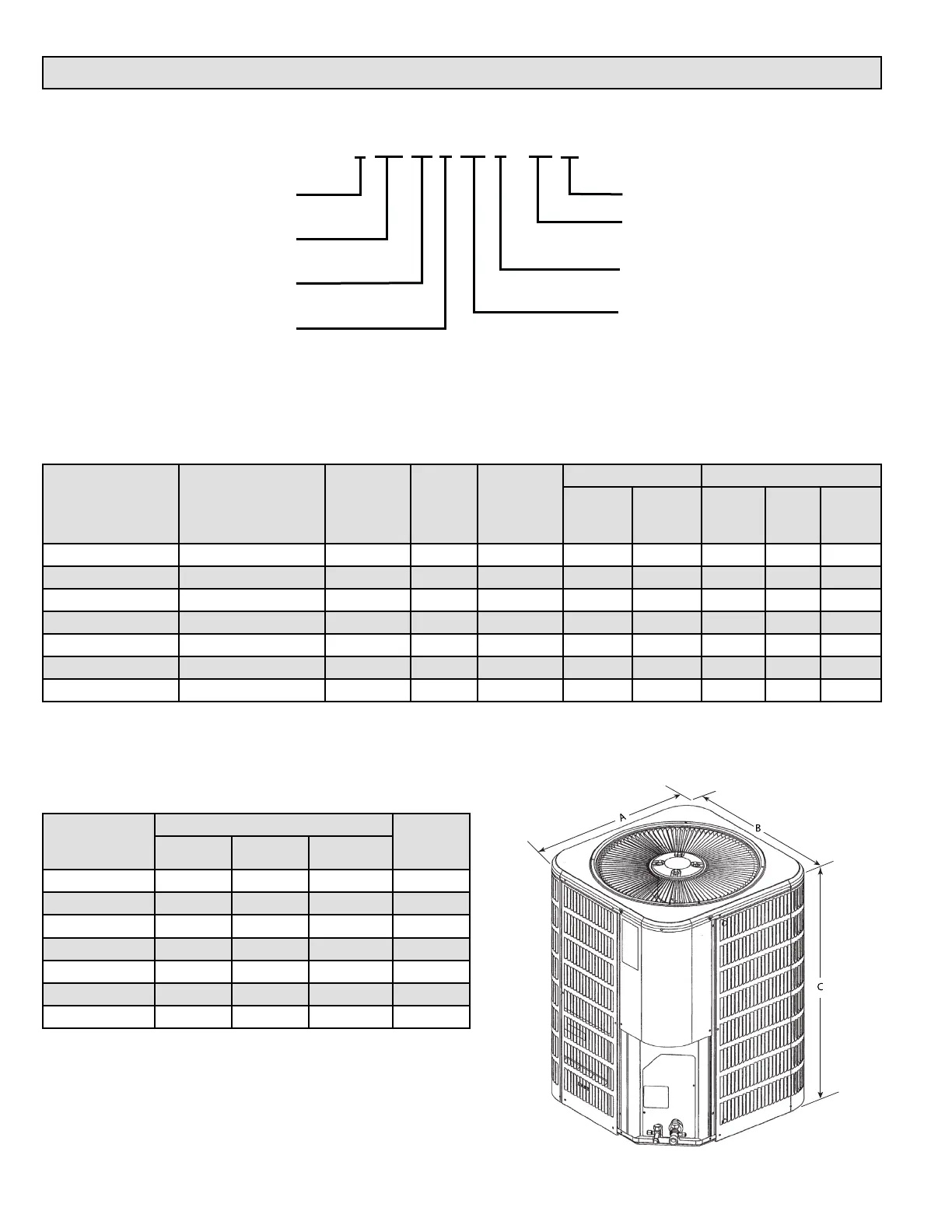

Technical Specications - 4HP14B
MODEL NUMBER GUIDE
Minor Revision Code
Major Revision Code
50 = Omniguard®
Electrical
P - 208-230V/60hz/1Ph
Tonnage
18, 24, 30, 36, 42, 48, 60
Refrigerant
4 = R410A
HP
Heat Pump
SEER
14
Tier
B = Wire Guard
4 HP 14 B 24 P - 50 A
PHYSICAL AND ELECTRICAL DATA
Model Voltage/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max. Over
Current
Device
(amps)
Compressor Outdoor Fan Motor
Rated
Load
(amps)
Locked
Rotor
(amps)
Full
Load
(amps)
Rated
HP
Nom.
RPM
4HP14B18P-50 208-230/60/1 197-253 12.3 20 9.0 48 1.1 1/6 825
4HP14B24P-50 208-230/60/1 197-253 17.9 30 13.4 58 1.1 1/6 825
4HP14B30P-50 208-230/60/1 197-253 17.1 25 12.8 64 1.1 1/6 825
4HP14B36P-50 208-230/60/1 197-253 18.7 30 14.1 77 1.1 1/6 825
4HP14B42P-50 208-230/60/1 197-253 25.8 45 19.2 123.9 1.8 1/4 825
4HP14B48P-50 208-230/60/1 197-253 26.2 45 19.6 130 1.8 1/4 825
4HP14B60P-50 208-230/60/1 197-253 29.6 50 22.2 127.9 1.8 1/4 825
UNIT DIMENSIONS (IN.)
Model
Dimensions (in.) Shipping
Weight
(lbs.)
A - Width B - Depth C - Height
4HP14B18P-50 28.25 28.25 43.25 163
4HP14B24P-50 28.25 28.25 43.25 165
4HP14B30P-50 28.25 28.25 43.25 165
4HP14B36P-50 28.25 28.25 37.25 186
4HP14B42P-50 32.25 32.25 37.25 230
4HP14B48P-50 32.25 32.25 37.25 233
4HP14B60P-50 32.25 32.25 43.25 247
Note:
Dimensions listed are unit sizes w/o packaging
Weights listed are unit weights with packaging
