Allied 4SHP16LE - Technical Specifications - 4 SHP16 LE

508220-01Issue 2132Page 2 of 43

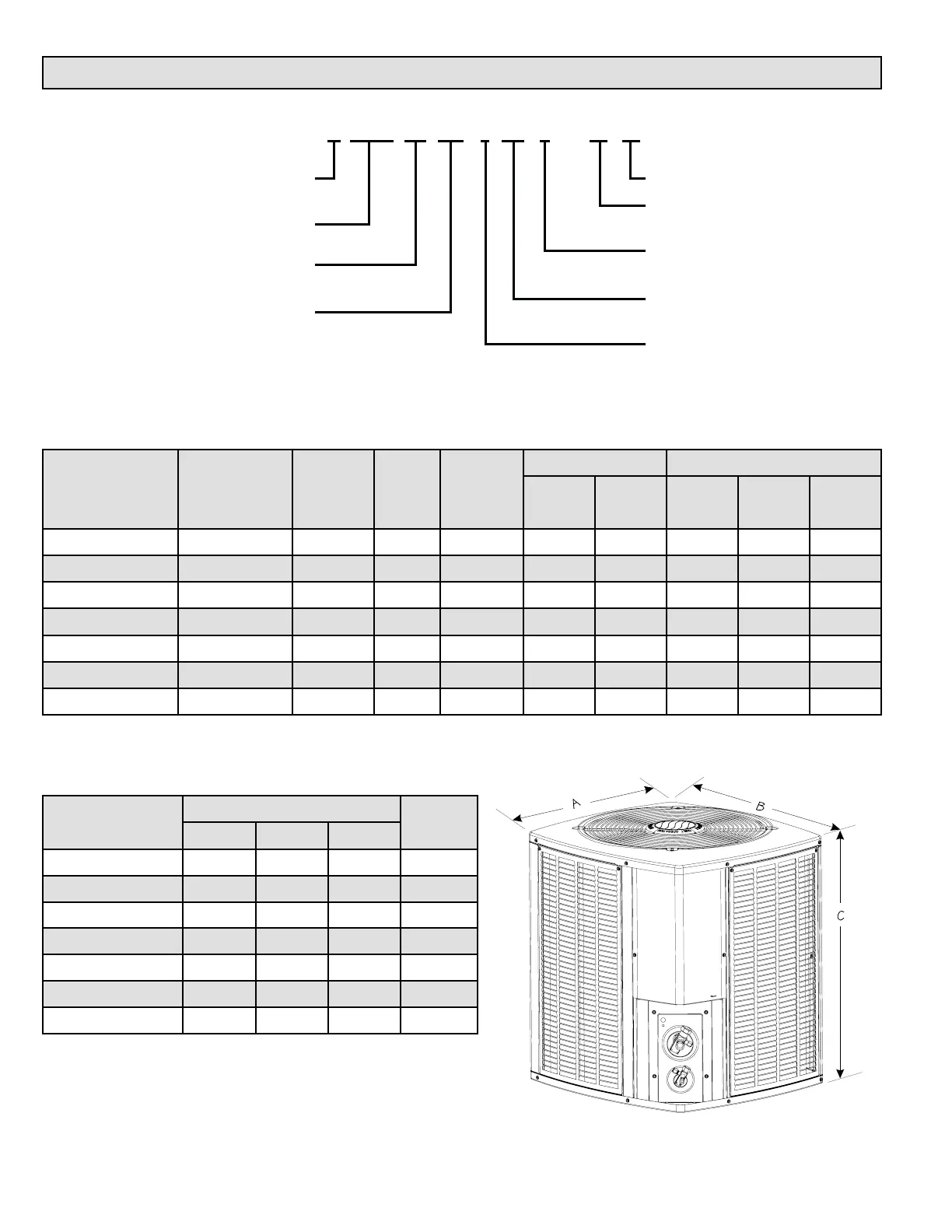

Technical Specications - 4SHP16LE
MODEL NUMBER GUIDE
PHYSICAL AND ELECTRICAL DATA
Model Voltage/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max. Over
Current
Device
(amps)
Compressor Fan Motor
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated HP
Nom.
RPM
4SHP16LE118P-50 208-230/60/1 197-253 10.6 20 7.7 48 1 1/6 825
4SHP16LE124P-50 208-230/60/1 197-253 13.6 20 10.1 52 1 1/6 825
4SHP16LE130P-50 208-230/60/1 197-253 16.4 25 12.3 63 1 1/6 825
4SHP16LE136P-50 208-230/60/1 197-253 20.9 35 14.7 75 2.6 1/3 820
4SHP16LE142P-50 208-230/60/1 197-253 25 40 17.9 112.3 2.6 1/3 820
4SHP16LE148P-50 208-230/60/1 197-253 25.8 40 18.5 124 2.6 1/3 820
4SHP16LE160P-50 208-230/60/1 197-253 30.4 50 22.2 127.9 2.6 1/3 820
UNIT DIMENSIONS (IN.)
Model No.
Dimensions
Shipping
Weight
(lbs.)
A - width B - depth C - Height
4SHP16LE118P-50 28.25 28.25 43.25 200
4SHP16LE124P-50 28.25 28.25 33.25 210
4SHP16LE130P-50 28.25 28.25 33.25 209
4SHP16LE136P-50 32.25 32.25 33.25 247
4SHP16LE142P-50 32.25 32.25 43.25 301
4SHP16LE148P-50 32.25 32.25 43.25 305
4SHP16LE160P-50 32.25 32.25 43.25 309
Note:
Weights listed are unit weights with packaging
Dimensions listed are unit sizes w/o packaging
Minor Revision Code
Major Revision Code
50 = Omniguard
®
Electrical
P - 208 - 230v/60hz/1Ph
Tonnage
18, 24, 30, 36, 41, 42, 47, 48, 59, 60
Region Restriction
1 = all Regions
Refrigerant
4 = R410A
SHP
Split Heat Pump
SEER
16
Tier
LE = Louvered Enhanced
4 SHP 16 LE 1 24 P - 50 A
