Parts - 7420, 8420 & 8420G Snowblower

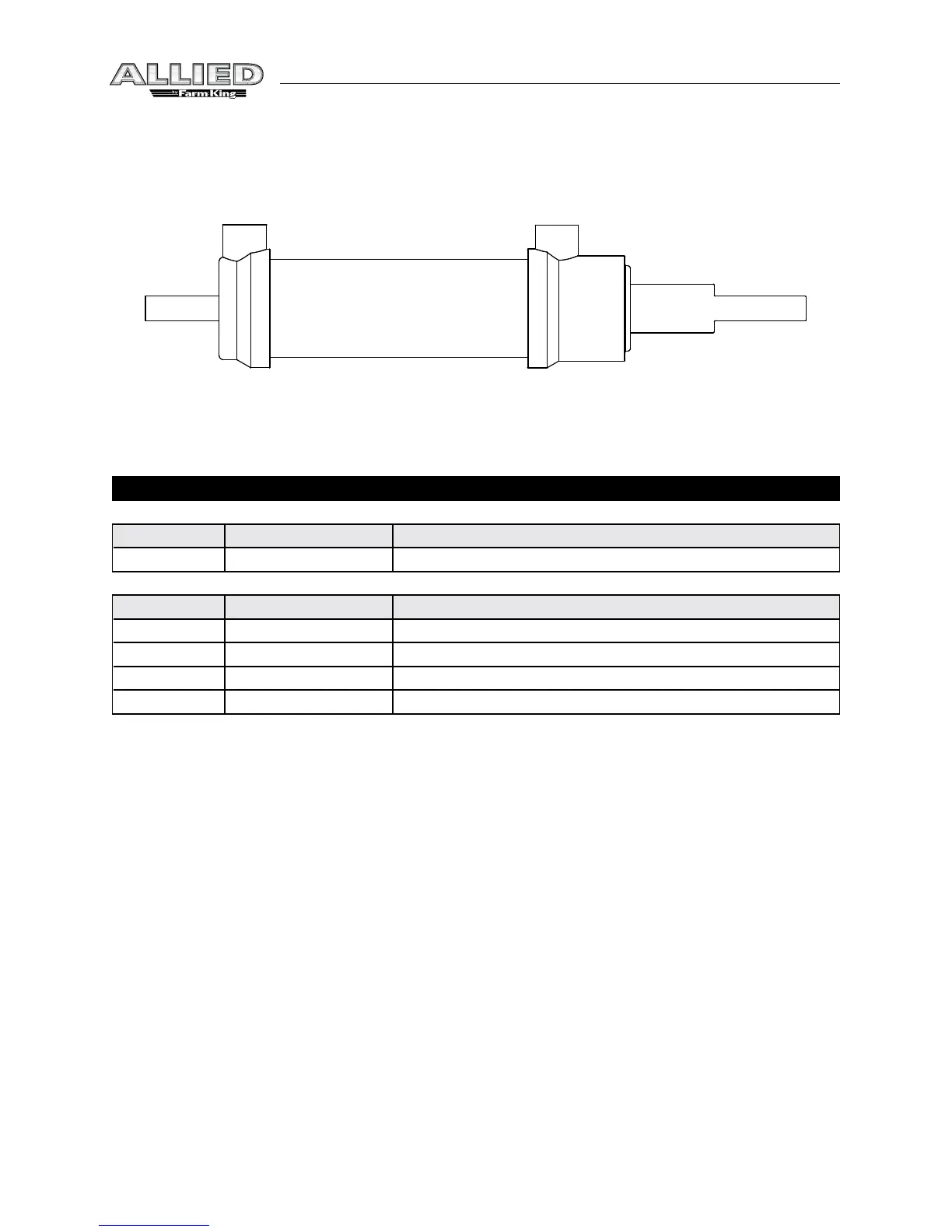

1.75 x 5 Cylinder Assembly Drawing (Optional)
Item Part Number Description
24930M Cylinder Complete
- X3913 Seal Kit
F9117 Spout Deflector Cylinder & Hose Kit
1 116984 Hose 3/8 x 120 c/w Fittings
2 24930M Cylinder 1.75 Dia x 5.0 9/16 Orb
3 960913 Clevis Pin 0.500 x 1.813 Pl
4 9812430 Cotter Pin 0.125 x 1.00 Pl
To Next Page
