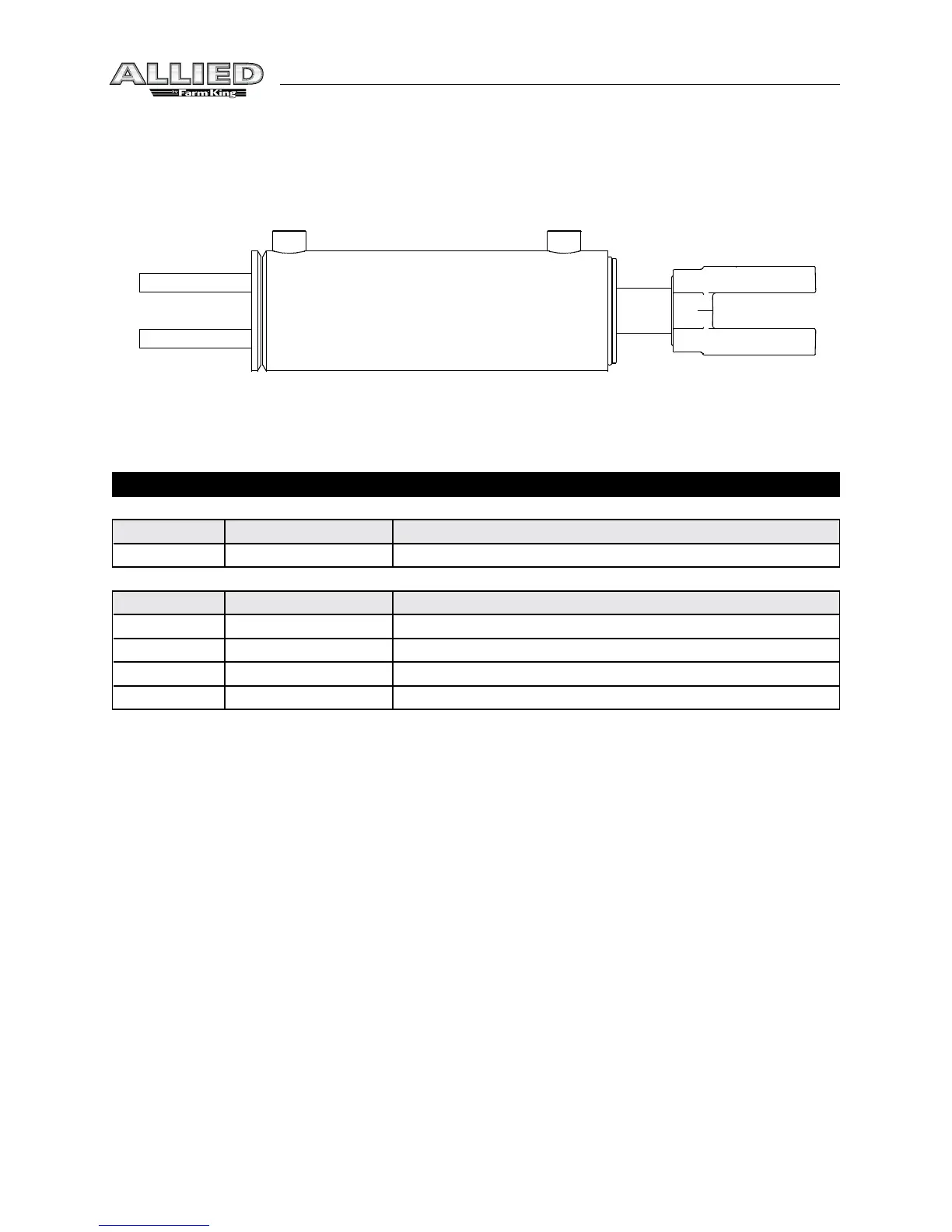

3.5 x 8 Cylinder Assembly Drawing (Optional)
Item Part Number Description
24803M Cylinder Complete
- X3906 Seal Kit
F9116 Hydraulic Cylinder & Hose Kit for Spout Swivel
1 103753 Cylinder Clevis Pin 1 x 4" Rb & Fm
2 115043 Hose 1/2 x 78 1/2 mnpt x 3/4 morb
3 12779 Hair Pin Clip #9
4 24803M Cylinder 3.5 Dia x 8.0 Orb Port
Parts - 7420, 8420 & 8420G Snowblower
