Copyright © 1996 General Motors Corp.
6–11

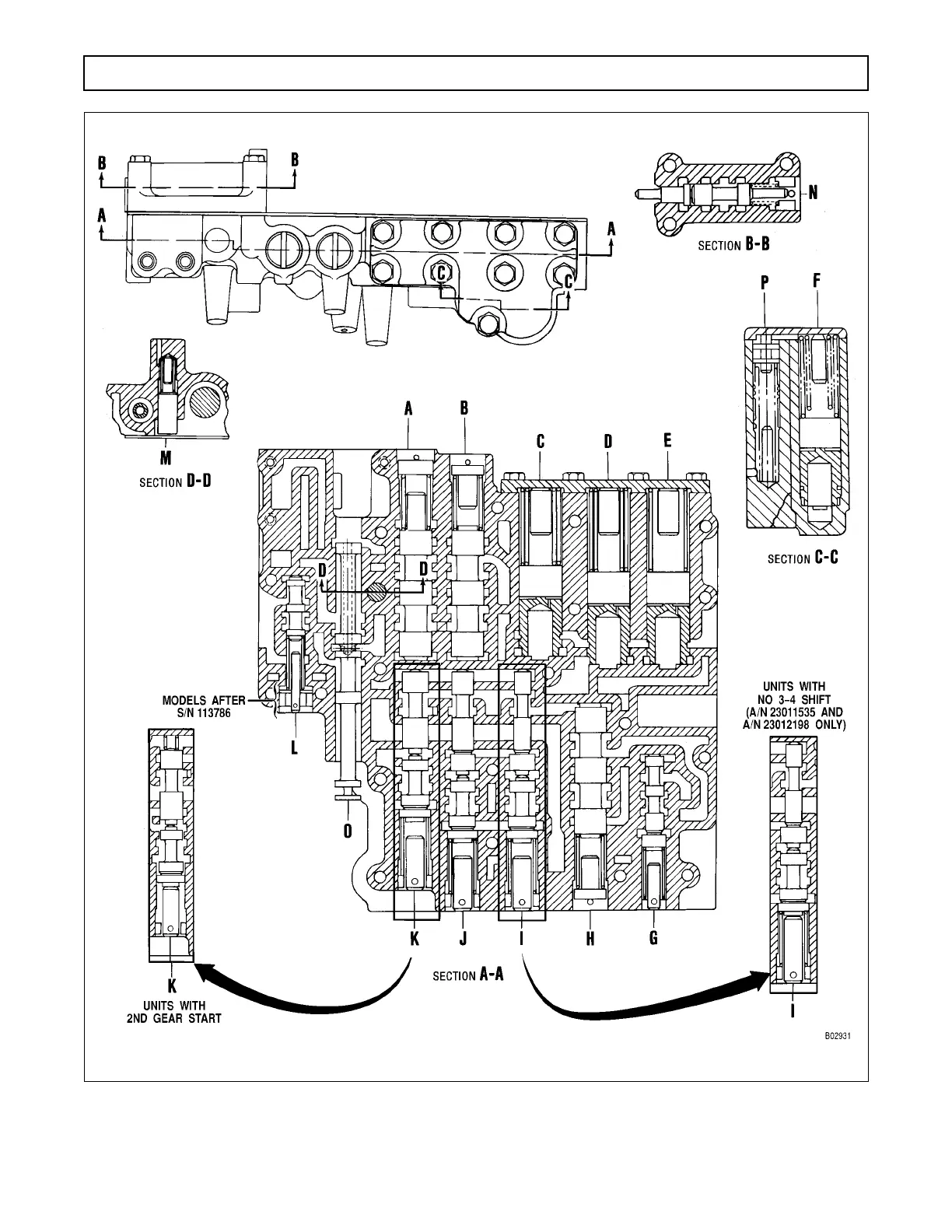

REBUILD OF SUBASSEMBLIES
Figure
6–20.
Control
V
alve Body Assembly —
With Components Installed
102
104
Table of Contents
Table of Contents
5
Section 1. GENERAL INFORMATION
11
Scope of Manual
11
Coverage
11
Illustrations
11
Maintenance Information
11
Supplementary Information
11
Ordering Parts
11
Transmission Nameplate
11
Parts Catalog
11
General Description
14
Automatic, Four Speeds
14
Torque Converter and Lockup Clutch
14
Planetary Gearing, Clutches
14
Main Control Valve Body
14
Operating Instructions
14
Specifications and Data
14
Section 2. DESCRIPTION and OPERATION
19
Scope
19
Mounting
19
To Engine
19
To Vehicle
19
Input Drive
19
Transmission Housing
19
Torque Converter Assembly
19
And Lockup Clutch
19
Description
19
Oil Pump Assembly
20
Description
20
Operation
20
Forward Clutch and Turbine Shaft
20
Forward Clutch
20
Fourth Clutch
21
Description
21
Operation
21
Second and Third Clutch and Center Support
21
Operation of Third Clutch
21
Third Clutch
21
Second Clutch
21
Operation of Second Clutch
22
First Clutch
22
Description
22
Operation
22
Planetary Gear Unit
22
Speedometer Drive/Speed Sensor Wheel
23
Description
23
Operation
23
Governor
23
Modulator
23
Vacuum Modulator
23
Mechanical Modulator
23
Electric Modulator
23
Oil Pan and Filter
24
Description
24
Function
24
Hydraulic Retarder
24
Operation
24
Main Control Valve Assembly
25
Hydraulic System
25
System Functions
25
System Schematic
25
Filter, Pump Circuit
25
Main-Pressure Circuit (Red)
25
Converter-In (Yellow), Converter-Out (Orange), Lubrication (Green) Circuits
26
Selector Valve, Neutral, Forward Regulator Circuit (Orange and Yellow)
26
Governor Valve, Governor Circuit (Green and White)
26
Modulator Pressure Circuit
26
Clutch Circuits
27
Hold Regulator Valve
27
Automatic Upshifts
27
Automatic Downshifts
27
Downshift Inhibiting
27
Trimmer Valves
28
Priority Valve
28
Trimmer Regulator Valve
28
Torque Paths through
29
Neutral Operation
29
Section 7. ASSEMBLY of TRANSMISSION
29
First Clutch
29
Fourth Clutch
29
Forward Clutches
29
Third Clutch
29
First-Range Operation
30
Second-Range Operation
31
Third-Range Operation
32
Converter Operation (at 1500 Series Models)
32
Lockup Operation
32
Fourth-Range Operation
33
Fourth-Range Lockup Operation (at 1500 Series Models)
33
Reverse Operation
34
Section 3. PREVENTIVE MAINTENANCE
35
Scope
35
Periodic Inspection and Care
35
Importance of Proper
35
Foaming and Aerating
35
Dipstick Markings
35
Transmission Fluid Level Check Procedure
36
Preparation
36
Cold Check
37
Hot Check
37
Keeping Transmission
37
Fluid Clean
37
Transmission Fluid Recommendations
37
Recommended Automatic Transmission Fluid and Viscosity Grade
37
Transmission Fluid and Filter Change Intervals
38
Transmission Fluid Contamination
38
Examine at Fluid Change
38
Metal Particles
38
Coolant Leakage
38
Auxiliary Filter
38
Transmission Fluid and Filter Change Procedures
41
Disassembly
41
Assembly
41
Breather
42
Linkage
43
Shift Selector Lever and Control Linkage
43
Mechanical Actuator Adjustment
43
Other Linkage Adjustments
43
Adjustment of Shift Points
43
Calibrated on Test Stand or in Vehicle
43
Location of Adjusting Components
43
Checks before Adjusting Shift Points
44
Calibration by Road Test Method
44
Calibration by Speedometer Readings Method
44
Calibration by Test Stand Method
44
Transmission Stall Test and Neutral Cool-Down Check
49
Purpose
49
Stall Testing Preparation
49
Stall Test Procedures - Vehicles Without Smoke-Controlled Engines
49
Stall Test Procedures - Vehicles with Smoke-Controlled Engines
50
Neutral Cool-Down Check Procedure
50
Results
50
Preservation and Storage
50
Storage, New Transmissions
50
Preservation Methods
50
Storage, One Year - Without Transmission Fluid
50
Storage, One Year - with Transmission Fluid
51
Restoring Transmission to Service
51
Replacement of Components While Transmission Is in the Vehicle Chassis
52
Replacement of Selector Shaft Seal
52
Removal of Output Flange, Output Seal
52
Removal of Output Shaft Bearing
52
Removal of Speedometer Drive Gear or Speed Sensor Wheel and Selective Spacer
52
Replacement of Components
52
WHILE TRANSMISSION IS in the VEHICLE CHASSIS (Cont'D)
52
Installation of Speedometer Drive Gear or Speed Sensor Wheel and
52
Installation of Output Shaft Bearing
53
And Snapring
53
Installation of Output Seal
53
Installation of Output Flange
53
Troubleshooting - before
53
Removal or Operation of
53
Transmission
53
Visual Inspection
53
Vacuum Modulator Check
53
Troubleshooting - before
55
Removal and During Operation
55
Determine Cause of Trouble
55
Proper Engine Tuning
55
Hydraulic Pressure Checking
55
Procedures
55
Troubleshooting - Transmission Removed from Vehicle
55
Troubleshooting Procedures
55
Section 4. GENERAL OVERHAUL INFORMATION
69
Scope
69
Tools and Equipment
69
Improvised Tools and Equipment
69
Special Tools
70
Mechanic's Tools, Shop Equipment
76
Replacement Parts
77
Ordering Information
77
Parts Normally Replaced
77
Careful Handling
77
Dirt-Free Assembly
77
Cleaning Parts
77
Cleaning Bearings
77
Assembly
77
Inspecting Bearings
78
Keeping Bearings Clean
78
Inspecting Cast Parts, Machined Surfaces
78
Inspecting Bushings, Thrust Washers
79
Inspecting Oil Seals, Gaskets
79
Inspecting Gears
80
Inspecting Splined Parts
80
Inspecting Threaded Parts
80
Inspecting Snaprings
80
Inspecting Springs
80
Inspecting Clutch Plates
80
Inspecting Swaged, Interference-Fit
80
Parts
80
Inspecting Balls in Clutch Housings
80
Inspecting Seal Contact Surfaces
80
Assembly Procedures
81
Clutches, Pistons
81
Parts Lubrication
81
External Pipe Plugs, Hydraulic
81
Fittings
81
Oil-Soluble Grease
81
Lip-Type Seals (Metal Encased)
81
Interference-Fit Parts
81
Sleeve-Type Bearings and Bushings
81
Bearings (Ball or Roller)
81
Removing (or Installing) Transmission
82
Drain Transmission Fluid
82
Check Linkages and Lines
82
Remove, Clean Transmission
82
Transmission Installation
82
Wear Limits
82
Spring Specifications
82
Torque Specifications
82
Section 5. DISASSEMBLY of TRANSMISSION
83
Scope
83
General Information
83
Removal of Exterior Hoses and Lines
83
Transmission Disassembly
83
Mounting of Transmission in Table-Mounted Holding Fixture
83
Removal of Torque Converter
84
Removal of Vacuum Modulator, Mechanical Actuator
84
Removal of Breather
84
Assembly
84
Removal of Governor
85
Removal of Oil Pan
85
Removal of Filter
85
Removal of Main Control Valve Body
85
Removal of Pump
87
Removal of Forward Clutch and Turbine Shaft
88
Removal of Retarder Components, Forward Clutch and Turbine Shaft
88
Pump Assembly
88
Removal of Fourth Clutch
89
Removal of Third Clutch
89
Removal of Center Support Assembly
89
Removal of Planetary Gearing
90
Removal of Second Clutch
91
Removal of First Clutch
91
Removal of Output Shaft Seal and Bearing
92
Section 6. REBUILD of SUBASSEMBLIES
93
Scope
93
General Information for Subassembly Rebuild
93
Inspecting and Testing Torque Converter
93
Preliminary Inspection
93
End Play Check
93
Leak Check
94
Inspection of Hub
94
Preparation for Reuse of Converter
94
Torque Converter Assembly - at 543 Models
94
Preliminary Check of End Play
94
Replacement of Needle Bearing Assembly in Stator Assembly
96
Assembly
96
Governor
99
Main Control Valve Body
100
Assembly
105
Transfer Plate Assembly
105
Oil Pump and Front
106
Support Assembly
106
Installation of Stator Shaft and Bushing
108
Pump Gear Clearance Check
109
Assembly
110
Forward Clutch and Turbine Shaft Assembly
112
Disassembly
112
Checking Clutch Pack Clearance (Models Without Wave Plate)
114
Assembly
117
Retarder Housing Assembly
117
Checking Clutch Pack Clearance
118
Center Support Assembly
119
Rework of Center Support Piston Retainer Locating Notches
120
Assembly
120
Planetary Gear Unit
121
Assembly
122
Transmission Main Housing Assembly
124
Disassembly
124
Assembly
125
Planetary Carrier Assemblies
125
Inspection
126
Removal of Pinion Components
127
Replacing Bushing in Front Planetary Carrier
127
Installation of Pinion Components
128
Filter
147
Oil Pan
147
Installation of Governor, Modulator, and Torque Converter
148
Governor
148
Vacuum Modulator
148
Torque Converter Assembly
149
Removal of Transmission from Overhaul Stand and Installation of External Components
150
Supporting Transmission
150
Determining Third Clutch Clearance
150
Installing Retarder Valve Body
150
Installing PTO Cover
150
Installing Neutral Start Switch, Speedometer Components
150
Shift Lever Installation
150
Checking and Adjusting
151
Shift Points
151
Power Takeoff Components
151
(Models Without Retarder)
151
Existing Installation
151
Determining Turbine-Driven PTO
151
Backlash
151
New Installation
151
Section 8. WEAR LIMITS and
153
Wear Limit Data
153
Spring Data
153
Section 9. CUSTOMER SERVICE
167
Owner Assistance
167
Service Literature
168
Other manuals for Allison Transmission AT 545
Manual
52 pages
Operator's Manual
48 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Allison Transmission AT 545 and is the answer not in the manual?
Ask a question
Allison Transmission AT 545 Specifications
General
Brand
Allison Transmission
Model
AT 545
Category
Microphone system
Language
English
Related product manuals
Allison Transmission AT 540
52 pages
Allison Transmission AT 543
52 pages
Allison Transmission AT 542
52 pages
Allison Transmission AT 542N
52 pages
AT 500 Series
52 pages
Allison Transmission AT 1545P
52 pages
Allison Transmission AT Series
48 pages
Allison Transmission MT 653
48 pages
Allison Transmission 2100 HS
26 pages
Allison Transmission 2500 RDS
26 pages
Allison Transmission 1000 Series
26 pages
shift selector
24 pages
Need help?
General
To Next Page
