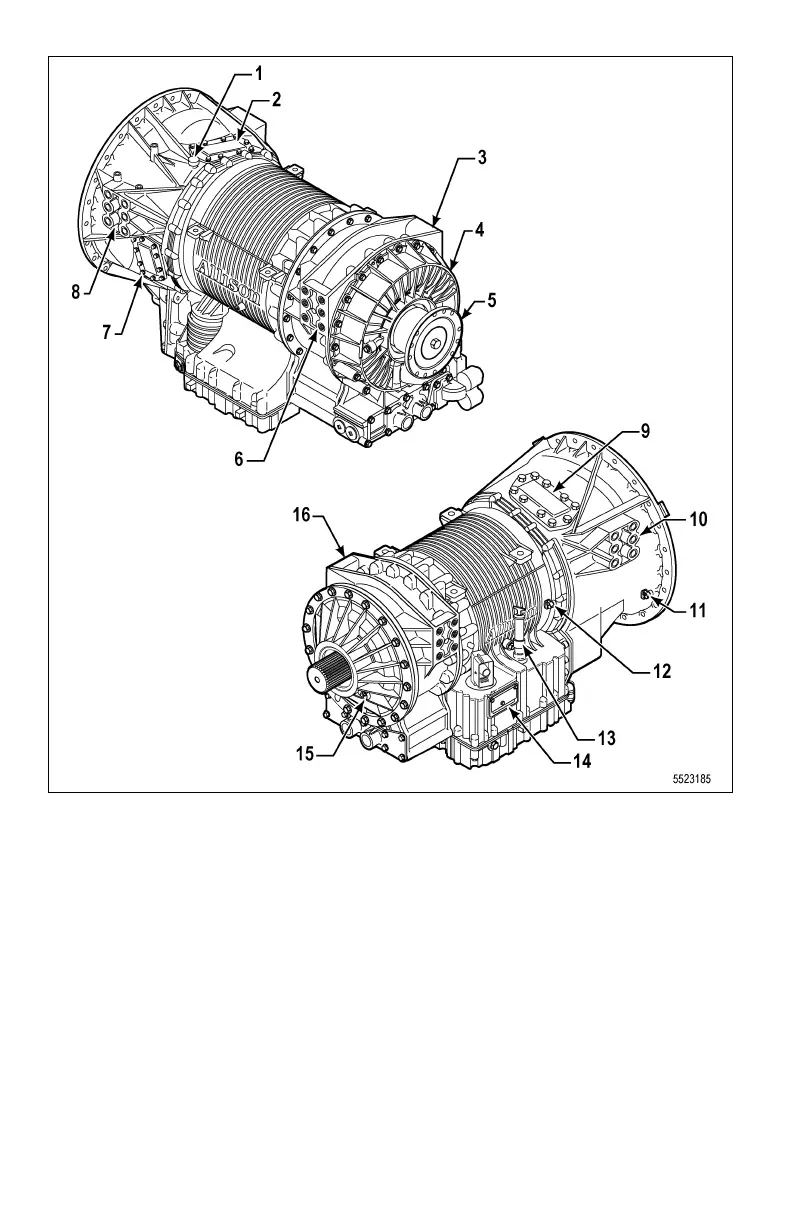

(1)–Breather
(2)–PTOProvision
(3)–C6AdapterHousing
(4)–Retarder
(5)–OutputFlange
(6)–MountingPad
(7)–PTOProvision
(8)–MountingPad
(9)–PTOProvision(T opRight
Position)
(10)–MountingPad
(11)–InputSpeedSensor
(12)–TurbineSpeedSensor
(13)–FillTube
(14)–Nameplate
(15)–OutputSpeedSensor
(16)–C6AdapterHousing
Figure2–6.4700/4800SerieswithPTOandRetarder(Left-RearView)
withPTOandwithoutRetarder(Right-RearView)
Typicalvocationsforthismodelinclude:
