(1)–MODEButton

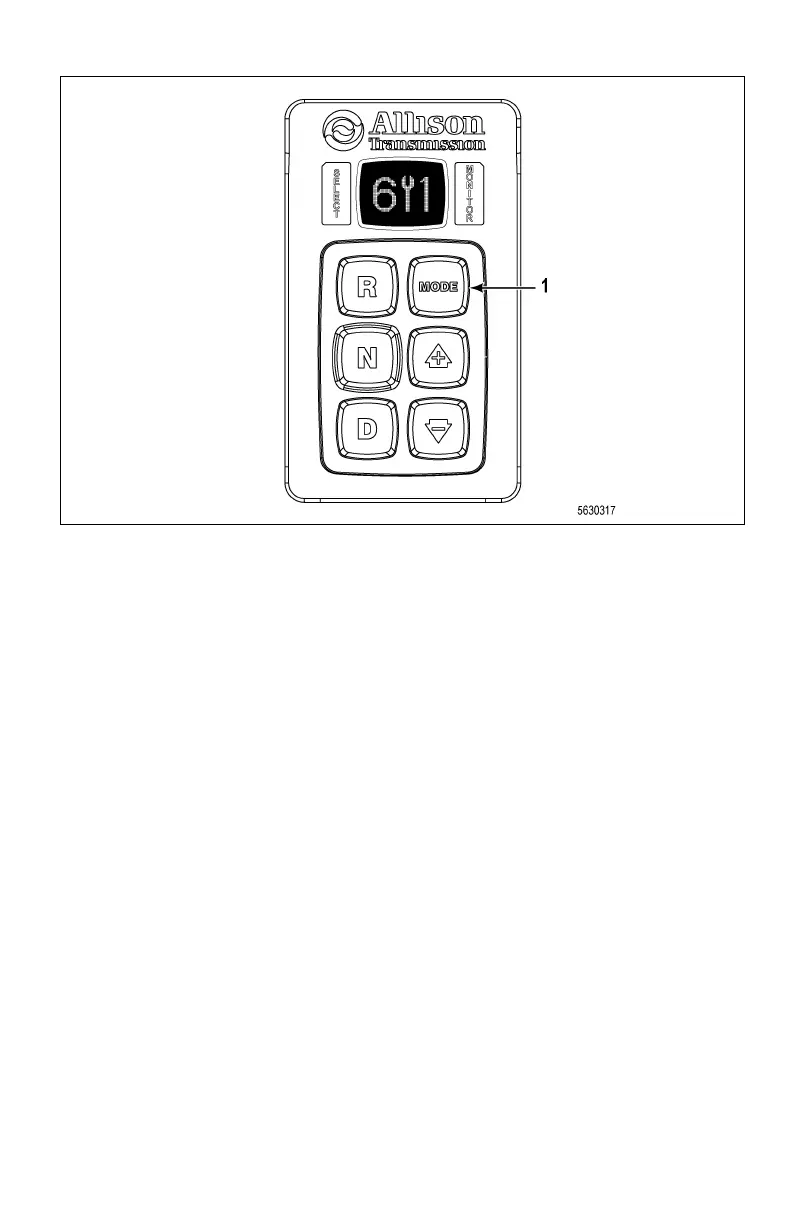

Figure7–2.MODEButtonandDisplayonaPushButtonShiftSelector

7.4TRANSSERVICEINDICATOR(WRENCHICON)

TheTRANSSERVICE(wrenchicon)indicatorilluminatesintheeventa

serviceconditionrelatingtoatransmissionclutch,uidorlterlifeoccurs.The

TRANSSERVICEindicatorislocatedontheshiftselectordisplay(referto

Figure7–3).

131
