(1)–FillTube
(2)–PTOProvision(T opRight
Position)
(3)–TorqueConverterModule
(4)–Engine-SpeedSensor
(5)–MountingPad
(6)–Turbine-SpeedSensor
(7)–Nameplate
(8)–SolenoidConnector
(9)–RetarderTemperature
Connector
(10)–Breather
(11)–MountingPads(BothSides)
(12)–PTOProvision
(13)–StandardRearCover
(14)–CoolerPorts
(15)–Main-PressureT ap
(16)–PTOProvision

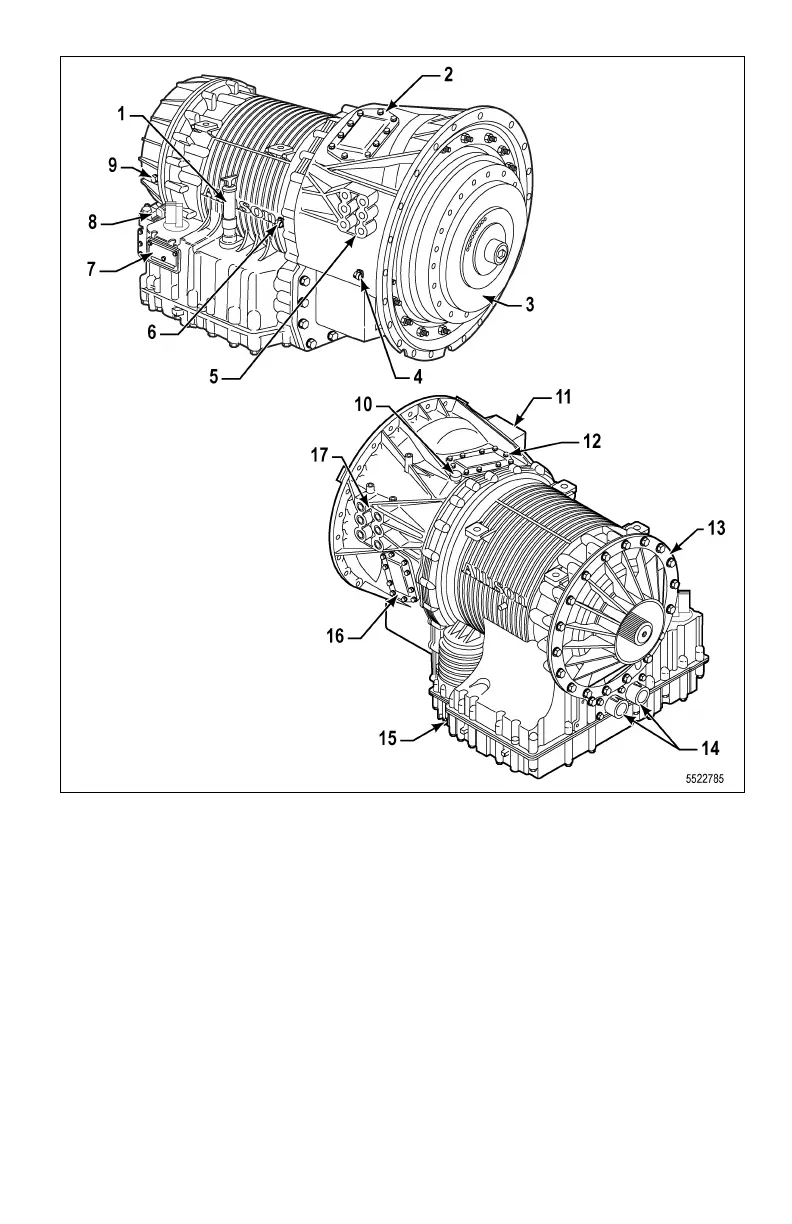

Figure2–5.4000/4200/4430/4440/4500/4600withPTOandRetarder
(Right-FrontView)withPTOandwithoutRetarder(Left-RearView)
27
