Allmatic HYPER 400 User Manual

3 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
1. GENERAL SAFETY WARNINGS
WARNING!
Before installing the product it is mandatory to read the document related to the GENERAL SAFETY WARNINGS
accompanying the product. Document 6-1620001. The additional sheet can also be downloaded from www.
allmatic.com.
Ambidextrous irreversible gearmotor for swing gates with doors up to 4.5 m long and up to 300kg.
The irreversibility of this gearmotor means that the gate does not require any type of electric lock for eective closure. The motor is
provided with thermal protection that in case of prolonged use momentarily interrupts the movement.
The HYPER motor provides great flexibility of installation as you can install it with the motor body facing down or up. It is also equip-
ped with internal mechanical stoppers (optional) totally hidden from view and adjustable through the appropriate external screws
that guarantee an elegant design.
2. DESCRIPTION
1
1. HYPER
2. Control unit
3. Key selector
4. Radio antenna
5. Flashing light
6. Photocell of external protection
7. Photocell of internal protection
8. Photocell column
9. Fixed mechanical stopper for opening
10. Fixed mechanical stopper for closing
1
2
3
4
5
6
7
8
8
9
9
10
Description:
6

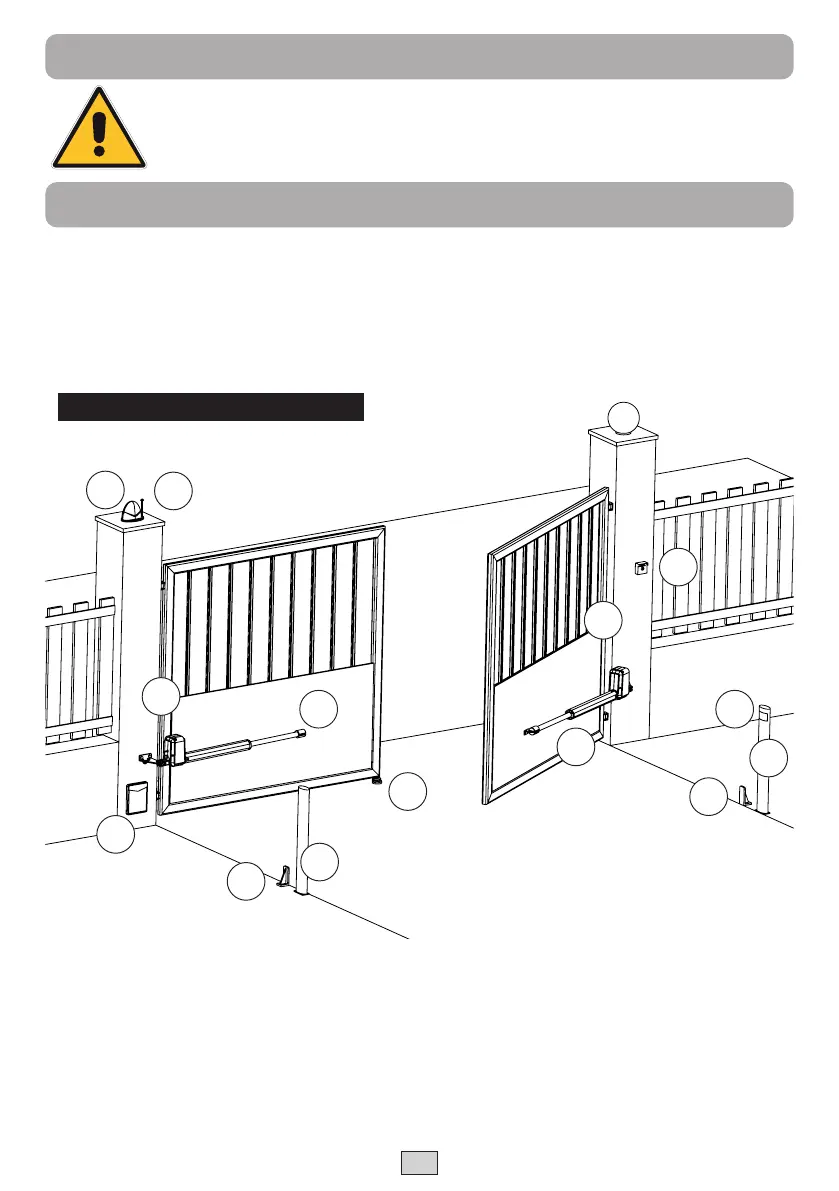

TYPICAL INSTALLATION
