WARNING! It is mandatory to conform the characteristics of the gate to the rules and laws in force. The door can be automated only
if it is in good condition and complies with EN 12604.
- The door shall not have pedestrian doors. Otherwise, precautions must be taken in accordance with point 5.4.1 of EN12453 (for
example, to prevent the movement of the motor when the door is open, thanks to a micro-switch properly connected in the control
unit).
- There is no need to generate entrapment points (for example, between the open door of the gate and the gate).
- There must be no mechanical stops above the gate because they are not sufficiently safe.
WARNING! The doors shall be firmly attached to the hinges of the columns, shall not flex during movement and shall move without
friction. Before installing the motor it is better to check all the space necessary to be able to install it.
TABLE 5 - Components to be installed according to EN12453
CONTROL TYPE
USE OF CLOSURE
Experienced
people (outside
public area*)
Experienced
people (public
area)
Unlimited use
dead man mode A B not possible
with visible impulses (e.g. sensor) E E E
with not visible impulses
(e.g. remote control)
E E E
automatic E E E
* typical example are the closures that do not access public street
A: Dead man mode (ie maintained action) control button.
B: Key selector with manned operation.
E: Photocells.
5. PRELIMINARY CHECKS

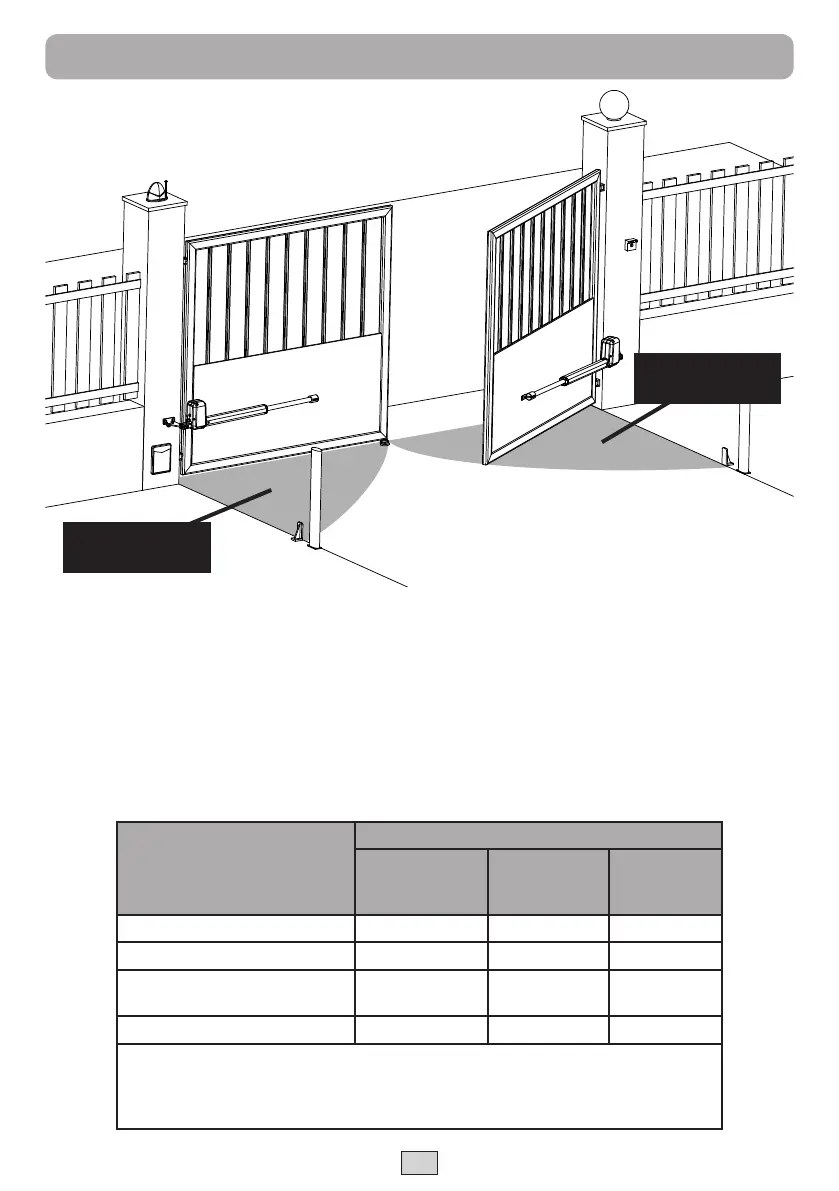

ZONE OF
ENTRAPMENT
ZONE OF
ENTRAPMENT
INTERNAL SIDE OF
THE PROPERTY
