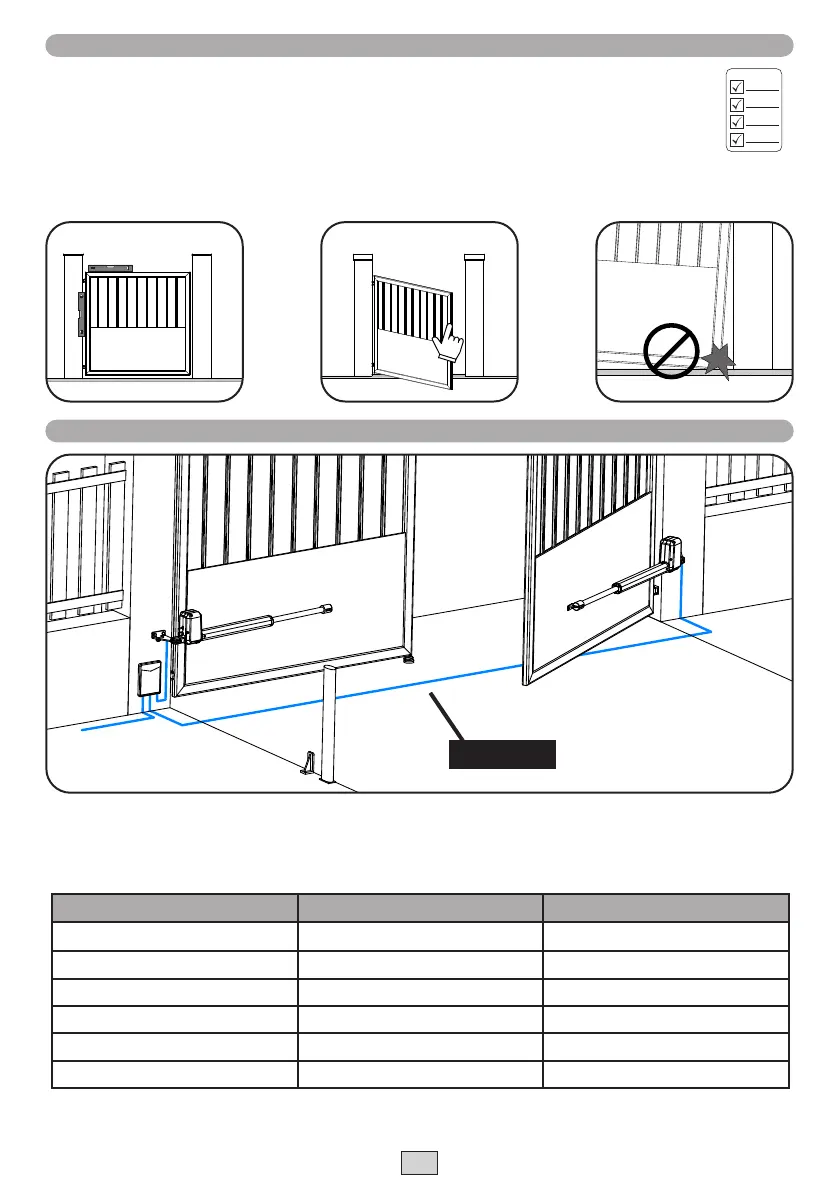

9 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
Before proceeding to the installation of the motor it is recommended to check the following on the gate:
The gate must be level
The gate must be in good condition
The gate must not have protuberances that collide with the ground or other objects
The gate must not hit or crawl the ground at any point of the race
The gate must be easily opened and closed for the full width of its run and must be supported only by its hinges
The gate must meet the weight and size requirements indicated in this manual
5.1 CHECKS ON THE GATE
5.2 PREPARATION OF THE INSTALLATION SITE
Prepare on the installation site the ducts for the passage of motor cables.
The cables for the connection of the various devices in a typical plant are listed in the table below and must be suitable for the type
of installation, for example we recommend a cable type H07RN-F for outdoor installation.
TABLE 6 - Cables to be used
CONNECTION CABLE MAXIMUM LENGTH
Power supply line 3 x 1,5mm² 20 m *
Motor 4 x 1,5mm² 10 m *
Flashing light 2 x 0,5mm² 20 m
Photocell - transmitter 2 x 0,5mm² 20 m
Photocell - receiver 4 x 0,5mm² 20 m
Key selector 4 x 0,5mm² 20 m
* If the cable exceeds 10 m, a cable with a larger section must be used and a safety grounding must be installed near the auto-
mation.
