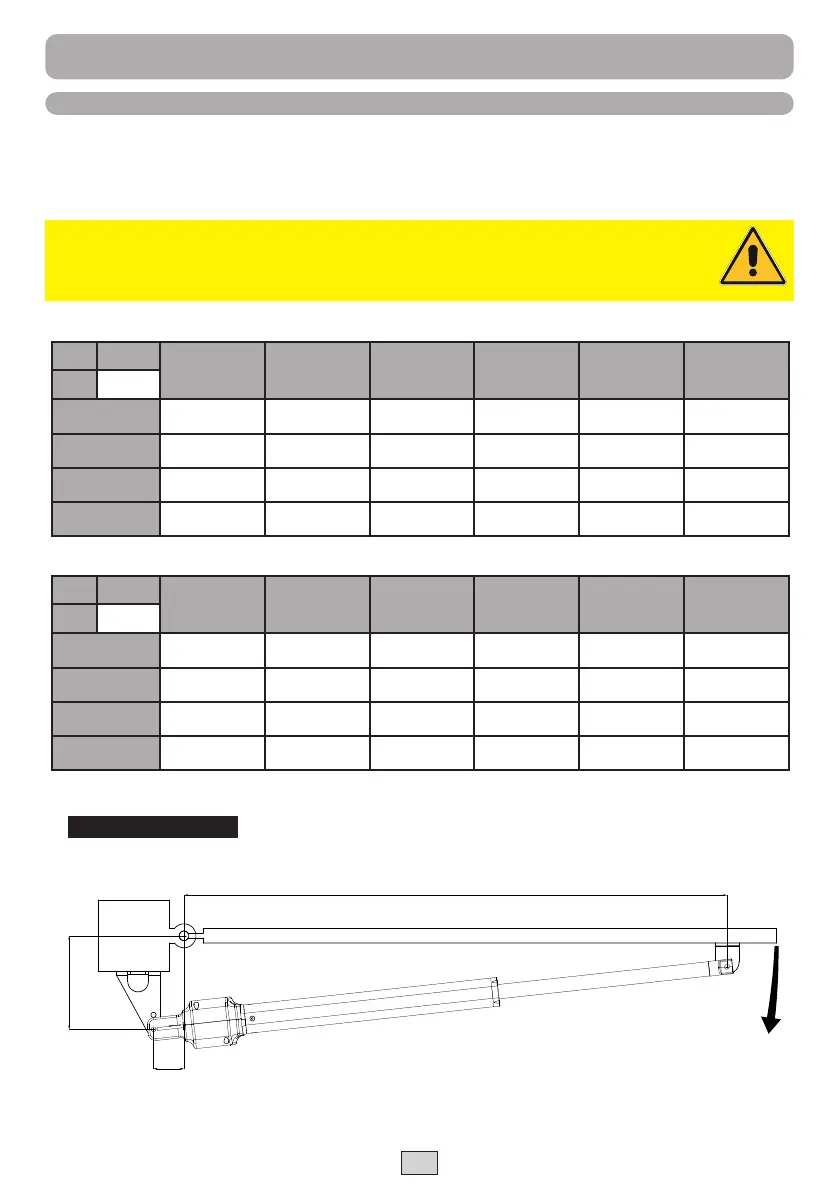

11 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
6. INSTALLATION
6.1 DETERMINE THE INSTALLATION MEASUREMENTS (OPENING INWARDS)
Before fixing the supplied brackets it is necessary to determine the installation dimensions A and B.
Start by putting the gate in position of "CLOSED DOOR".
Choose the sizes of A and B according to your installation and in order to obtain the desired degree of opening "α". This grade shown
in the table refers to the highest possible degree of openness with the corresponding dimensions.
To anchor the piston use the brackets provided.
TABLE 7 - HYPER 400 Recommended installation dimensions
A
155 160 165 170 175 180
B W ( α )
150 980 (110°) 982 (110°) 984 (110°) 985 (110°) 973 (104°) 968 (102°)
160 987 (108°) 992 (110°) 983 (105°) 978 (102°) 973 (100°) 968 (98°)
180 991 (100°) 986 (98°) 981 (96°) 976 (94°) 971 (93°) 966 (91°)
200 989 (92°) 984 (90°) 982 (90°) 981 (90°) 976 (88°) 964 (85°)
TABLE 8 - HYPER 600 Recommended installation dimensions
A
220 230 240 250 260 270
B W ( α )
220 1269 (110°) 1270 (110°) 1273 (110°) 1278 (110°) 1279 (110°) 1269 (107°)
240 1288 (110°) 1290 (110°) 1292 (110°) 1287 (107°) 1277 (104°) 1267 (101°)
260 1302 (108°) 1310 (110°) 1295 (104°) 1285 (101°) 1275 (99°) 1265 (97°)
280 1313 (105°) 1303 (101°) 1293 (98°) 1283 (96°) 1273 (94°) 1263 (92°)
A
B
W
TOP VIEW
INTERNAL SIDE OF
THE PROPERTY
EXTERNAL SIDE
OF THE PROPERTY
WARNING!
The values given in the following tables are indicative and have been calculated considering the ideal conditions with a
gate of medium size, with a uniformly distributed filling and with both the internal mechanical stoppers installed. Keep
in mind that values may vary slightly and must be checked in advance.
