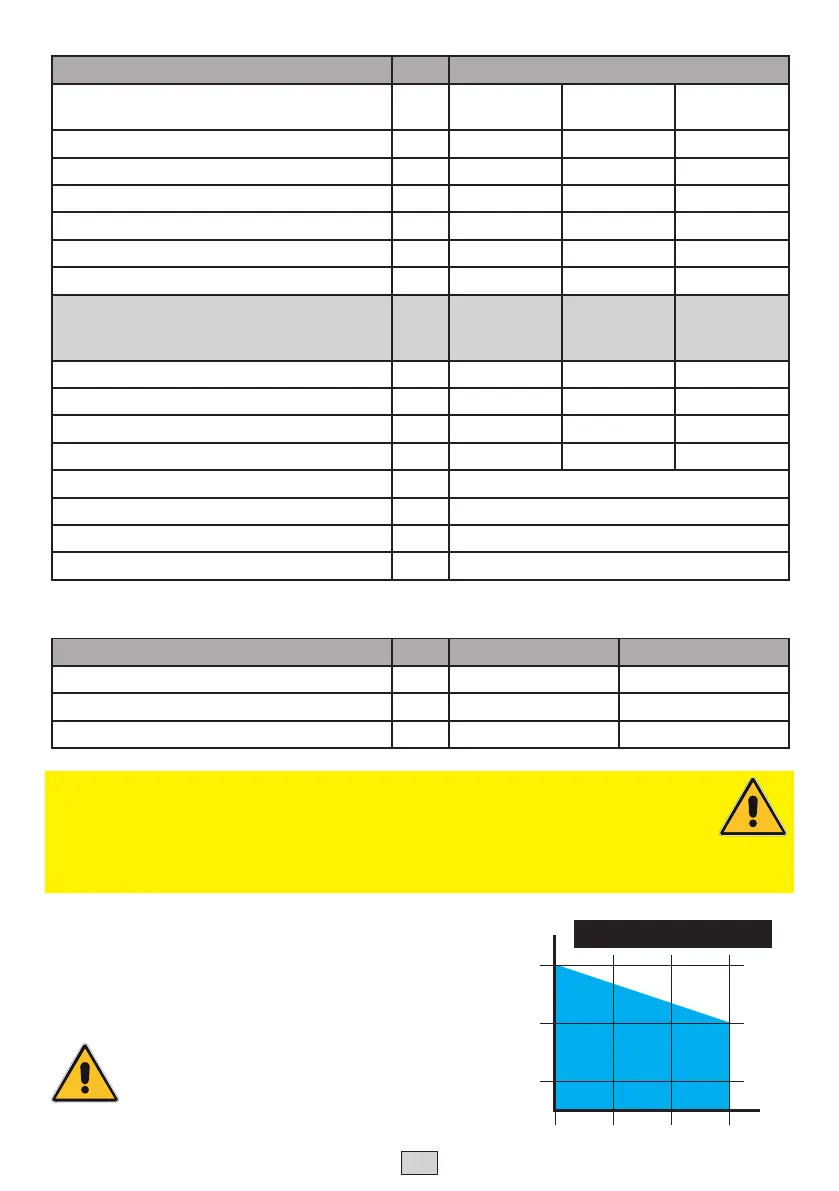

TABLE 3 - HYPER 600 technical characteristics
TECHNICAL CHARACTERISTICS U.M. HYPER 600
Recommended control board BIOS2 24 BIOS2 120 /
ECO
BIOS2 230 /
ECO
Supply voltage and frequency 24 Vdc 120Vac 60Hz 230Vac 50Hz
Motor absorption A 3 1 1
Motor power W 70 120 230
Capacitor μF -- 31,5 8
Motor speed rpm 1700 1750 1450
Average opening time (90°) sec. 25 25 30
Maximum gate size (Weight/Length) 100 kg / 4,5 m
140 kg / 3,5 m
200 kg / 2 m
150 kg / 4,5 m
190 kg / 3,5 m
250 kg / 2 m
200 kg / 4,5 m
240 kg / 3,5 m
300 kg / 2 m
Maximum thrust N 1600 2000 2000
Service % 70 50 50
Recommended daily cycles n° 100 100 100
Weight of the motor kg 7 8 8
Operating temperature °C -20°C ... +55°C
Degree of protection IP 44
Emergency release lever release with key
Internal mechanical stoppers optional
TABLE 4 - Stem stroke
AVAILABLE STEM STROKE U.M. HYPER 400 HYPER 600
Without mechanical stoppers mm 415 615
With 1 mechanical stopper (opening) mm 395 595
With 2 mechanical stoppers (opening and closing) mm 375 575
ATTENTION! ONLY FOR 24V MOTORS
IN NO CASE SHALL THE MAXIMUM WEIGHTS AND DIMENSIONS GIVEN IN THESE TABLES BE
EXCEEDED.
ALWAYS USE THE SLOWDOWNS SET BY THE CONTROL UNIT FOR THE MOVEMENT OF THE
GATE.
WARNING!
In the graph next to it is reported, as an explanatory example, the
relationship between weight and length of the door for the gearmo-
tor HYPER 400 230vac.
1,5 2,5 3
MT
kg
300
200
100
2
HYPER 400 230Vac
