TERMINAL BLOCKS

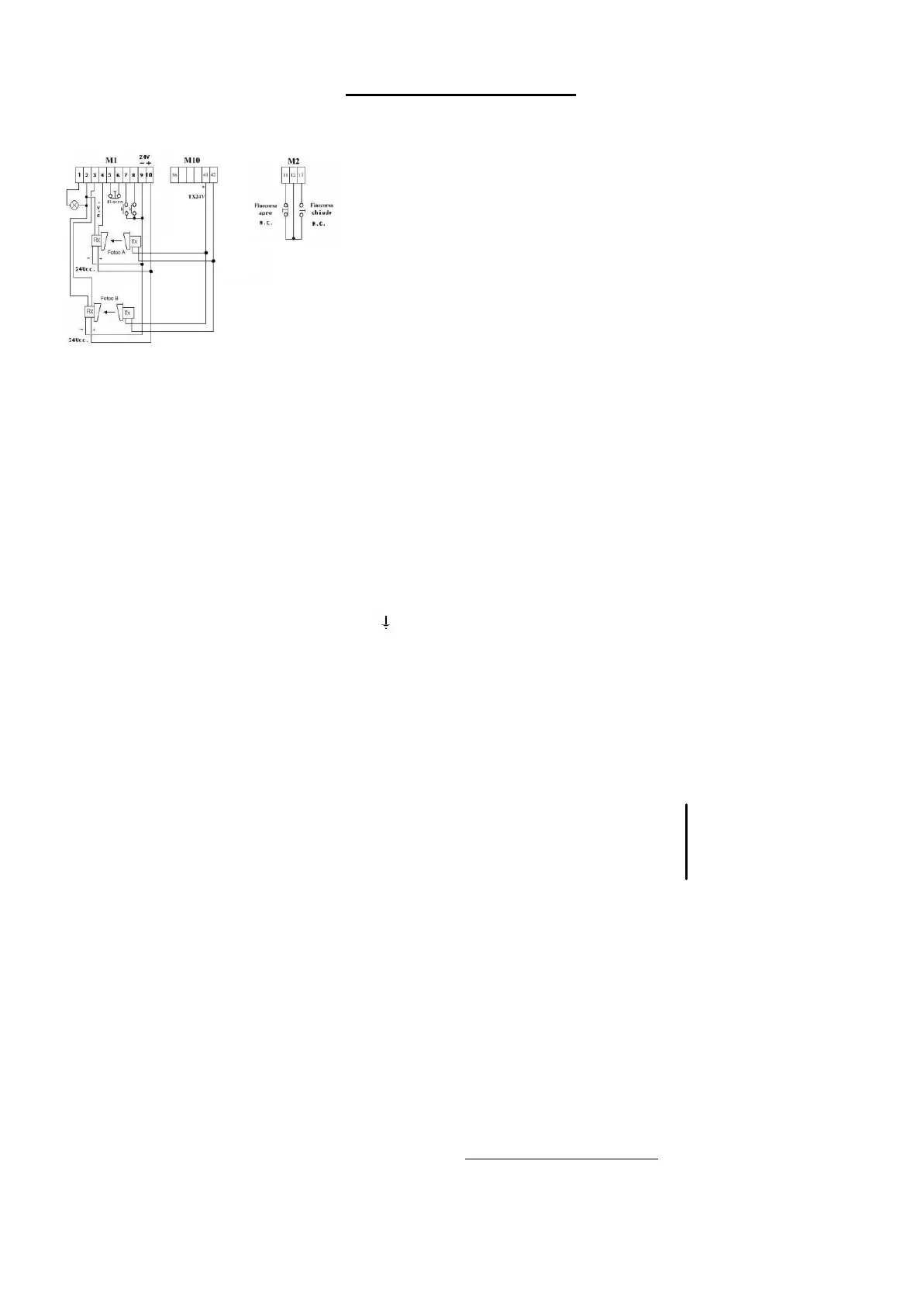

10 POLE TERMINAL BLOCK (M1):
01-02 = Light of Courtesy Exit of 24Vdc. 3W max.
02-03 = N.C. contact enter photocell Low
02-04 = N.C. contact enter photocell High
05-06 = N.C. block enter (electronic block)
07-09 = N.O. button enter of OPEN
08-09 = N.O. button enter of CLOSE
09-10 = Exit 24Vdc. 500mA max. (10 = + 24V)
3 POLE TERMINAL BLOCK (M2):
11-12 = N.C. End-run enter of OPEN (12 = common) - STOP OPEN
12-13 = N.C. End-run enter of CLOSE (12 = common) - STOP CLOSE
2 POLE TERMINAL BLOCK (M3): 14-15 = Blinker exit of 24Vac. max.25W
5 POLE TERMINAL BLOCK (M4): 16-17-18 = Exit contactors-drive (16 = Common / 17 = Open)
19-20 = Exit Blinker 230Vac max 30W
3 POLE TERMINAL BLOCK (M5): F-N = Input 230Vac
4 POLE TERMINAL BLOCK (M6): 22-23 = Input 24Vac (external supply with fuse)
24-25 = Input 18Vac
4 POLE TERMINAL BLOCK (M7): 26-27 = Input Arial RX Radio (27 = Hold)
28-29 = Exit from RX Radio Channel 2
6 POLE TERM. BLOCK (M8): 30-31 = Input N.C. Contact MUSHROOM
32-33 = N.O. button enter of OPEN
33-34 = N.O. button enter of CLOSE
33-35 = N.O. button enter of PEDESTRIAN
2 POLE TERMINAL BLOCK (M9): N.C. = semi-automatic - N.O.= automatic
5 POLE TERMINAL BLOCK (M10): 38-39 = LUC = Contact enter N.O. to disable the low photocell
and the DW in the last centimetres of closing (when N.C. disable).
39-40 = AP/CH = N.O. Buttom enter of OPEN/CLOSE Dynamic
With SW1 - Dip 4 at ON : Dynamic = at every impulse : Open – Block – Close – Open etc.)
With SW1 - Dip 4 at OFF: Dynamic = Open - Close (on end-run)
41-42 = TX24V = Supply Exit 24Vdc for photocells (for autotest)
Only photocells transmitter
+24Vdc. high
0V (-) low
= Input EARTH
Command on
Front Panel
