4. ASSEMBLY
4.1. Unpacking
Carefully unpack temperature control panel from the box and inspect for damage.
Any damages or shortages should be reported to the carrier and / or SHAW ALMEX EUROPE BV.
4.2. Functional Diagram
4.3.

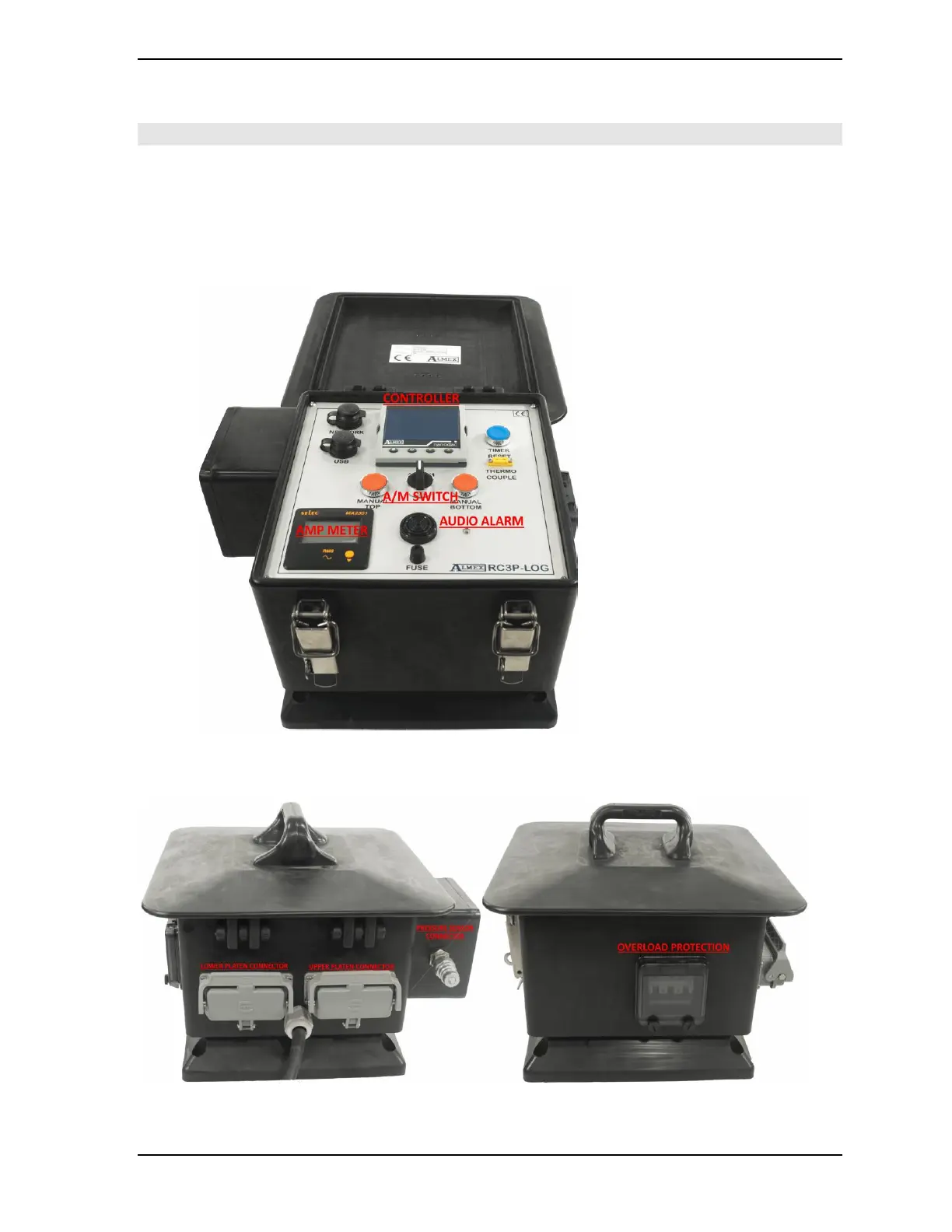

Figure 1.: Functional Diagram
Figure 2. : Backside RC3P-LOG Figure 3: Side RC3P-LOG
