Alpha ESS Co., Ltd.
Page 21 of 61

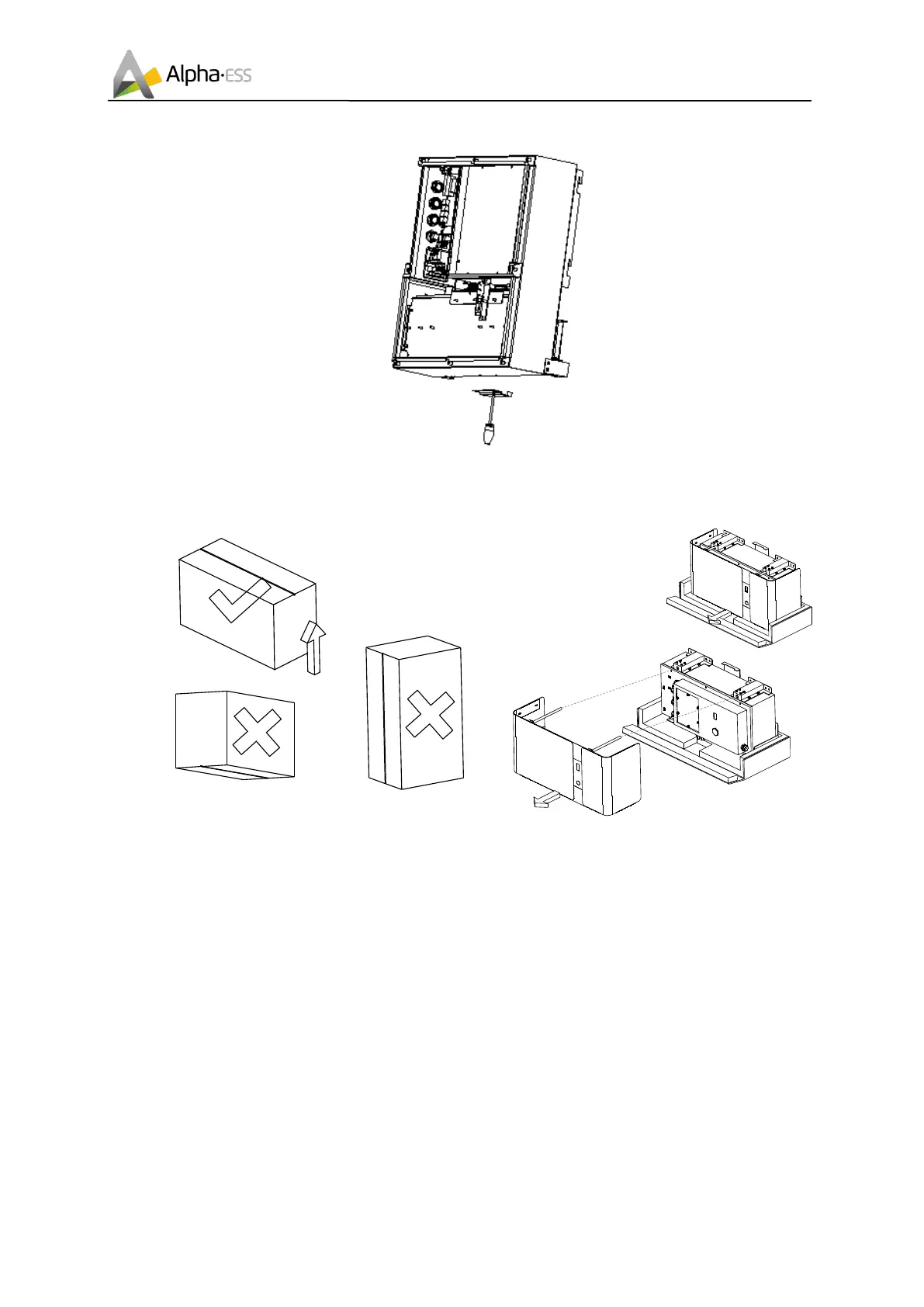

Figure 2.17 Installing positioner
Step 2: Install the position limiter on the bottom as shown in Figure 2.17.
Figure 2.18 Taking out the battery
Step 3: Open the battery package. Pull off the buckle located in the middle of the bottom. Pull the top
two guide rods to remove the front panel, as shown in Figure 2.18.
NOTE: The box must be placed in the direction of the label and only remove the packaging in
upwards direction. Removing the packaging in other directions is wrong.
