2.4.5.2 Electricity Meter ADL-3000 (if optional)
ADL-3000 connection (without CT, without Meterplug):

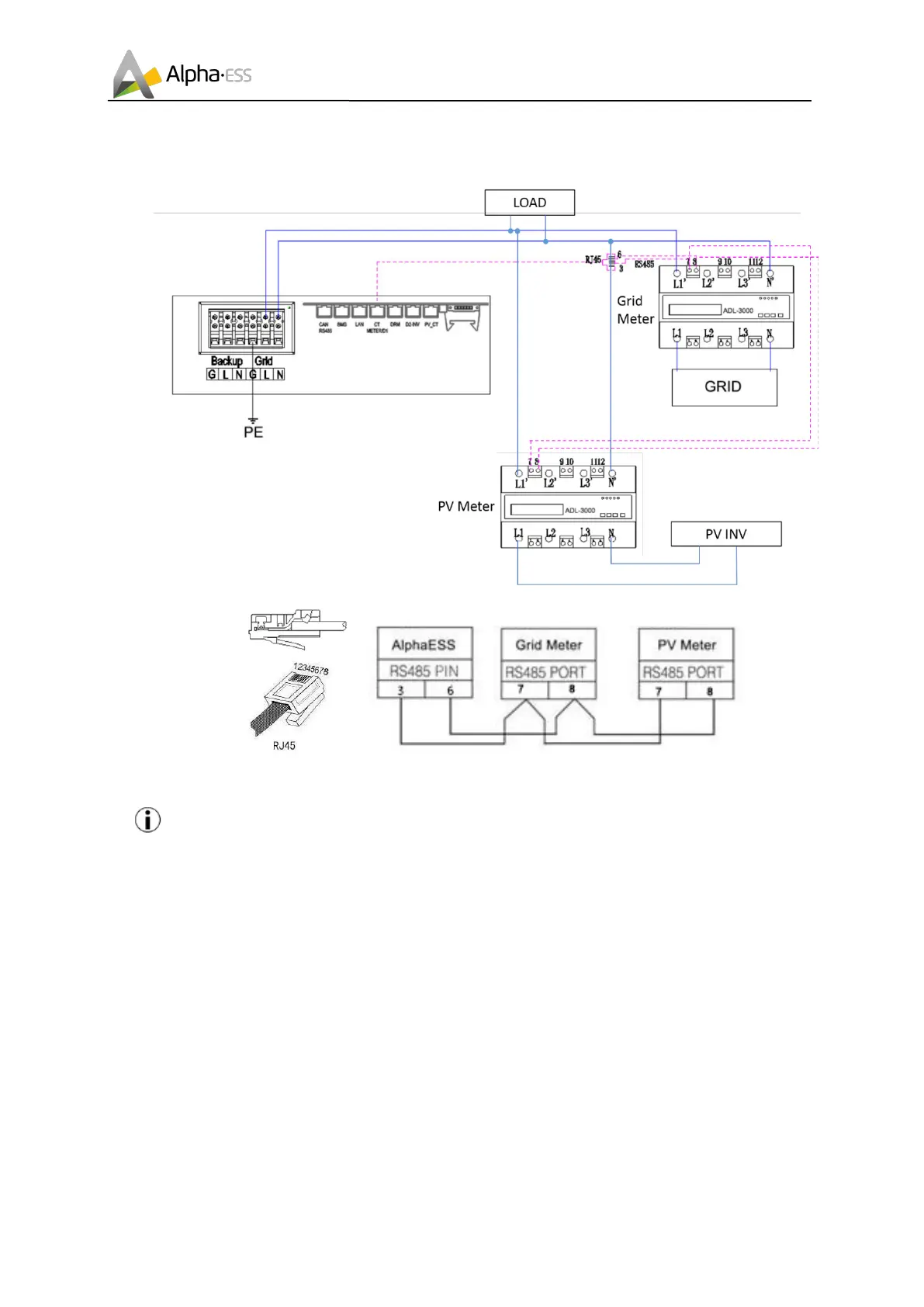

Figure 2.31 ADL-3000 connection (without CT, without meterplug)
Note: terminal 7, 8 connecting RJ-45 PIN 3, 6.
To Next Page
