ADL-3000 Connection (with CT and Meterplug):

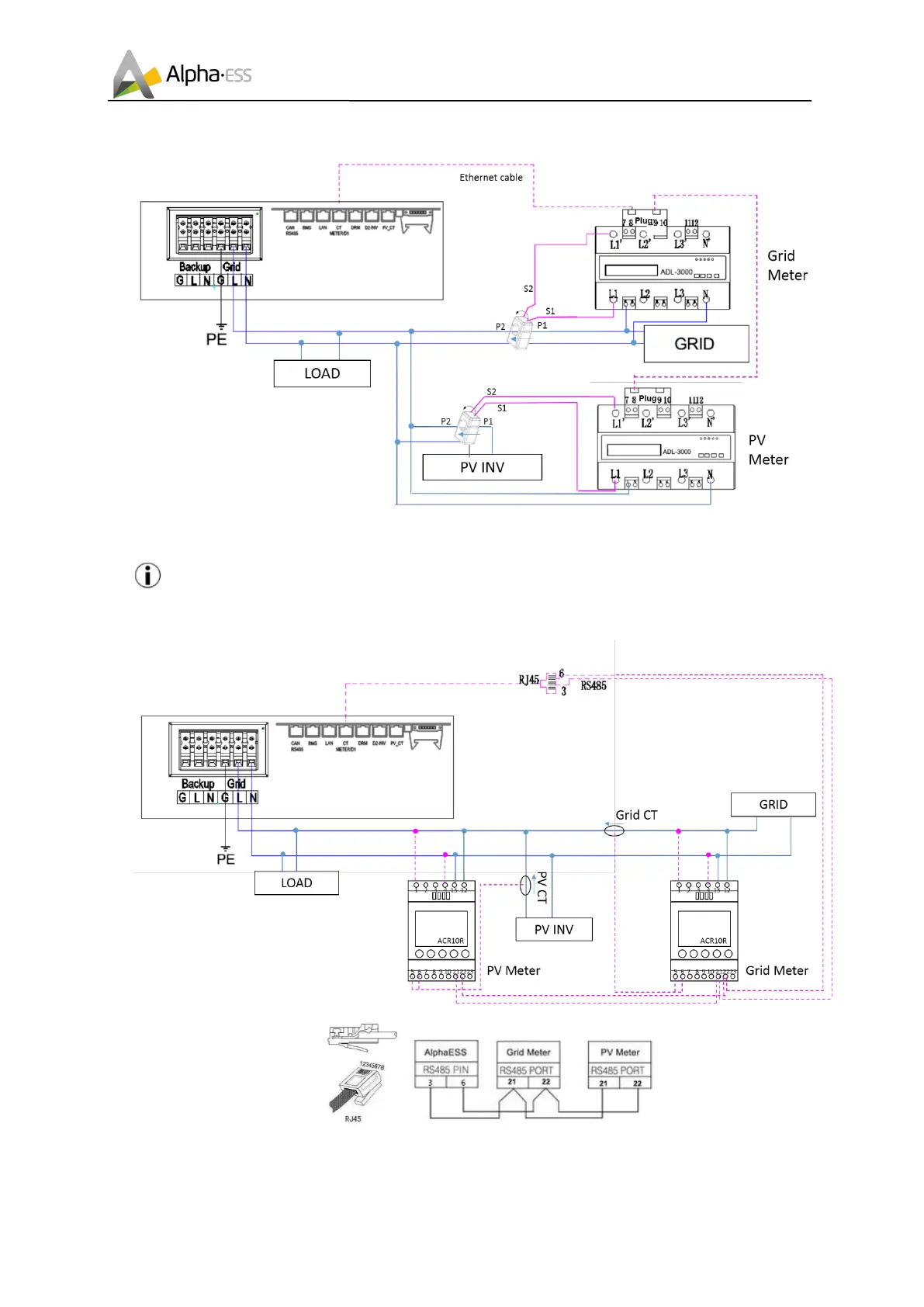

Figure 2.34 ADL-3000 Connection (with CT and meterplug)
Note: In AC system the both two meters' addresses should be set, please refer to 2.4.5.5.1.
2.4.5.3 Electricity meter ACR10R (if optional)
Figure 2.35 ACR10R Connection
