0170009-J0 Rev B
18

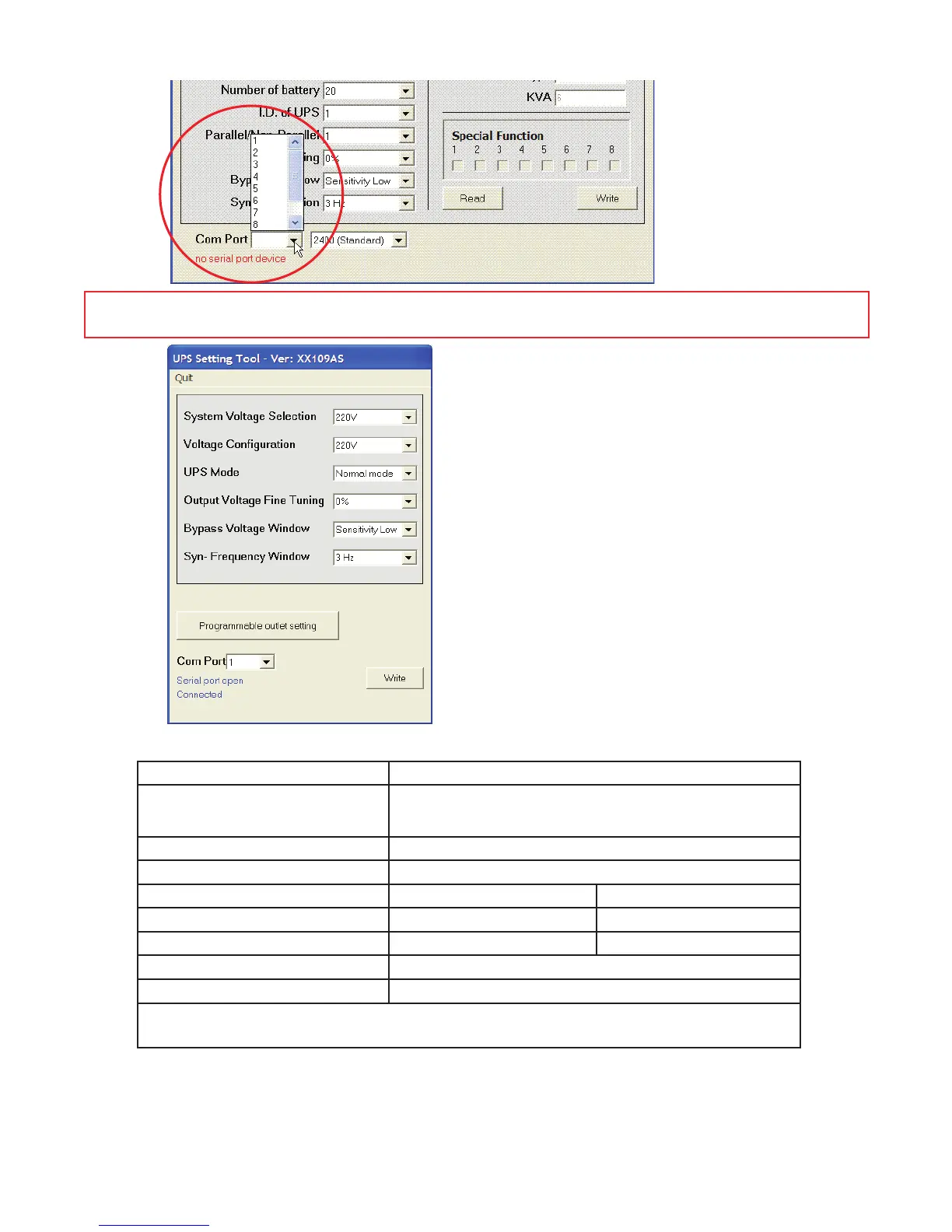

3. When serial communications are established between the UPS and your computer, the following
screen appears.
2. In the first UPS Setting Tool screen, select your computer's Com Port from the drop down menu.
4. Configure the settings as follows:
System Voltage Selection Select Input Voltage 110V* or 220V*
Voltage Congurations Select UPS Output Voltage
200V/208V/220V/230V/240V or
100V/110V/115V/120V/127V
UPS Modes Select Normal/ CF50** /CF60** Mode
Output Voltage Fine Tuning Output Voltage Regulation from 0 to ~±3%
Bypass Voltage Windows Sensitivity Low Sensitivity High
120V System 90V~130V 97V~130V
230V System 180V~260V 194V~260V
Syn-Frequency Window Select 3Hz/ 1Hz Inverter Freq synchronizing range
Com Port Displays curent PC Com Port
*Select 110V for a 120V input; select 220V for a 230V input
**CF50/ CF60 = Frequency Converter mode 50 to 60Hz or vice versa
5. Click Write to confirm the configuration settings. The UPS beeps twice if the new settings are saved
successfully. Note that the settings do not take effect until you restart the UPS at the end of this
section.
