5.2.4 UPS Default Data and Special Function Execution
To run a self test or check default data, press the Function button to scroll to screen P1.
P1
Q1
R1
P2
Q2
R2

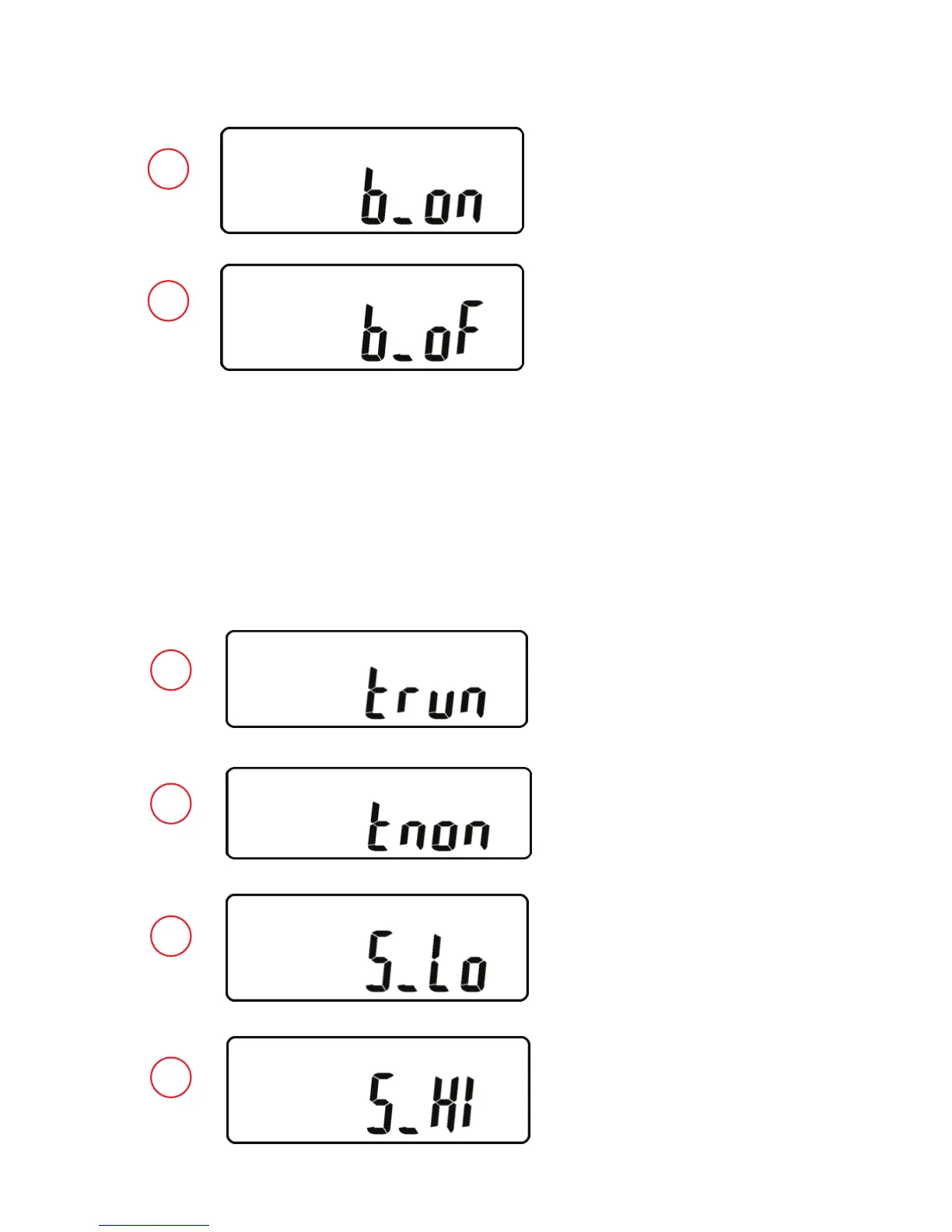

Press the DOWN button to scroll through the LCD screens and check the UPS settings. The LCD display
shows the following screens in sequence:
• Screen P1 (buzzer)
• Screen Q1 (self test)
• Screen R1 (Bypass Voltage)
• Screen S (Output Frequency Synchronized Window)
• Screen T (Inverter Output Voltage)
• Screen U1 (UPS Operation Mode)
• Screen V (Output Voltage Fine Tuning)
