6

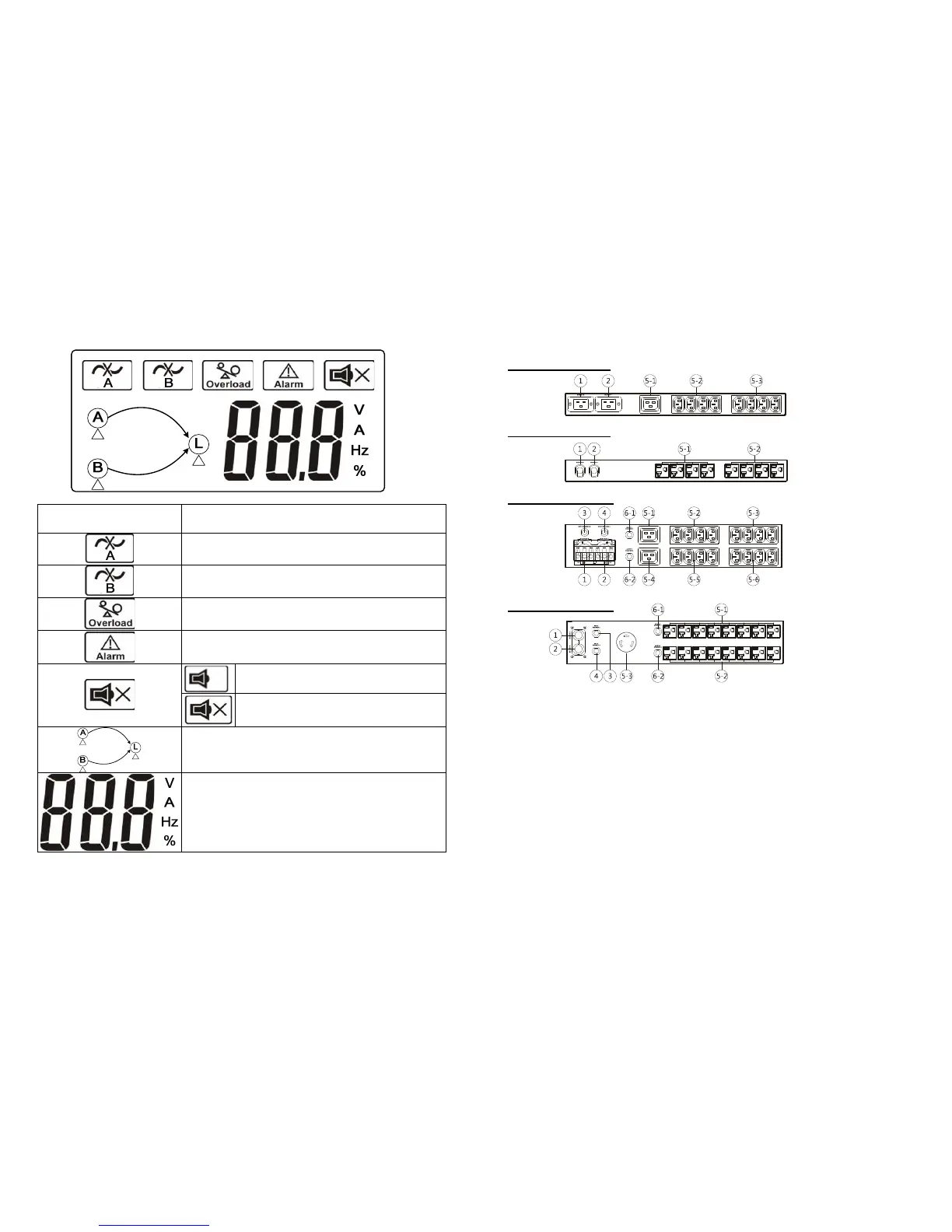

3.3.2. LCD
Symbol Description/function
Input A error or power failure
Input B error or power failure
Overload
System malfunction or abnormal
Alarm on
Alarm off
Digital display showing input/output power
connected to load
ATS numeric display
7
3.3.3. Rear Panel
ATS-216(230V-16A)
ATS-120(120V-20A)
ATS- 232(230V-32A)
ATS- 130(120V-30A)
○
,1 Power input (B)
○
,5 Output socket
○
,2 Power input (A)
○
,6 Output breaker
○
,3,
○
,4Input breaker (optional, sold separately)
