MOUNTING THE RADIATOR

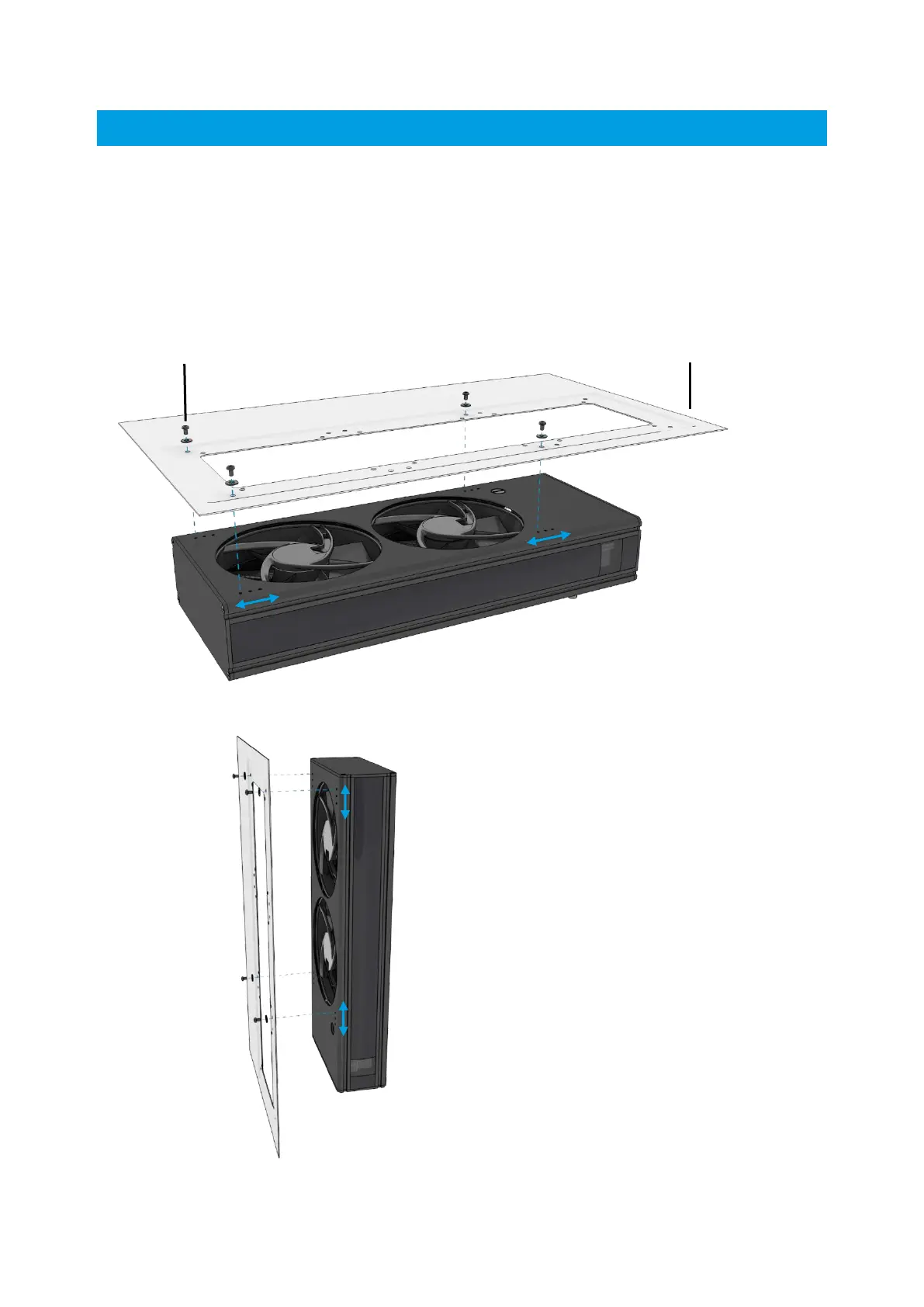

HORIZONTAL MOUNTING
Mount the Eisbaer Extreme ensuring that the the fans point upwards. This is important to
ensure that the integrated pump is not damaged.
Choose the appropriate M3 screws (5 mm or 25 mm length), depending on your PC case.
The additional mounting holes offer even more flexibility for alignment in the case.
VERTICAL MOUNTING
4x M3 screws + washers
case top panel
Vertical mounting is also possible. Make sure that the
reservoir is at the bottom of the case as seen in the
picture (with the window at the bottom). This will
ensure the pump does not get damaged.
