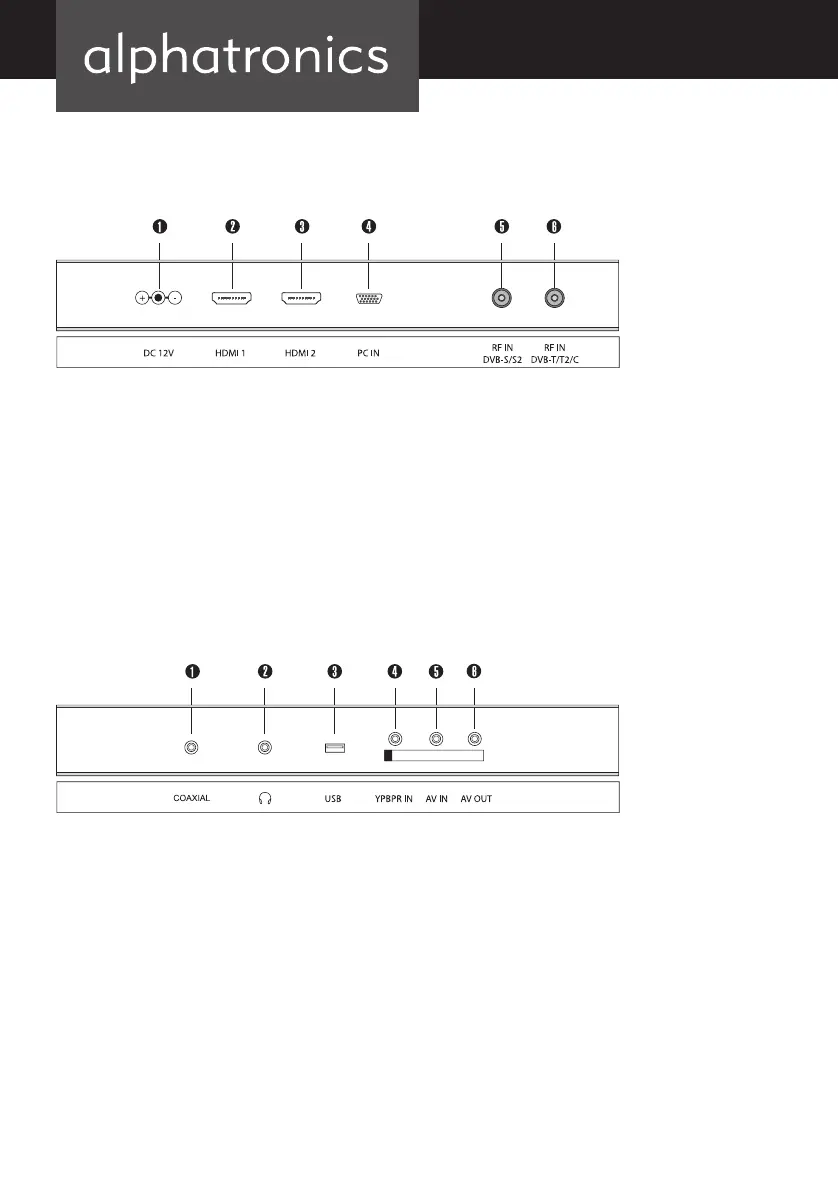

SL-32 DSB+: Rear Panel

1 DC In 4 PC IN Input Terminal

2 HDMI Input Terminal 5 DVB-S / S2 Input Terminal

3 HDMI Input Terminal 6 DVB T / T2 / C Input Terminal

SL-32 DSB+: Side Panel

1 COAXIAL Output Terminal 4 YPbPr Input Terminal

2 Headphone Output Terminal 5 AV Input Terminal

3 USB Input Terminal 6 AV Output Terminal
