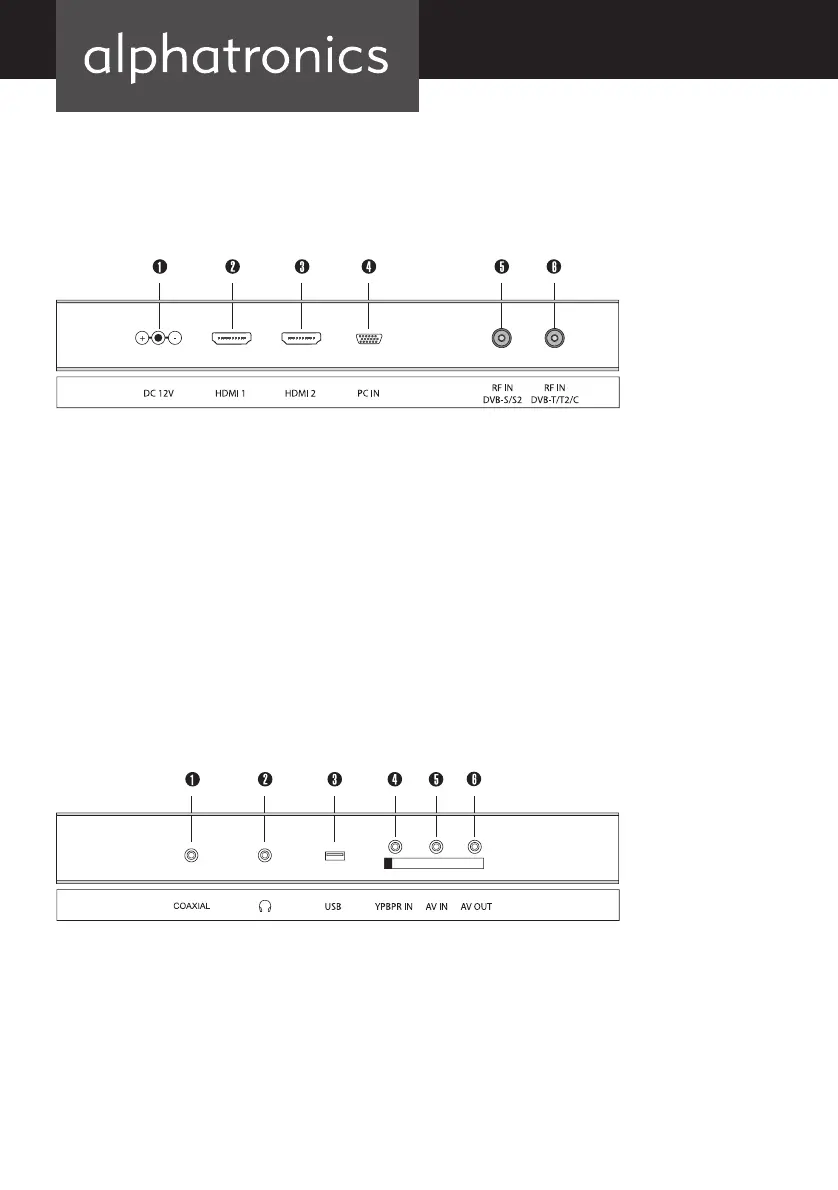

T-19 SB+ | T-22 SB+ | SL-19 DSB+ | SL-22 DSB+ | SL-24 DSB+ | SL-19 SB+ | SL-22SB+ | SL-24 SB+:
Rear Panel
1 DC In 4 PC IN Input Terminal
2 HDMI Input Terminal 5 DVB-S / S2 Input Terminal
3 HDMI Input Terminal 6 DVB T / T2 / C Input Terminal
T-19 SB+ | T-22 SB+ | SL-19 DSB+ | SL-22 DSB+ | SL-24 DSB+ | SL-19 SB+ | SL-22SB+ | SL-24 SB+:
Side Panel
1 COAXIAL Output Terminal 4 YPbPr Input Terminal
2 Headphone Output Terminal 5 AV Input Terminal
3 USB Input Terminal 6 AV Output Terminal
