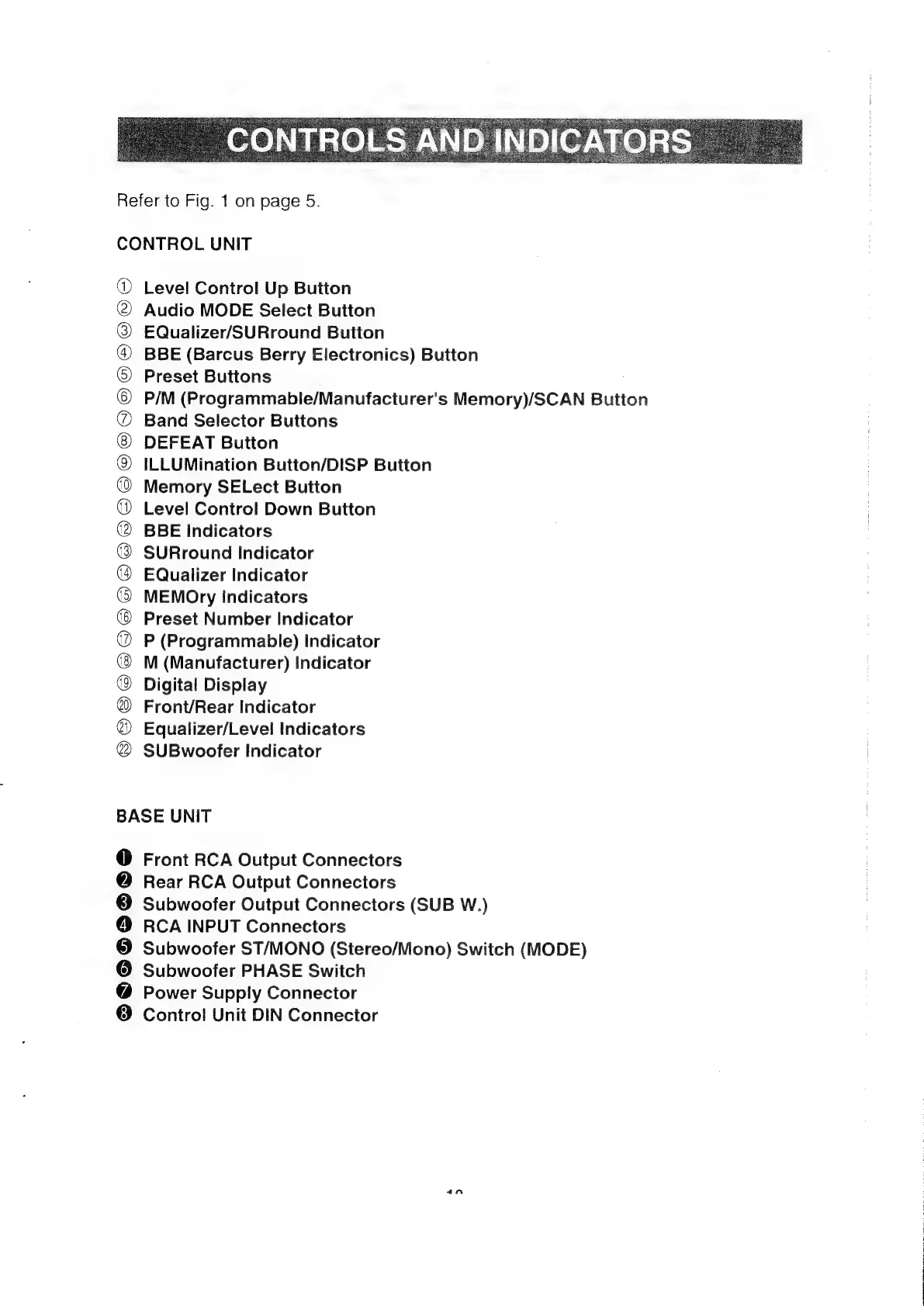

Refer to Fig. 1 on page 5.
CONTROL UNIT
Level Control Up Button
Audio MODE Select Button
EQualizer/SURround Button
BBE (Barcus Berry Electronics) Button
Preset Buttons
P/M (Programmable/Manufacturer's Memory)/SCAN Button
Band Selector Buttons
DEFEAT Button
ILLUMination Button/DISP Button
Memory SELect Button
Level Control! Down Button
BBE Indicators
SURround Indicator
EQualizer Indicator
MEMOry Indicators
Preset Number Indicator
P (Programmable) Indicator
M (Manufacturer) Indicator
Digital Display
Front/Rear Indicator
Equalizer/Level Indicators
@ SUBwoofer Indicator
B® O@QVAGDAAQOAPO@BVIOOHONOE
BASE UNIT
@ Front RCA Output Connectors
@ Rear RCA Output Connectors
® Subwoofer Output Connectors (SUB W.)
® RCA INPUT Connectors
© Subwoofer ST/MONO (Stereo/Mono) Switch (MODE)
© Subwoofer PHASE Switch
@ Power Supply Connector
® Control Unit DIN Connector
