FUSES
5
Practical advice - 191
Nomenclature
2
Passenger compartment ECU
3
Passenger side window control
4
Driver's electric window
8
Service relay
9
Electric heating, cruise control/
speed limiter, Park Assist, heated rear
screen (relay)
10
Heated rear screen
11
De-icing of electric door mirrors
13
Right-hand main beam headlight,
left-hand dipped beam headlight, left-
hand side light
16
Accessories socket
17
Light stalk
18
Horn
19
Brake lights
20
Radio, multimedia accessories
socket
21
Audio amplifier
22
Front windscreen wiper
24
Left-hand main beam headlight,
right-hand dipped beam headlight,
right-hand side light
25
Rear fog lights, registration plate
lights
26
ABS/ESC brake lights unit
27
Interior lighting, bonnet lighting,
luggage compartment lighting,
gearbox, one-touch window winder
28
Rain sensor, light sensor, engine
start button
29
Electric rear view mirror
30
Passenger compartment unit,
injection unit, fuel pump, ignition coils,
starter
31
Airbag unit
33
Electric power-assisted steering
34
Radio, diagnostic socket
35
Electric windows, radio, audio
amplifier, multimedia accessories
socket, brake lights
35
interior lighting, luggage
compartment lighting, bonnet lighting,
air conditioning, gearbox, engine start
button, rain sensor/light, ESC/ ABS
unit
36
Energy management central unit,
telematics unit
37
Direction indicator lights, electronic
parking brake control, cruise control
38
Opening elements - locking /
unlocking
39
Energy management central unit
41
Alarm, lighting stalk, horn
42
Instrument panel unit
43
Gearbox
45
Heated seats
46
Interior rear view mirror
47
Passenger compartment unit, wipe/
wash stalk
Some functions are protected by
fuses, located:

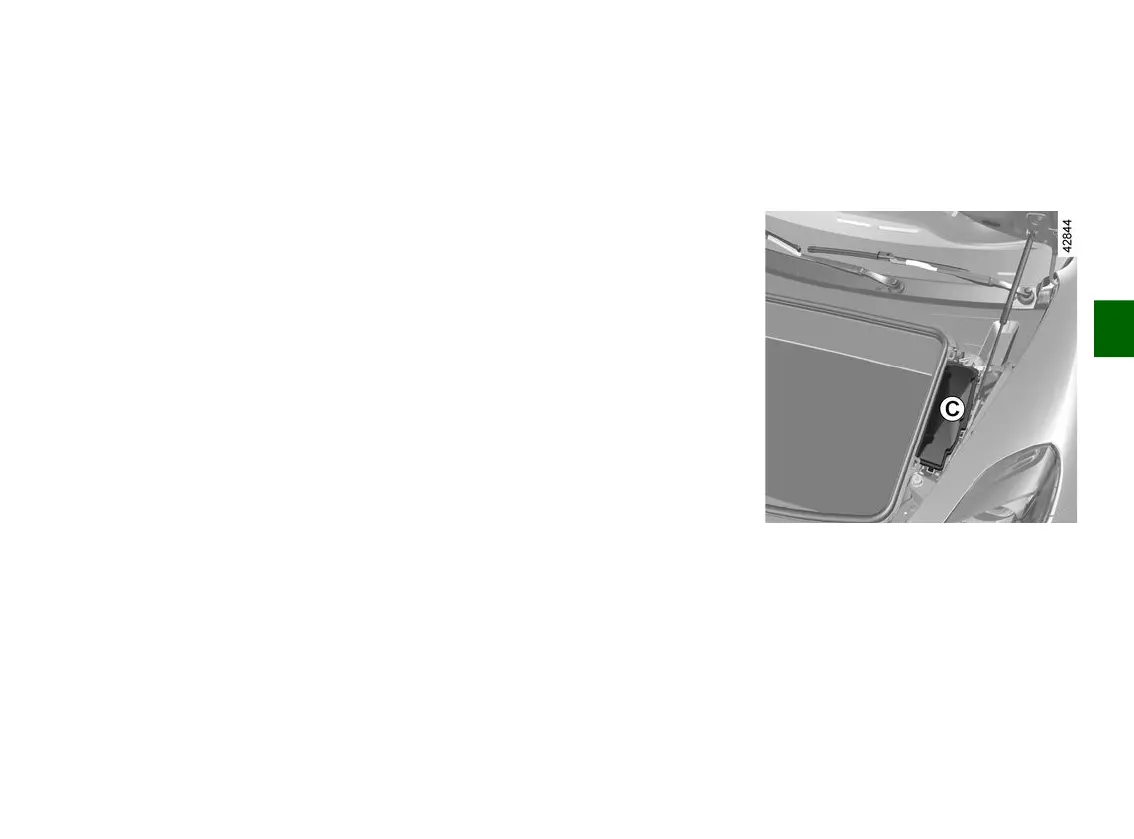

– in the front compartment (in unit
C
);
– in the rear engine compartment (in
unit
D
).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer.
