6-EN
* The illustrator is for CDE-114BTi.
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• FULL SPEED Connection Cable
(CDE-112Ri/CDE-114BTi only) .................................................1
• Microphone (4 m) (CDE-113BT/CDE-114BTi only) .................1
• Mounting Sleeve ......................................................................1
• Carrying Case............................................................................1
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
1
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except and
(Release).
1
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
1
Press SOURCE to change the source.
TUNER DISC USB AUDIO iPod
*1
/AUX+
*2
BT AUDIO
*3
AUX
*4
TUNER
*1 Only when the iPhone/iPod is connected and AUX+ SETUP is
set to OFF, refer to “Setting the AUX+ SETUP Mode” on
page 19.
*2 Displayed only when AUX+ SETUP is set to ON, refer to
“Setting the AUX+ SETUP Mode” on page 19.
*3 Only for CDE-111R/CDE-111RM/CDE-112Ri and BT IN is set
to BT ADAPTER. Refer to “BLUETOOTH Setting” on page 17.
*4 Refer to “Using the Front AUX Input Terminal (CDE-112Ri/
CDE-113BT/CDE-114BTi only)” on page 15.

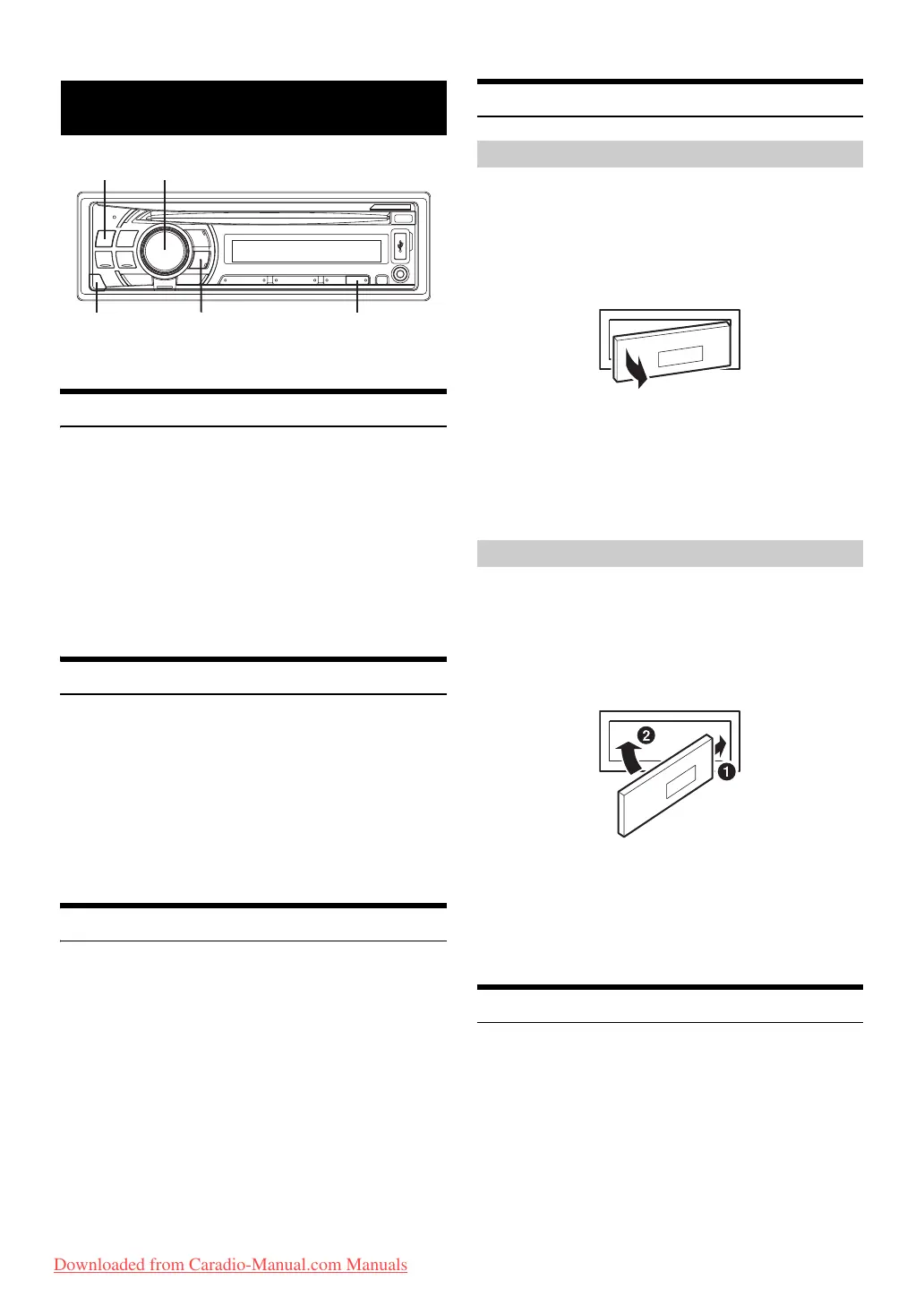

Detaching and Attaching the Front Panel
1
Turn off the unit power.
2
Press (Release) at the lower left side until the front
panel pops out.
3
Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1
Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2
Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Initial System Start-Up
Be sure to press the RESET switch when using the unit for the first time,
after changing the car battery, etc.
1
Turn off the unit power.
2
Remove the detachable front panel.
Getting Started
SOURCE/
6/DIMMER
FUNC./SETUP
Rotary encoder
Detaching
Attaching
