45-EN

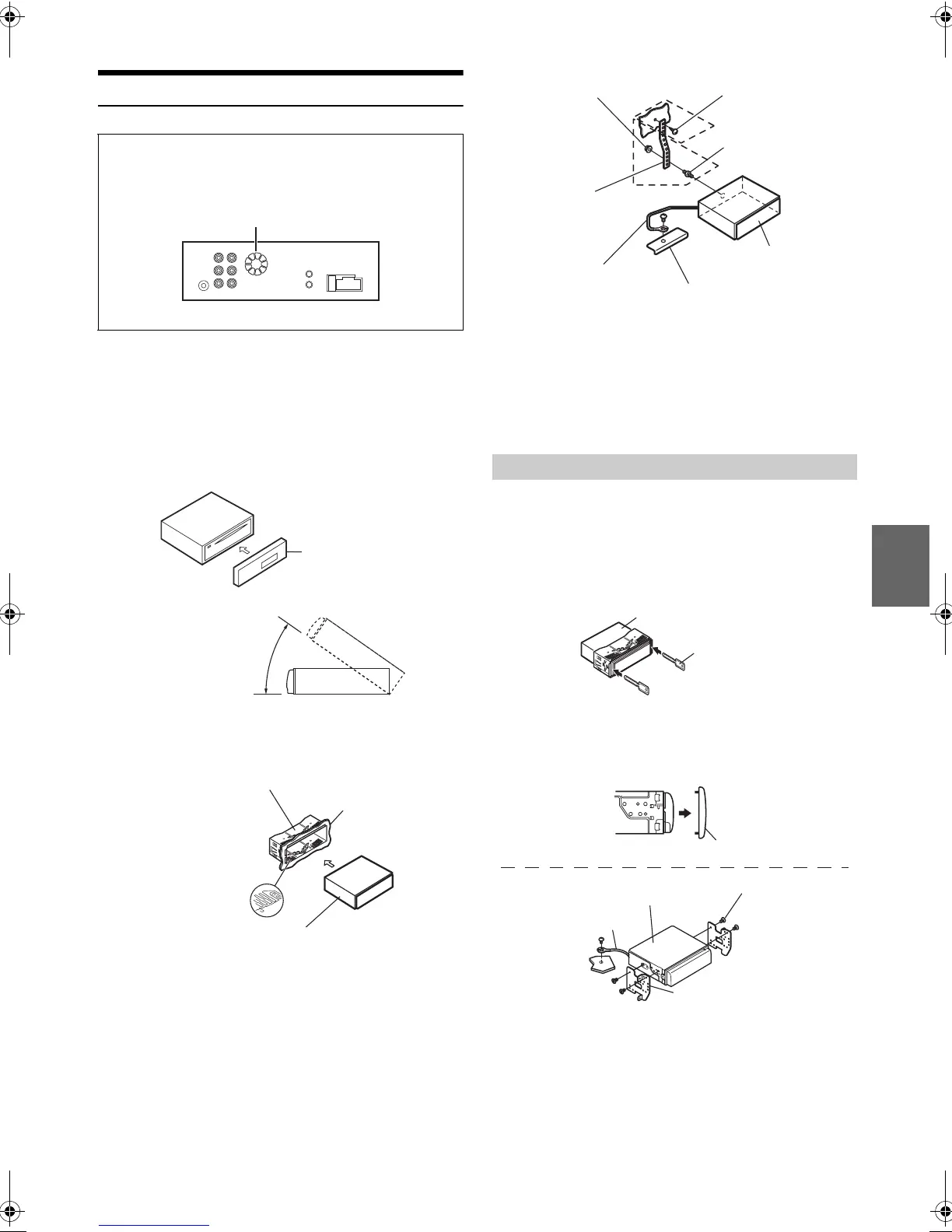

Installation
CAUTION
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1
Remove the mounting sleeve from the main unit (Refer to
“Removal” on page 45).
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
Reinforce the head unit with the metal mounting strap
(not supplied). Secure the ground lead of the unit to a
clean metal spot using a screw (
*1
) already attached to the
vehicle’s chassis.
Connect each input lead coming from an amplifier to the
corresponding output lead coming from the left rear of the
CDE-148EBT/CDE-145E. Connect all other leads of the
CDE-148EBT/CDE-145E according to details described in the
CONNECTIONS section.
Note
•For the screw marked “
*2
”, use an appropriate screw for the chosen
mounting location.
3
Slide the CDE-148EBT/CDE-145E into the dashboard until
it clicks. This ensures that the unit is properly locked and
will not accidentally come out from the dashboard. Install
the detachable front panel.
1
Remove the detachable front panel.
2
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
Note
• Secure the ground lead of the unit to a clean metal spot using a screw
(
*3
) already attached to the vehicle’s chassis.
Caution
Do not block the unit’s fan or heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the unit and may
cause a fire.
Rear of the Unit
Air ventilation hole
Detachable Front
Panel
Less than 35°
Dashboard
Mounting Sleeve (Included)
Pressure Plates*
This unit
Removal
*
2
*
1
Bolt Stud
Chassis
Ground Lead
Hex Nut (M5)
Metal
Mounting
Strap
Screw
This unit
Bracket keys
(Included)
This unit
*
3
Front Frame
Screws (M5 × 8)
(Included)
This unit
Ground Lead
Mounting Bracket
00ALPINE.book Page 45 Friday, January 11, 2013 10:01 AM
