Alpine CDE-174BT User Manual

9-EN
* The illustration is for CDE-173BT.
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• USB extension cable (CDE-174BT only) ..................................1
• Mounting Sleeve ......................................................................1
• Carrying Case............................................................................1
• Bracket Key ...............................................................................2
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except  and
e (Release).
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER  DISC
*1
 USB AUDIO/iPod
*2
 BT AUDIO
*3

AUXILIARY
*4
 TUNER
*1 Only for CDE-174BT/CDE-173BT.
*2 Only when the iPod/iPhone is connected.
*3 Only when BT IN is set to ON. Refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 24.
*4 Only when AUX SETUP is set to ON. Refer to “Setting the AUX
SETUP mode” on page 22.
Detaching and Attaching the Front Panel
1 Turn off the unit power.
2 Press e (Release) at the lower left side until the front
panel pops out.
3 Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1 Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2 Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.

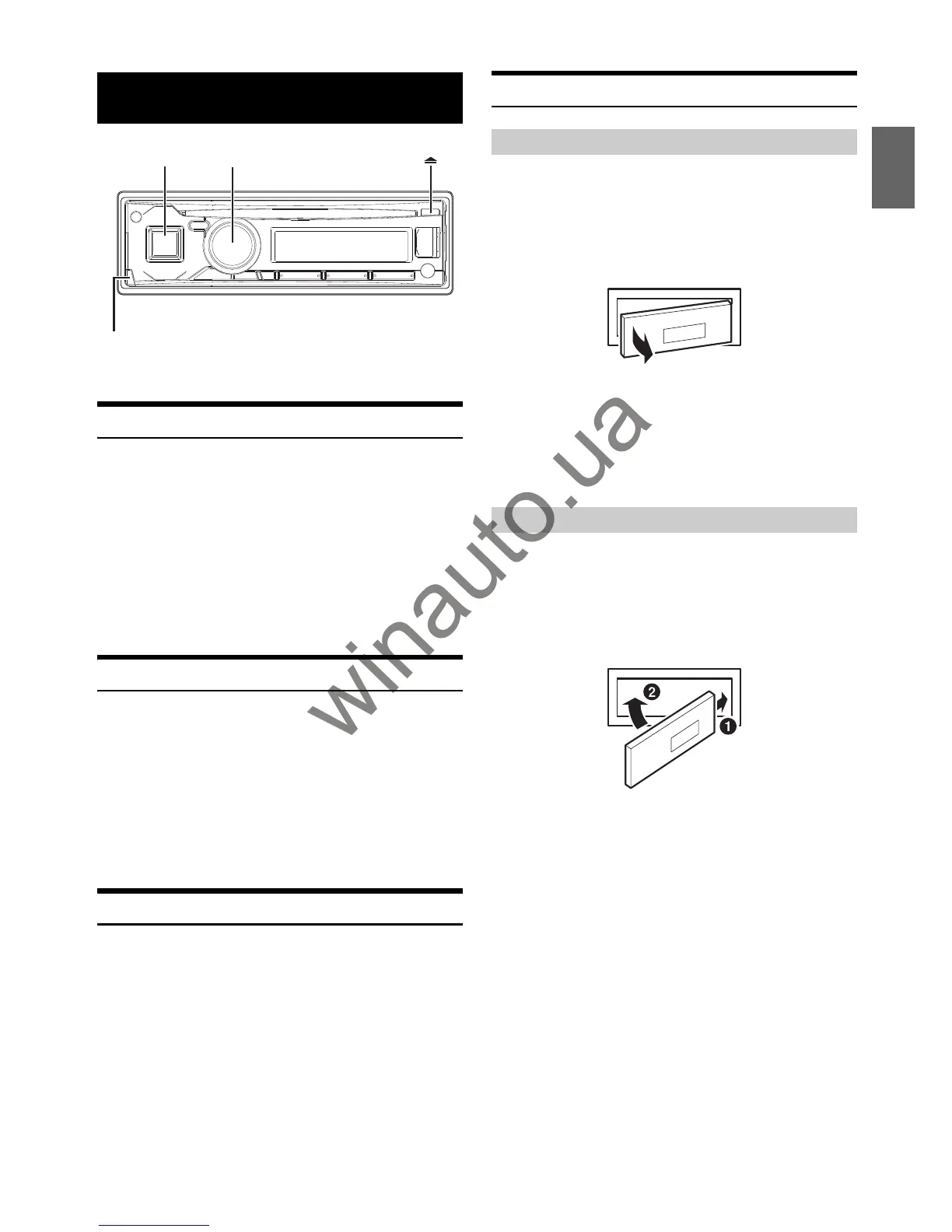

Getting Started
e
SOURCE/

Rotary encoder
Detaching
Attaching
