Alpine CDE-182R Quick Reference Guide

23
01.05CDE182BT-QRG.fm
ALPINE CDE-182R 68-24567Z14-A (ES/IT/SE)
Ignition Key
(Amarillo) / (Giallo) / (Gul)
(Verde/Negro) / (Verde/Nero) / (Grön/Svart)
(Blanco) / (Bianco) / (Vit)
(Blanco/Negro) / (Bianco/Nero) / (Vit/Svart)
(Violeta/Negro) / (Viola/Nero) / (Violett/Svart)
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Rear (CDE-182R only)
Front (CDE-182R only)
(Verde) / (Verde) / (Grön)
Al amplificador / All’amplificatore / Till förstärkare
Amplifier
(Naranja) / (Arancione) / (Orange)
(Azul/Blanco) / (Blu/Bianco) / (Blå/Vit) REMOTE TURN-ON
(Rojo) / (Rosso) / (Röd)
(Negro) / (Nero) / (Svart)
(Azul) / (Blu) / (Blå)
BATTERY
(Gris/Negro) / (Grigio/Nero) / (Grå/Svart)
(Violeta) / (Viola) / (Violett)
FUSE 10A
(Gris) / (Grigio) / (Grå)
Antenna Receptacle
Al cable de iluminación del conjunto de instrumentos /
Al cavo dell’illuminazione della plancia portastrumenti /
Till instrumentklustrets belysningsledning
Amplifier
Subwoofers (CDE-182R only)
DIMMER
IGNITION
GND
POWER ANT
Amplifier
Front (CDE-181 Series/CDE-180 Series only)
Rear or Subwoofers (CDE-181 Series/CDE-180
Series only)
Speakers
A la antena eléctrica / All’antenna automatica / Till motorantenn

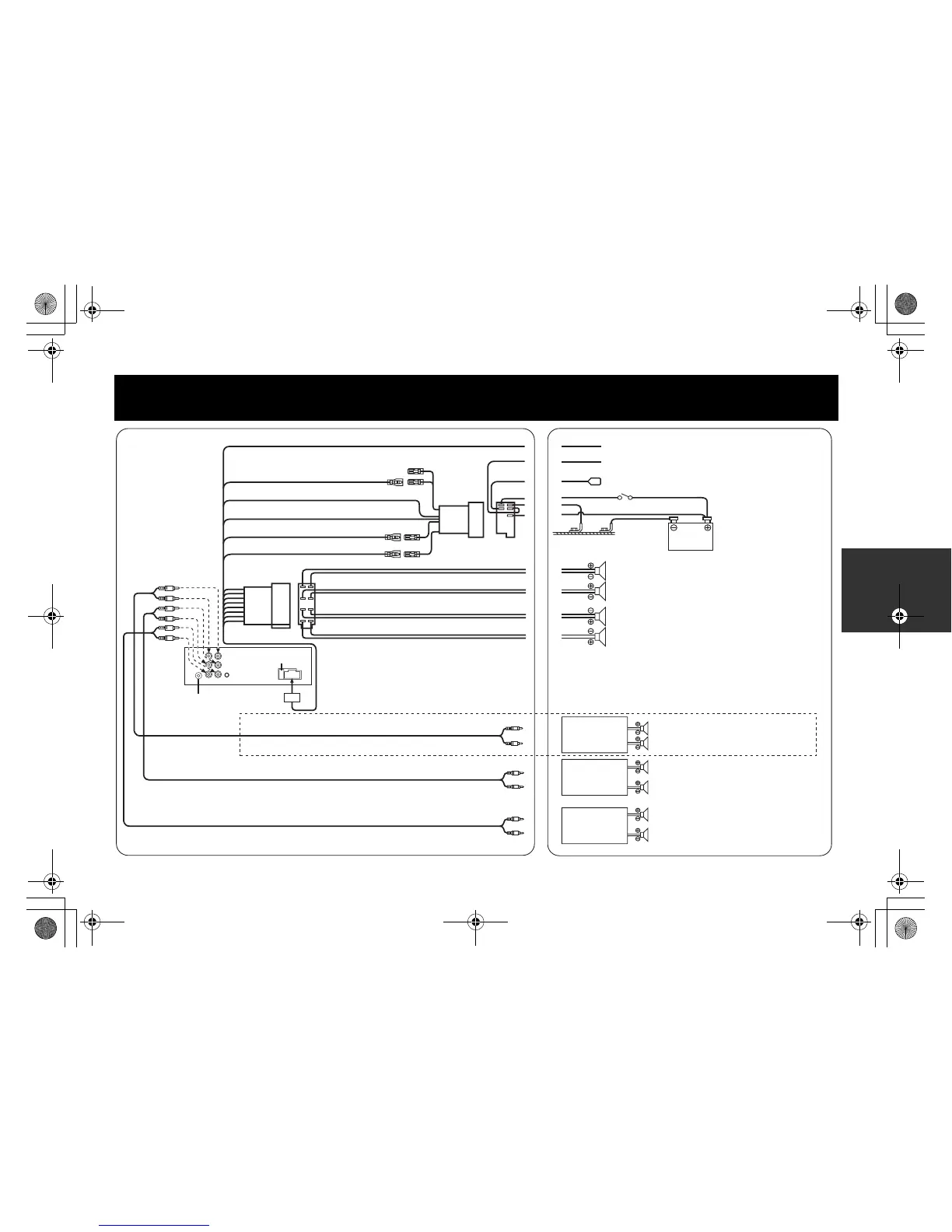

Conexiones / Collegamenti / Anslutningar
