30-EN

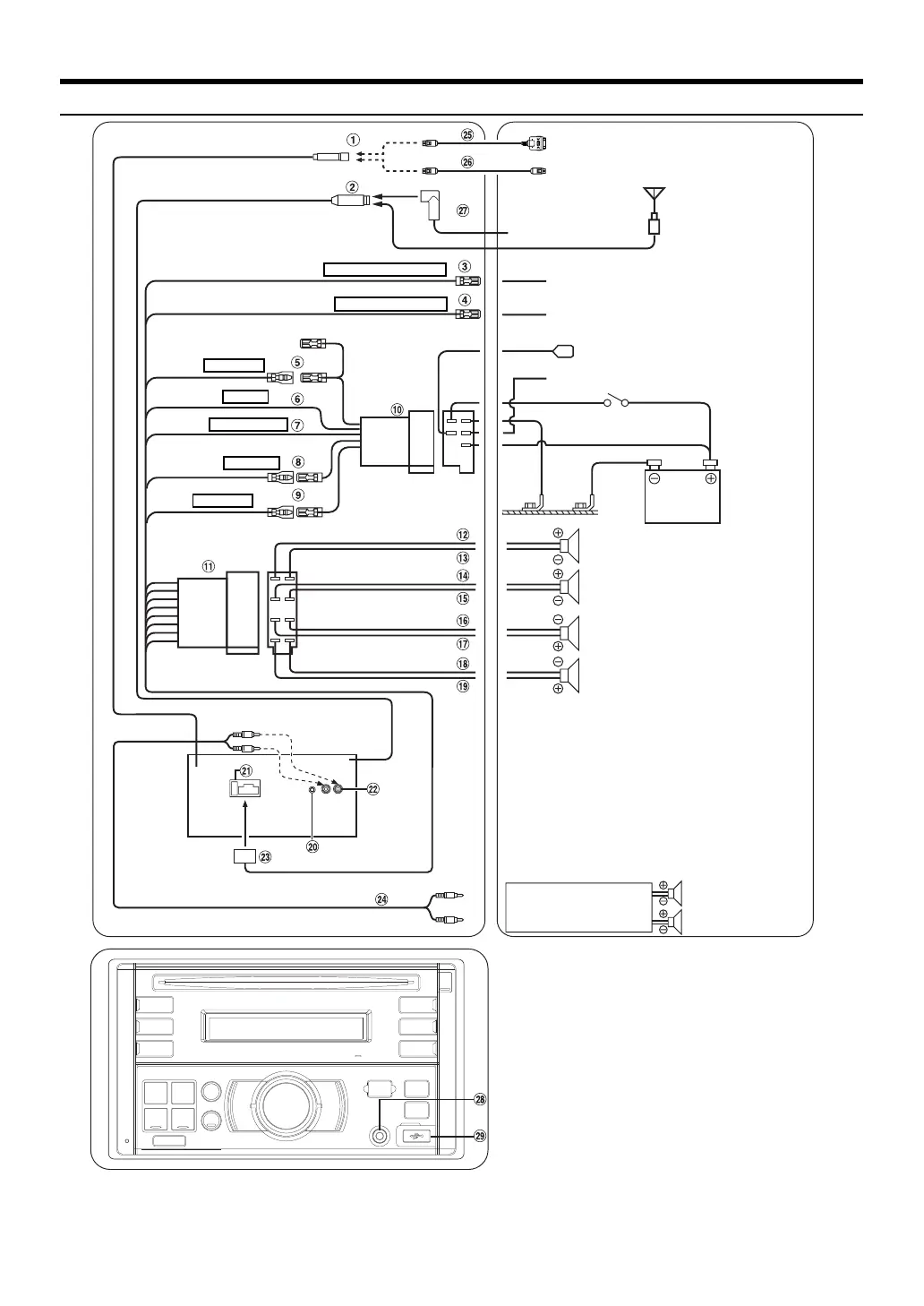

Connections
* When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, see “Subwoofer On and Off” on page 18.
Antenna
(Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
BATTERY
(Green)
(Green/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
JASO Antenna Plug
ISO Antenna Plug
To vehicle phone
To amplifier or equalizer
To the instrument cluster illumination lead
Ignition Key
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
(White)
(Yellow)
To iPhone/iPod (sold separately)
Amplifier
Speakers
Front or Subwoofers
*
To power antenna
(White/Black)
To Bluetooth INTERFACE (KCE-400BT)
(sold separately)
To Next Page
