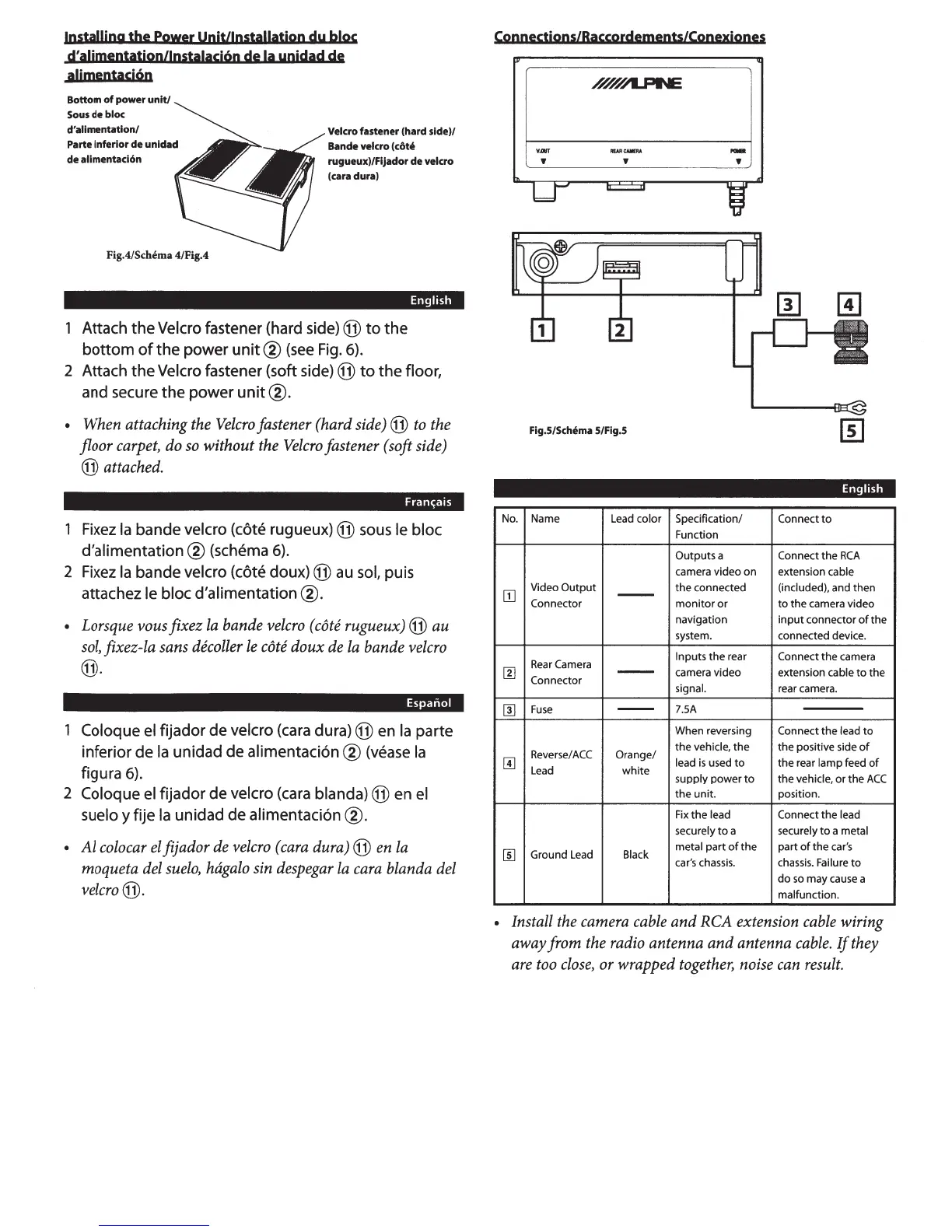

Installing the Power Unjtflnstallatjon dy bloc
d'alimeptatjonflnstalad6n de Ia yqjdad de
alimeptad6p
Bottom of power unit/
Sousdebloc
d'alimentation/
Parte
inferior de unidad
de alimentaci6n
Fig.4/Schema 4/Fig.4
Velcro fastener (hard side)/
Bande velcro (cote
rugueux)/Fijador
de velcro
(cara dura)
English
Attach the Velcro fastener (hard side) @ to the
bottom of the power unit@ (see Fig. 6).
2 Attach
the Velcro fastener (soft side) @ to the floor,
and secure
the power unit@.
• When attaching the Velcro fastener (hard side) @ to the
floor carpet, do so without the Velcro fastener (soft side)
@attached.
Fran~ais
Fixez Ia bande velcro (cote rugueux)@ sous le bloc
d'alimentation@ (schema 6).
2 Fixez Ia bande velcro (cote doux)@ au sol, puis
attachez le bloc d'alimentation
@.
• Lorsque vous fixez la bande velcro (cote rugueux)@ au
sol, fixez-la sans decoller le cote doux de la bande velcro
@.
Espanol
Coloque el fijador de velcro (cara dura)@ en Ia parte
inferior de
Ia unidad de alimentaci6n@ (vease Ia
figura 6).
2 Coloque el fijador de velcro (cara blanda)@ en el
suelo y fije Ia unidad de alimentaci6n @.
• Al colocar el fijador de velcro (cara dura)@ en la
moqueta del suelo, hagalo sin despegar la cara blanda del
velcro @.
Coppectjogs/Raccordemepts/Copexjopes
No.
ITJ
rn
rn
~
00
v.our
y
Fig.S/Schema 5/Fig.S
Name
Lead color
Video
Output
--
Connector
Rear Camera
--
Connector
Fuse
--
Reverse/ ACC
Orange/
Lead
white
Ground Lead
Black
Specification/
Function
Outputs a
camera video
on
the connected
monitor or
navigation
system.
Inputs
the rear
camera video
signal.
?.SA
When reversing
the vehicle, the
lead is used to
supply power to
the unit.
Fix the lead
securely
to a
metal
part of the
car's chassis.
English
Connect to
Connect the RCA
extension cable
(included), and
then
to the camera video
input connector of the
connected device.
Connect
the camera
extension cable
to the
rear camera.
Connect
the lead to
the positive side of
the rear lamp feed of
the vehicle, or the ACC
position.
Connect
the lead
securely
to a metal
part of the car's
chassis. Failure
to
do so may cause a
malfunction.
• Install the camera cable and RCA extension cable wiring
away from the radio antenna and antenna cable. If they
are too close, or wrapped together, noise can result.
