Jeep Wrangler
i207-WRA 20201016v1
12/19

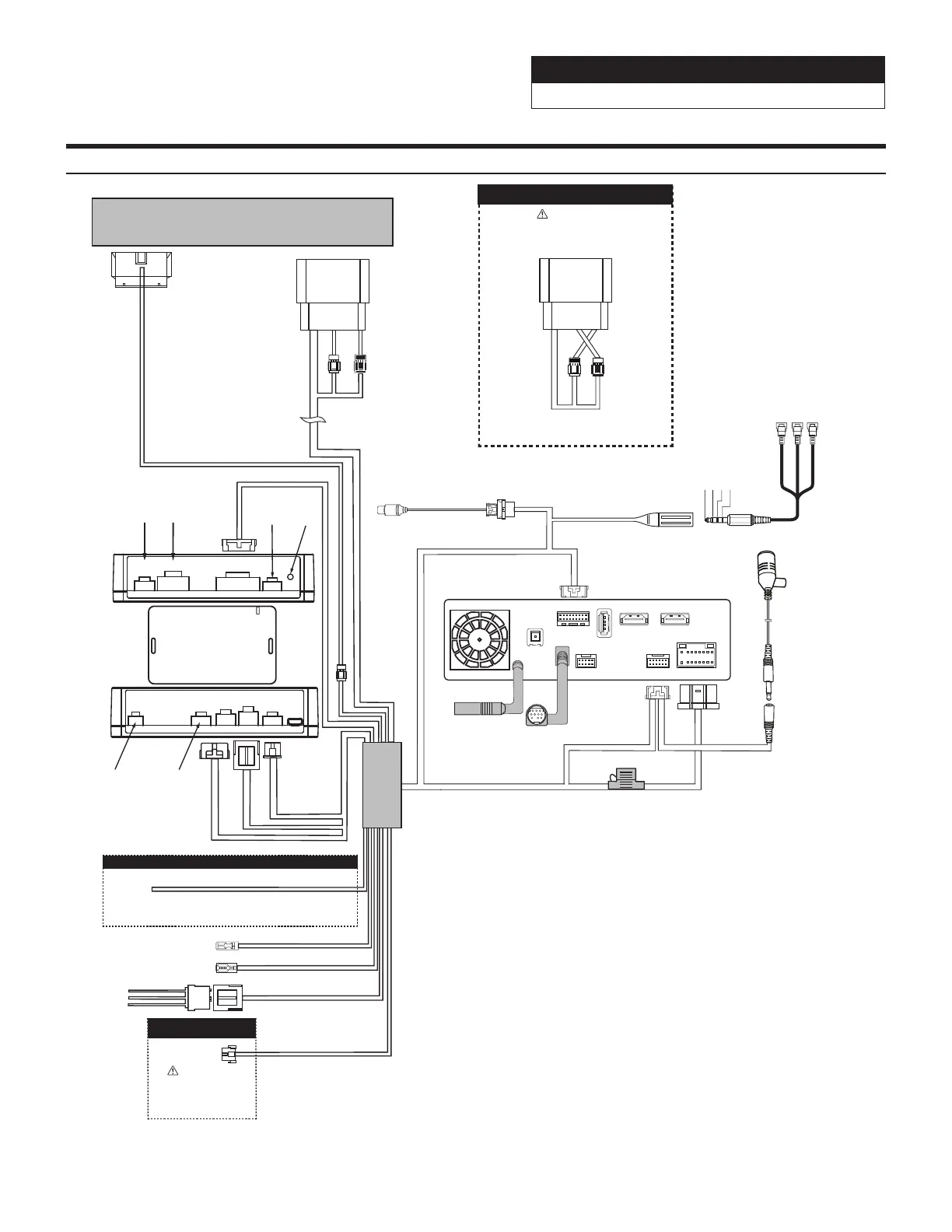

i207-WRA Wiring Diagram
CAN I/F
GPS
USB
W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN HDMI OUT
ANTENNA
Direct Camera Input
Connect to SXM adapter
iLX-207 Source Unit
Power Harness
Front
Rear
Rear
Front
For factory amplied vehicles switch the
speaker connectors, front to rear and
rear to front.
AMPLIFIED VEHICLES
Failure to follow this procedure will
result in no audio from Navigation and
Bluetooth sources.
Microphone
WARNING!
Aux Input
Audio L (White)
Audio R (Red)
Ground
Video (Yellow)
(Yellow)
(Red)
(White)
Aux Input Cable
(Sold Separate 3rd Party Cable)
Audio Only No Video
iDatalink MAESTRO Module
18-pin Black
Connector
10-pin Green
Connector
(Vehicle signals)
3-pin Black
Connector
(Power)
4-pin Black
Connector
(Data)
Blue Power Antenna
Blue/White Amp Turn-on
AUX Power
3-pin Black Connector
Black - Ground
Yellow -12V+
Red - Acc 12V+
Rear View Camera
6-pin Black Connector
White/Gray Manual Transmission Reverse Input
For manual transmission vehicles ONLY. Connect the
White/Gray wire to the White/Gray wire located
on the passenger side kick panel.
Rear View Camera
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
MANUAL TRANSMISSION VEHICLES
18-PinChime10-Pin
Red
Not
Used
Reset
Button
If using
KAC-001
see page 17
3-Pin 4-Pin 3-Pin 4-Pin10-Pin
Blue
Not
Used
*
Not
Used
If using
HCE-TCAM1-WRA
see page 18
Main Harness
Not
Used
Direct Camera Adapter
To Vehicle Connectors
To OBDII Connector
Power/Speaker
16-pin Green Connector
Front
Rear
Rear
Front
Rear
Not
Used
To Next Page
