Alpine i207-WRA - i207-WRA HDMI Usage With An iPhone; i207-WRA HDMI Usage With An Android Phone

Jeep Wrangler
i207-WRA 20201016v1
 13/19

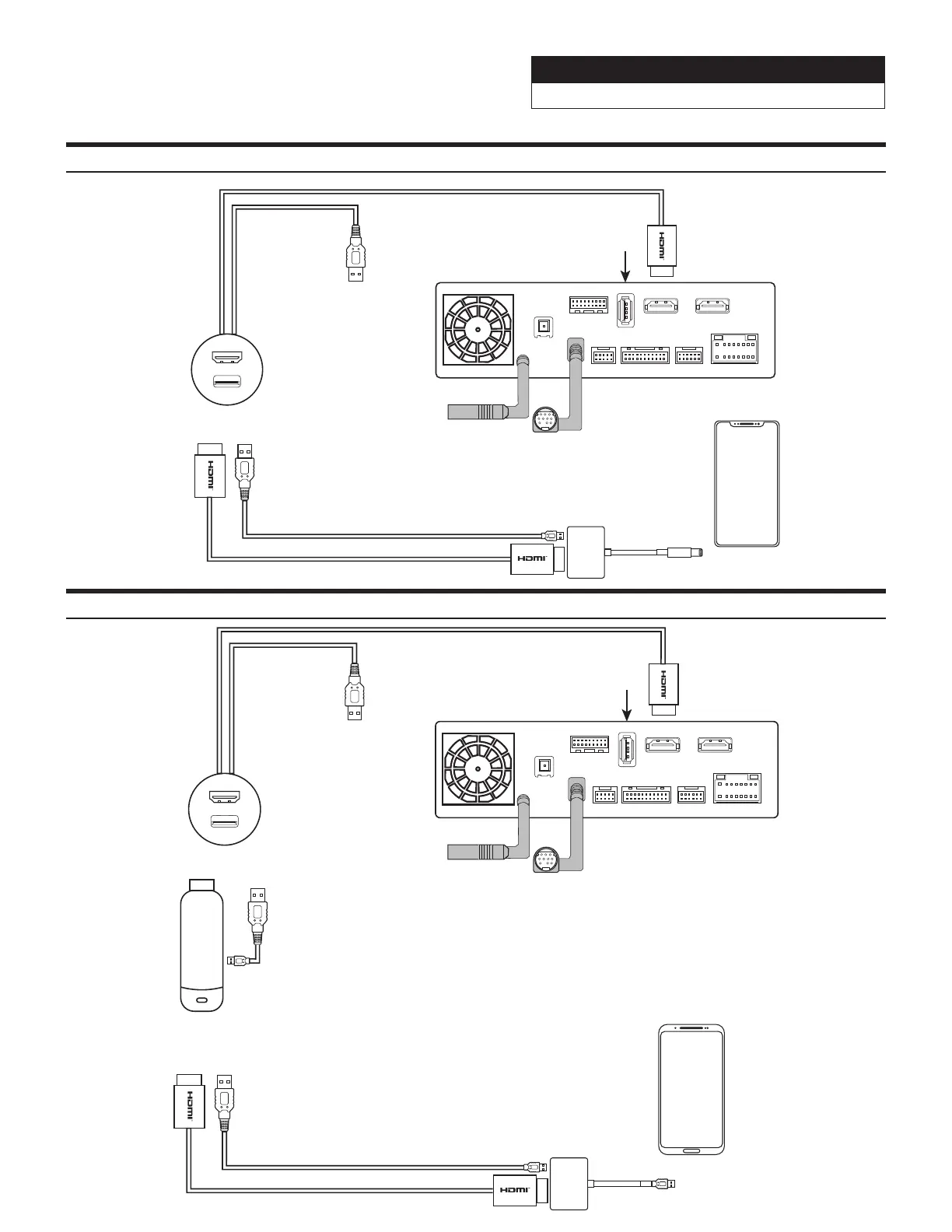

i207-WRA HDMI Usage With An iPhone
Lightning To HDMI
adapter needs to be
purchased from Apple.
Third party adapters may
not work
For Android users most
Android phones do not have
HDMI adapters. The easiest way to
connect is with a Miracast adapter
(for example a Roku Stick
or Amazon Firestick).
Or
iPhone
Android Phone
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
Some Android phones may
have a HDMI adapter. That
would be sold separately by
the phone manufacturer. Third
party adapters will not work.
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
i207-WRA HDMI Usage With An Android Phone
Lightning To HDMI
adapter needs to be
purchased from Apple.
Third party adapters may
not work
For Android users most
Android phones do not have
HDMI adapters. The easiest way to
connect is with a Miracast adapter
(for example a Roku Stick
or Amazon Firestick).
Or
iPhone
Android Phone
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
Some Android phones may
have a HDMI adapter. That
would be sold separately by
the phone manufacturer. Third
party adapters will not work.
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
