67-EN
MIC Input Connector
To microphone (included)
Steering Remote Control Interface Connector
To steering remote control interface.
For details about connections, consult your nearest
Alpine dealer.
SiriusXM Tuner Input Connector
To SiriusXM Tuner (sold separately).
• For more information on how to install the SiriusXM
Connect Vehicle tuner, consult the installation guide
included with the tuner.
AUX/PRE OUT/CAMERA Connector
Power Supply Connector

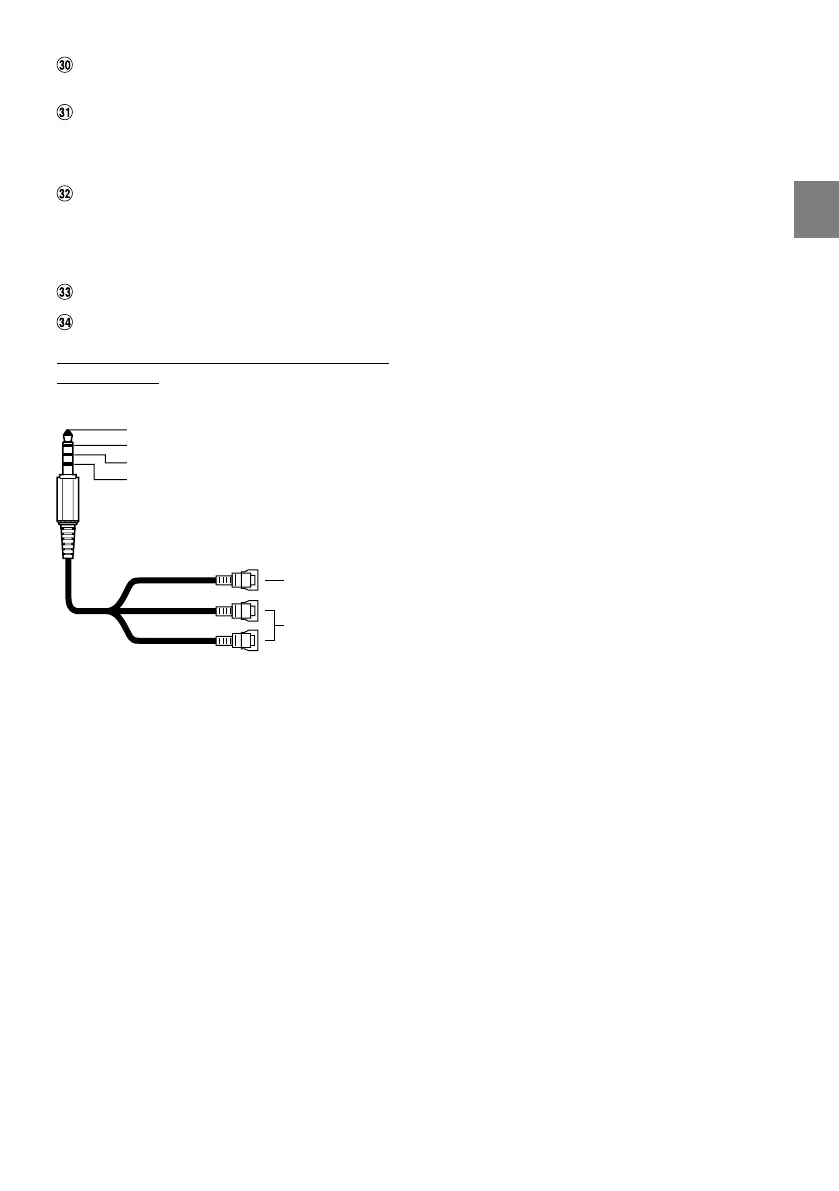

Usable AV/RCA Interface Cable (4-pole mini AV
plug to 3-RCA)
Wiring convention of this system is as follows;
Audio L (White)
Audio R (Red)
Ground
Video (Yellow)
(Yellow)
(Red)
(White)
Video input terminal
Audio input
terminal (R, L)
• Configuration commercially available 4-pole mini AV plugs is
not standardized.
