Jeep Wrangler
i509-WRA-JK 20220404v1
6/22

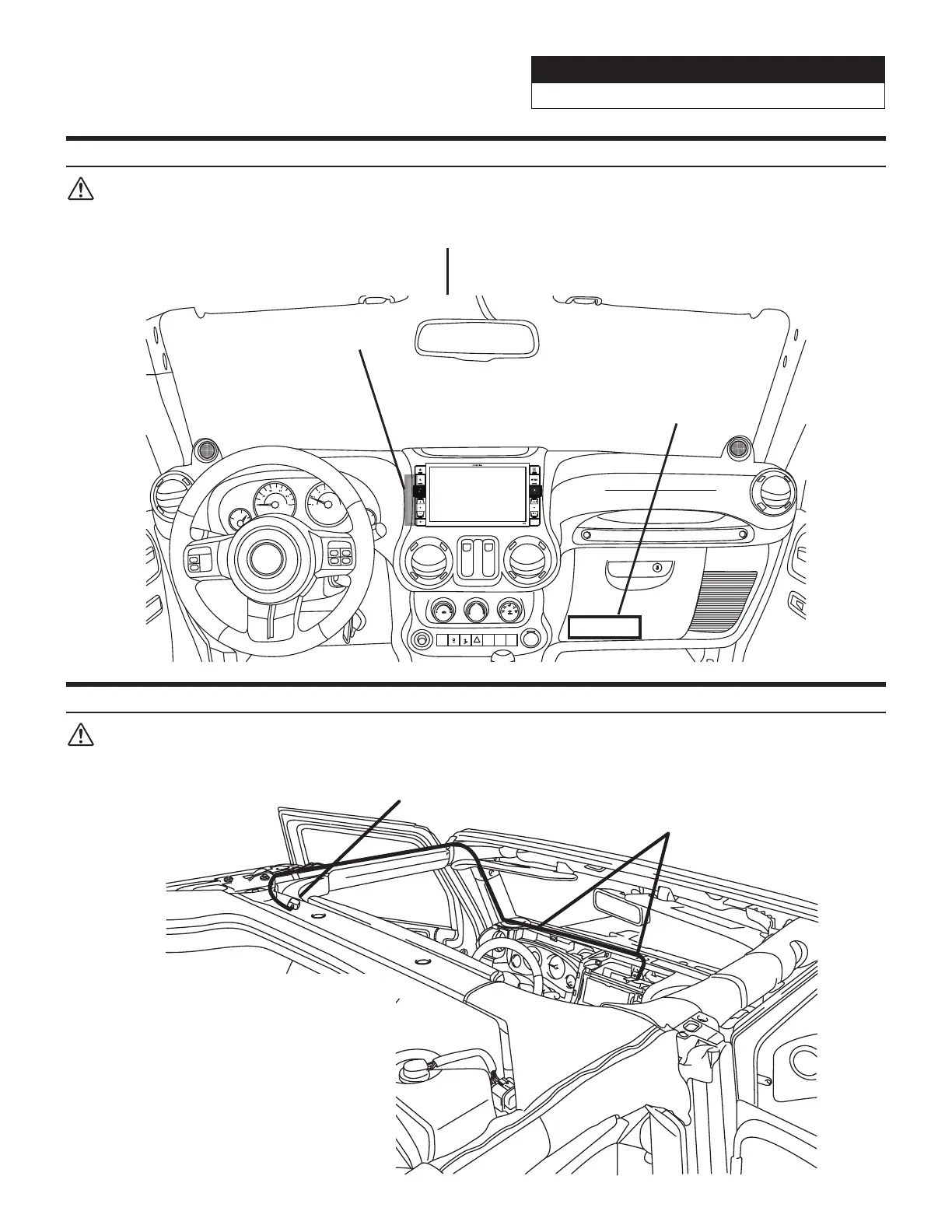

Component Locations
IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor
GPS performance.
Jeep
Jeep SINCE 1941
Add-on Microphone
iDatalink Maestro Module
SiriusXM Tuner
(Sold Separately)
GPS Antenna Installation
IMPORTANT: Follow the GPS antenna installation procedure shown below. Failure to do so will result in poor
GPS performance for CarPlay, Android Auto, and Navigation.
Wire Hook
GPS Antenna
Peel the plastic layer
off from the double
side tape of the GPS
antenna and place the
GPS antenna on top of
the driver side roof
frame. T20 Torx to
remove the visor.
