Alpine iLX-F509 Installation Manual

Jeep Wrangler
i509-WRA-JK 20220404v1
 7/22

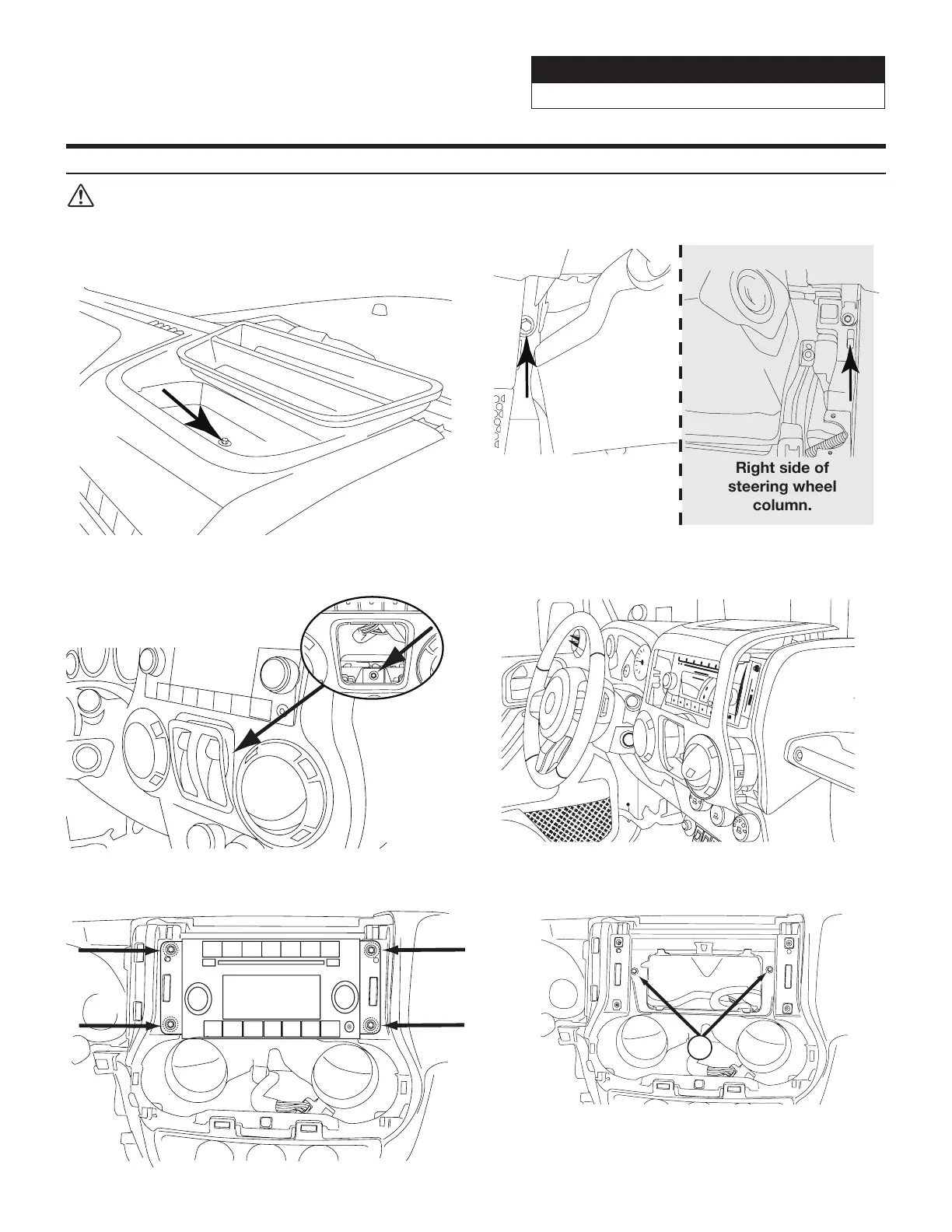

Factory Unit Disassembly Process
DISCONNECT THE BATTERY BEFORE
CONTINUING. FAILURE TO DO SO WILL
DISABLE MANY FEATURES.
1 Remove the rubber cover from the top center
storage area and extract (1) 7mm screw.
3 Remove the window switch pod using a panel
removing tool and extract (1) 7mm screw.
5 Extract (4) 7 mm screws and remove the factory
radio.
2 Remove the knee cover panel and extract (2) 7mm
screws located to the right and left sides of the
steering wheel column.
Right side of
steering wheel
column.
Left side of
steering wheel
column.
4 Remove the dash panel.
6 Extract (2) 7 mm screws from the factory radio
bracket and remove it.
2

Alpine iLX-F509 Specifications

General

Display Size	9-inch
Resolution	1280 x 720
Touchscreen	Yes
Apple CarPlay	Yes
Android Auto	Yes
Bluetooth	Yes
USB Input	Yes
HDMI Input	Yes
Built-in Amplifier	Yes
Power Output	50W x 4
HD Radio	Yes
SiriusXM Ready	Yes
Backup Camera Input	Yes
EQ	13-band parametric EQ
Time Correction	Yes
Steering Wheel Control Compatible	Yes
