50-EN

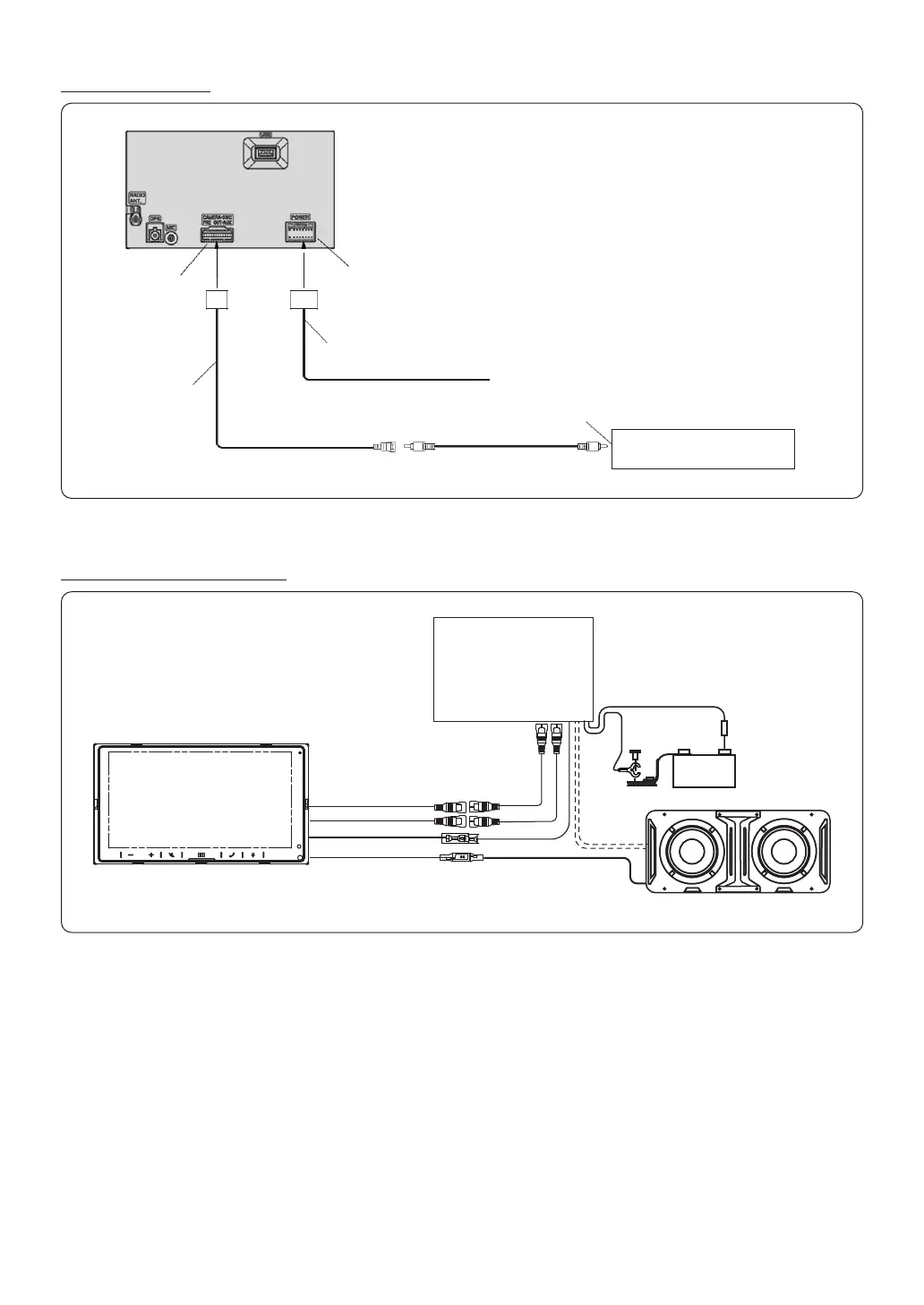

Connection of a camera
CAMERA OUT
Connector
PRE OUT cable
Power Supply Connector
Power cable
Camera with RCA video output
(sold separately)
To Video Output terminal
Connect to the plus side of the car’s reverse lamp.
Reverse
(Orange/White)
REAR VIEW CAMERA
*
CAMERA OUT
Connector
PRE OUT cable
*
RCA Extension Cable (sold separately)
Connection of Lighting Link System
⊕⊖
SUB.W OUTPUT
LIGHTING LINK (BROWN)
AMP REMOTE
Amplier
OPTION
OPTION
Sound input
•
For complete installation and Sub . Enclosure features, please see Prisma Link enclosure manual.
•
When connecting the Lighting Link cable, set the LED Brightness/LED Lighting Speed setting of this unit to 0 (page 24).
To Next Page
