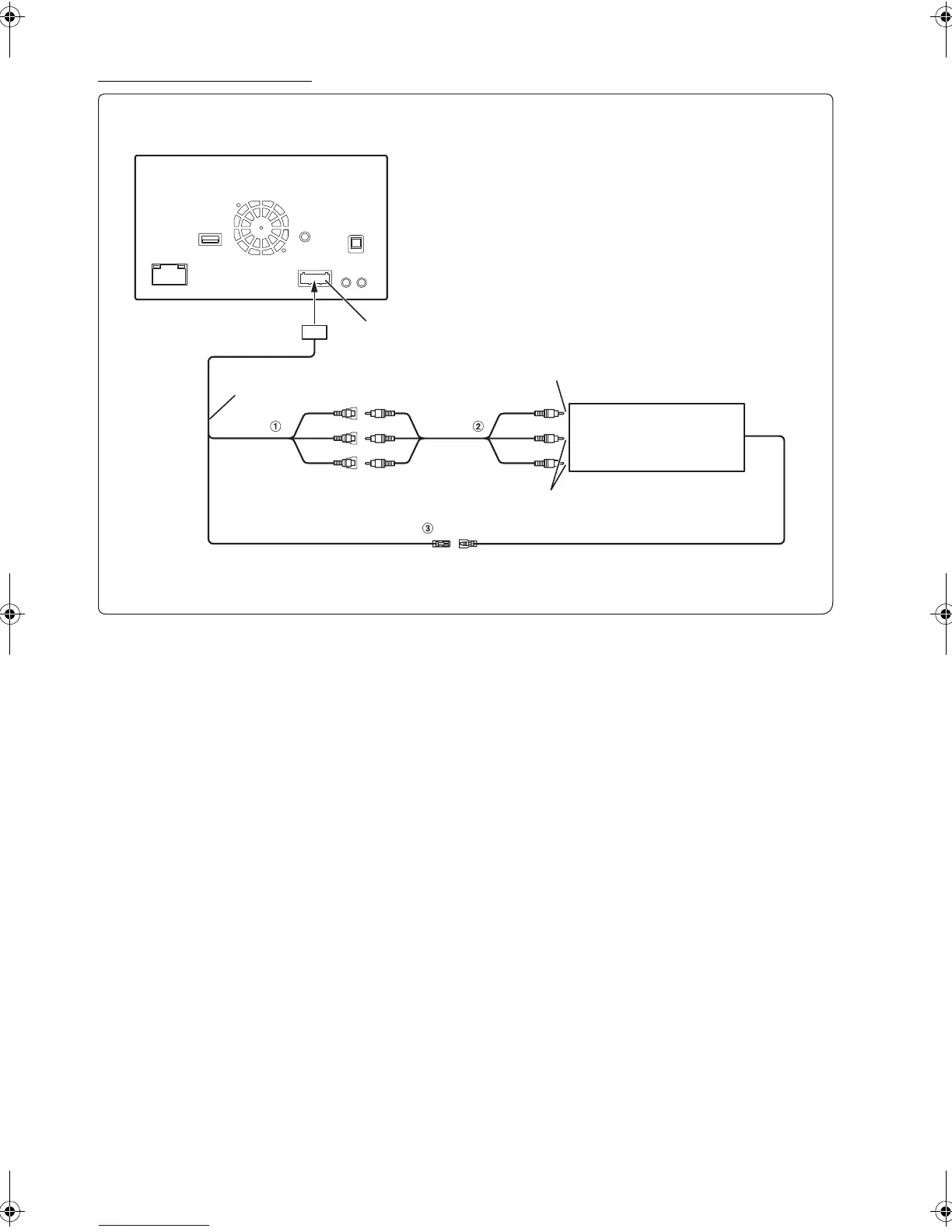

Connection of an External device
1 Video/Audio Input Connectors (AUX INPUT)
YELLOW is for input video, RED is right and WHITE is left
input the audio.
2 RCA Extension Cable (Sold Separately)
3 Remote Control Output Lead (Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
• You can change the name of an external device. Refer to “Setting the AUX Mode” (page 41).
AUX/PRE OUT Connector
AUX/PRE OUT cable
(Yellow)
(Red)
(White)
To Video Output terminal
To Audio Output terminal
DVD Changer (Sold separately)
REMOTE OUT
(Brown)
REMOTE IN
(White/Brown)
